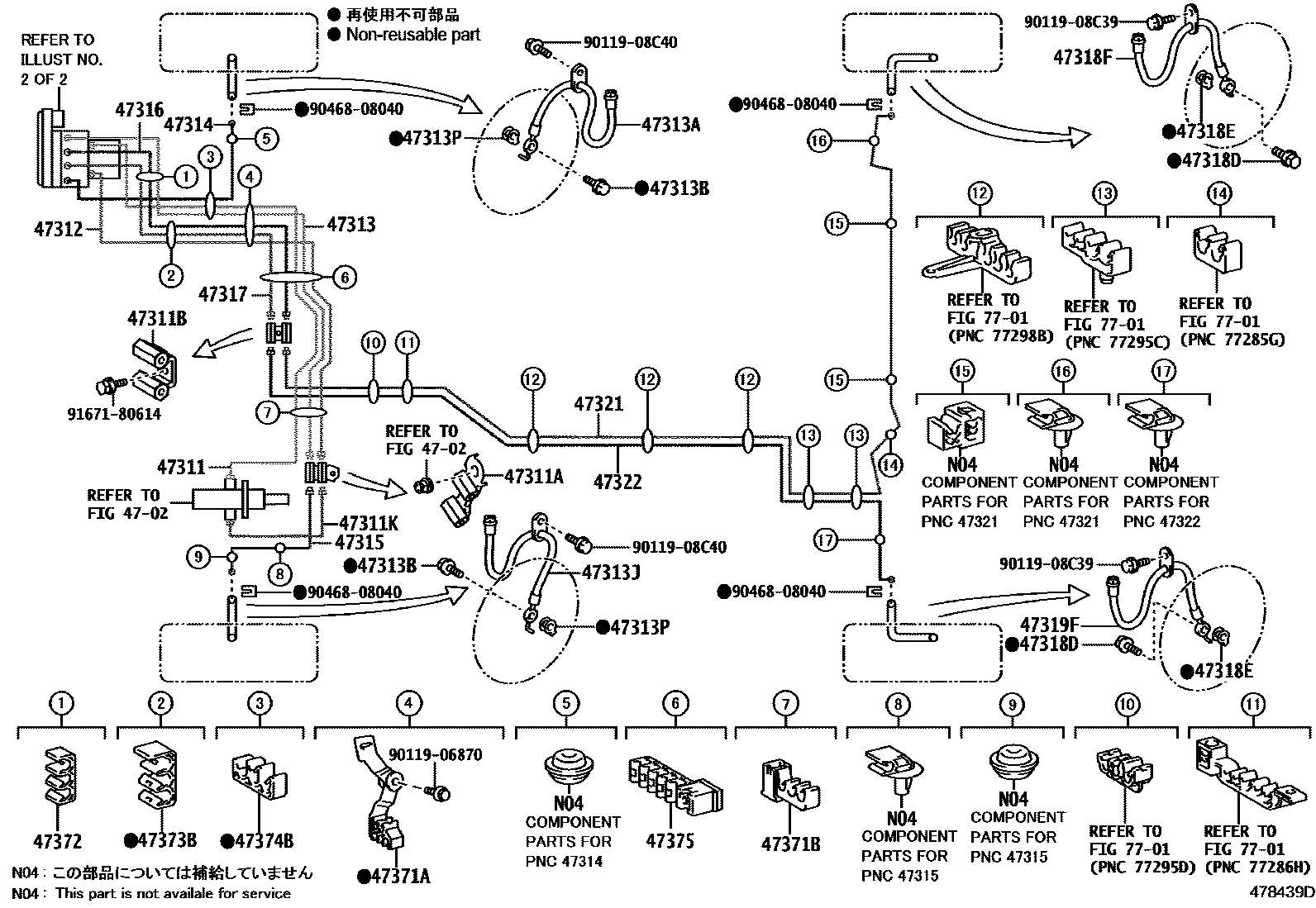

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR 0007 1BRAKE BOOSTER PUMP 0008 1BRAKE BOOSTER PUMP

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-33291iAVV60..RHD201308-201507

main47311-33301iAVV60..CHI201206-201507

main47311-33310iASV60,GSV60..LHD201206-201507

main47311-33320iASV60,GSV60..RHD201308-201507

main47311-33330iASV6#,GSV60..LHD201507

main47311-33340iASV60,GSV60..RHD201507

main47311-33370iAVV60..CHI201507

main47311-33380iAVV60..RHD201507

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-12066iASV60,GSV60..LHD201206-201507

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iASV60,AVV60,GSV60201206-201507

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-33240iASV60,GSV60..LHD201206-201507

47312TUBE, FRONT BRAKE, NO.2

main47312-33250iASV60,GSV60..LHD201206-201507

main47312-33260iASV60,GSV60..RHD201308-201507

main47312-33270iASV6#,GSV60..LHD201507

main47312-33280iASV60,GSV60..RHD201507

47313TUBE, FRONT BRAKE, NO.3

main47313-33250iAVV60..RHD201308-201507

main47313-33260iASV60,GSV60..LHD201206-201507

main47313-33270iASV60,GSV60..RHD201308-201507

main47313-33280iASV6#,GSV60..LHD201507

main47313-33290iASV60,GSV60..RHD201507

main47313-33310iAVV60..RHD201507

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G61iASV60,AVV60,GSV60201206-201507

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iASV60,AVV60,GSV60201206-201507

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G62iASV60,AVV60,GSV60201206-201507

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iASV60,AVV60,GSV60201206-201507

47314TUBE, FRONT BRAKE, NO.4

main47314-33200iAVV60..RHD201308-201507

main47314-33210iAVV60..CHI201206-201507

main47314-33220iASV60,GSV60201206-201507

main47314-33260iAVV60..CHI201507

main47314-33270iAVV60..RHD201507

main47314-33280iASV6#,GSV60201507

47315TUBE, FRONT BRAKE, NO.5

main47315-33240iASV60,GSV60..LHD201206-201507

main47315-33260iASV60,GSV60..RHD201308-201507

main47315-33270iAVV60..RHD201308-201507

main47315-33280iAVV60..CHI201206-201507

main47315-33291iASV6#,GSV60..LHD201507

main47315-33300iASV60,GSV60..RHD201507

main47315-33310iAVV60..CHI201507

main47315-33320iAVV60..RHD201507

47316TUBE, FRONT BRAKE, NO.6

main47316-33330iAVV60..RHD201308-201507

main47316-33340iAVV60..CHI201206-201507

main47316-33350iASV60,GSV60..LHD201206-201507

main47316-33360iASV60,GSV60..RHD201308-201507

main47316-33370iASV6#,GSV60..LHD201507

main47316-33380iASV60,GSV60..RHD201507

main47316-33410iAVV60..CHI201507

main47316-33420iAVV60..RHD201507

47317TUBE, FRONT BRAKE, NO.7

main47317-33320iAVV60..RHD201308-201507

main47317-33330iAVV60..CHI201206-201507

main47317-33340iASV60,GSV60..LHD201206-201507

main47317-33350iASV60,GSV60..RHD201308-201507

main47317-33360iASV6#,GSV60..LHD201507

main47317-33370iASV60,GSV60..RHD201507

main47317-33400iAVV60..CHI201507

main47317-33410iAVV60..RHD201507

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iASV60,AVV60,GSV60201206-201507

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iASV6#,AVV60,GSV60201507

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G63iASV6#,AVV60,GSV60201507

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G64iASV60,AVV60,GSV60201206-201507

47321TUBE, REAR BRAKE, NO.1

main47321-33190iASV60,AVV60,GSV60201206-201507

main47321-33191iASV60,AVV60,GSV60201507

main47321-33210iASV61201507

47322TUBE, REAR BRAKE, NO.2

main47322-33160iASV60,AVV60,GSV60201206-201507

main47322-33161iASV60,AVV60,GSV60201507

main47322-33180iASV61201507

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33280iASV60,GSV60201206-201507

main90464-00876iAVV60..RHD201507

main90464-00880iAVV60..CHI201206-201507

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D50iASV60,GSV60..LHD201206-201507

47372CLAMP, BRAKE TUBE, NO.2

main90464-00857iASV6#,GSV60201507

main90949-01540iAVV60..CHI201206-201507

main90949-01D87iAVV60..RHD201507

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00894iASV6#,GSV60201507

main90949-01D16iAVV60..CHI201206-201507

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00919iASV60,GSV60201206-201507

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D08iASV60,GSV60..RHD201308-201507

main90949-01D51iASV6#,GSV60..LHD201507

7701

9011906870

main90119-06870

9011908C39

main90119-08C39

9011908C40

main90119-08C40

9046808040

main90468-08040

9167180614

main91671-80614

33 parts on this diagram · 8 diagrams in section
