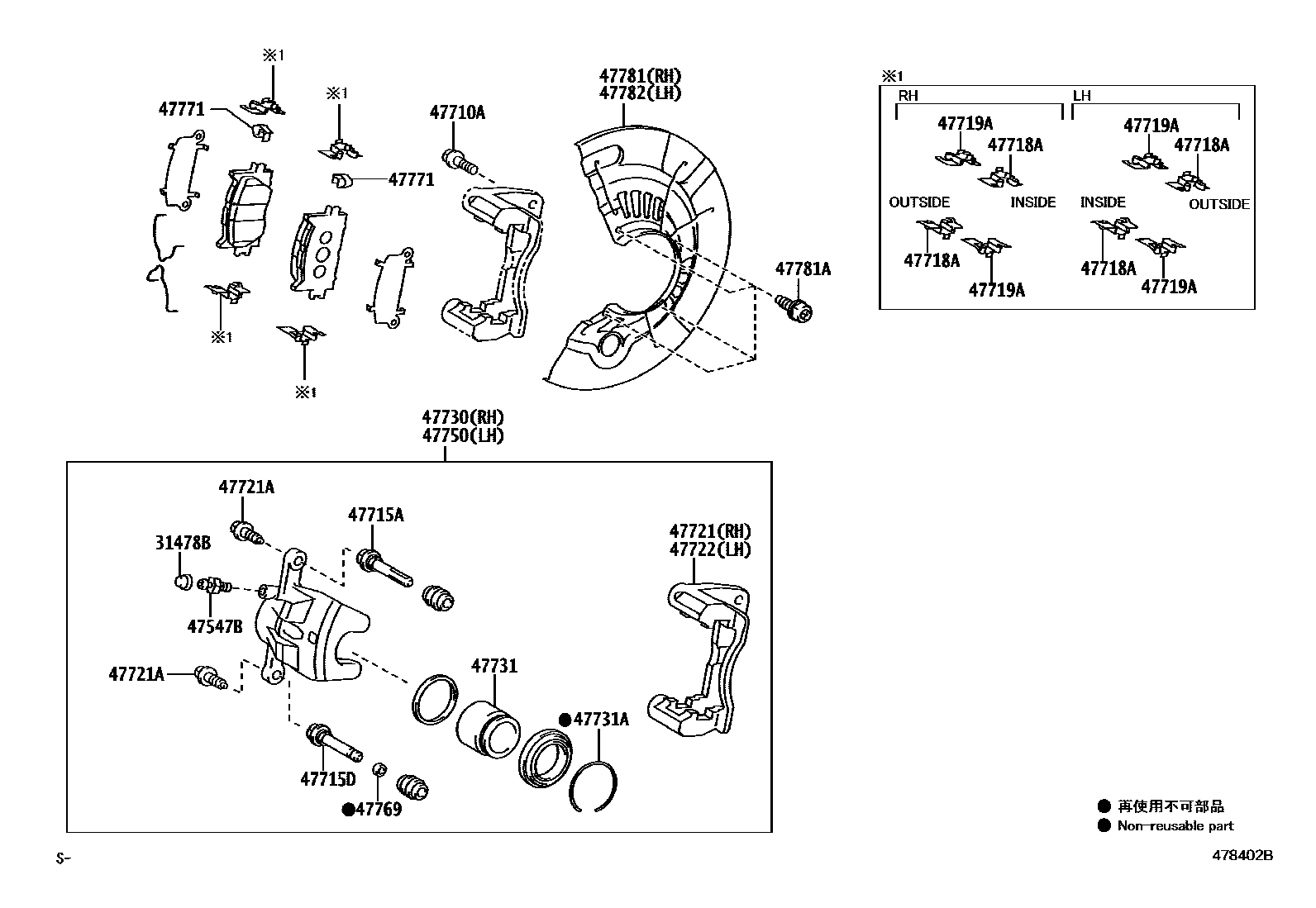

FRONT DISC BRAKE CALIPER & DUST COVER

0001 11-POT CALIPER 0002 12-POT CALIPER 0003 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iASV60,AVV60,GSV60201206-201507

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iGSV60..GCC201206-201507

main47547-20010iGSV60..ARL;ASV6#,AVV60201206-201507

PHILIPPINE SPEC

main47547-20010iGSV60..ARL;ASV6#,AVV60201507

VIETNAM SPEC

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iASV6#,AVV60,GSV60201206-201507

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-33361iGSV60..GCC201206-201507

PHILIPPINE SPEC

main47714-33361iGSV60..ARL;ASV6#,AVV60201507

VIETNAM SPEC

main47714-48150iGSV60..GCC201206-201507

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340iASV60,AVV60;GSV60..ARL,CHI201206-201507

PHILIPPINE SPEC

main47715-33340iGSV60..GCC201507

VIETNAM SPEC

main47715-48150iGSV60..GCC201206-201507

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-33340iGSV60..GCC201206-201507

PHILIPPINE SPEC

main47718-33340iGSV60..ARL;ASV6#,AVV60201507

VIETNAM SPEC

main47718-48150iGSV60..GCC201206-201507

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-33340iGSV60..GCC201206-201507

PHILIPPINE SPEC

main47719-33340iGSV60..GCC201507

VIETNAM SPEC

main47719-48150iGSV60..GCC201206-201507

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33361iGSV60..GCC201206-201507

PHILIPPINE SPEC

main47721-33361iGSV60..ARL;ASV6#,AVV60201507

VIETNAM SPEC

main47721-48150iGSV60..GCC201206-201507

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iGSV60..GCC201206-201507

*8-1.00PX23-12.5

main90105-08164iGSV60..ARL;ASV6#,AVV60201206-201507

*8-1.00PX23-15

main90105-08164iGSV60..ARL;ASV6#,AVV60201206-201507

*8-1.00PX23-15,PHILIPPINE SPEC

main90105-08164iGSV60..ARL;ASV6#,AVV60201507

*8-1.00PX23-15,VIETNAM SPEC

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33361iGSV60..GCC201206-201507

PHILIPPINE SPEC

main47722-33361iGSV60..GCC201507

VIETNAM SPEC

main47722-48140iGSV60..GCC201206-201507

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33361iGSV60..ARL;ASV6#,AVV60201206-201507

PHILIPPINE SPEC

main47730-33361iGSV60..ARL;ASV6#,AVV60201507

VIETNAM SPEC

main47730-48150iGSV60..GCC201206-201507

47731PISTON, FRONT DISC BRAKE

main47731-33340iGSV60..GCC201507

VIETNAM SPEC

main47731-33340iASV60,AVV60;GSV60..ARL,CHI201206-201507

PHILIPPINE SPEC

main47731-48150iGSV60..GCC201206-201507

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iGSV60..GCC201206-201507

PHILIPPINE SPEC

main90522-76002iGSV60..ARL;ASV6#,AVV60201507

VIETNAM SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33361iGSV60..GCC201206-201507

PHILIPPINE SPEC

main47750-33361iGSV60..ARL;ASV6#,AVV60201507

VIETNAM SPEC

main47750-48110iGSV60..GCC201206-201507

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iGSV60..GCC201206-201507

main47769-50010iGSV60..GCC201507

VIETNAM SPEC

main47769-50010iASV60,AVV60;GSV60..ARL,CHI201206-201507

PHILIPPINE SPEC

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iGSV60..GCC201206-201507

main47771-53060iGSV60..GCC201206-201507

PHILIPPINE SPEC

main47771-53060iGSV60..ARL;ASV6#,AVV60201507

VIETNAM SPEC

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06130iASV60,AVV60,GSV60201206-201507

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iASV6#,AVV60,GSV60201206-201507

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06130iASV60,AVV60,GSV60201206-201507

19 parts on this diagram · 3 diagrams in section
