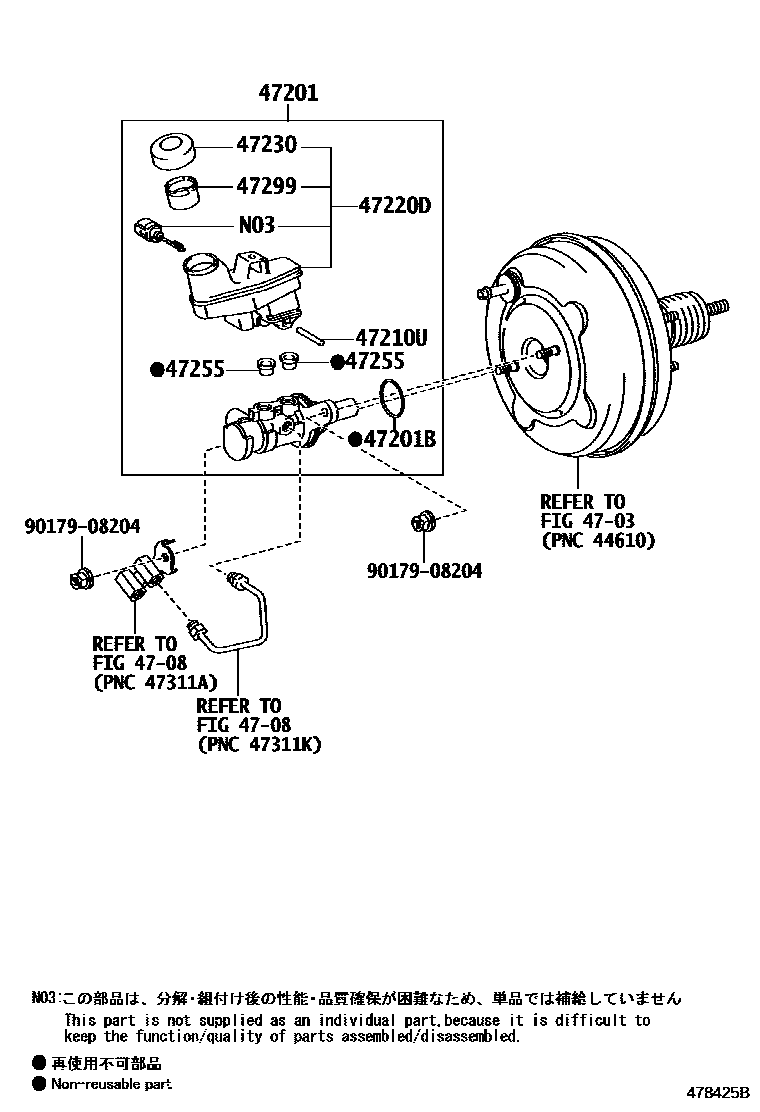

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33552iASV60,GSV60..RHD201308-201601

sub47201-33553

main47201-33553iASV60,GSV60..RHD201602

main47201-33620iASV60,GSV60201206-201304

sub47201-33621

main47201-33621iASV6#,GSV60..LHD201305-201601

sub47201-33622

main47201-33622iASV6#,GSV60..LHD201602

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iASV60,GSV60201206-201507

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iASV6#,GSV60201206-201507

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-33120iAVV60..CHI201206-201507

main47220-33231iASV60,GSV60..RHD201308-201507

main47220-33260iAVV60..RHD201308-201507

main47220-33300iASV60,GSV60..LHD201206-201507

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAVV60201206-201507

main47230-33071iASV60,GSV60201206-201411

sub47230-33072

main47230-33072iASV60,GSV60201411-201507

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iASV60,GSV60201206-201507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iASV60,GSV60..LHD201206-201507

9017908204

main90179-08204

10 parts on this diagram · 4 diagrams in section
