E
EPC Data

DISC WHEEL & WHEEL CAP

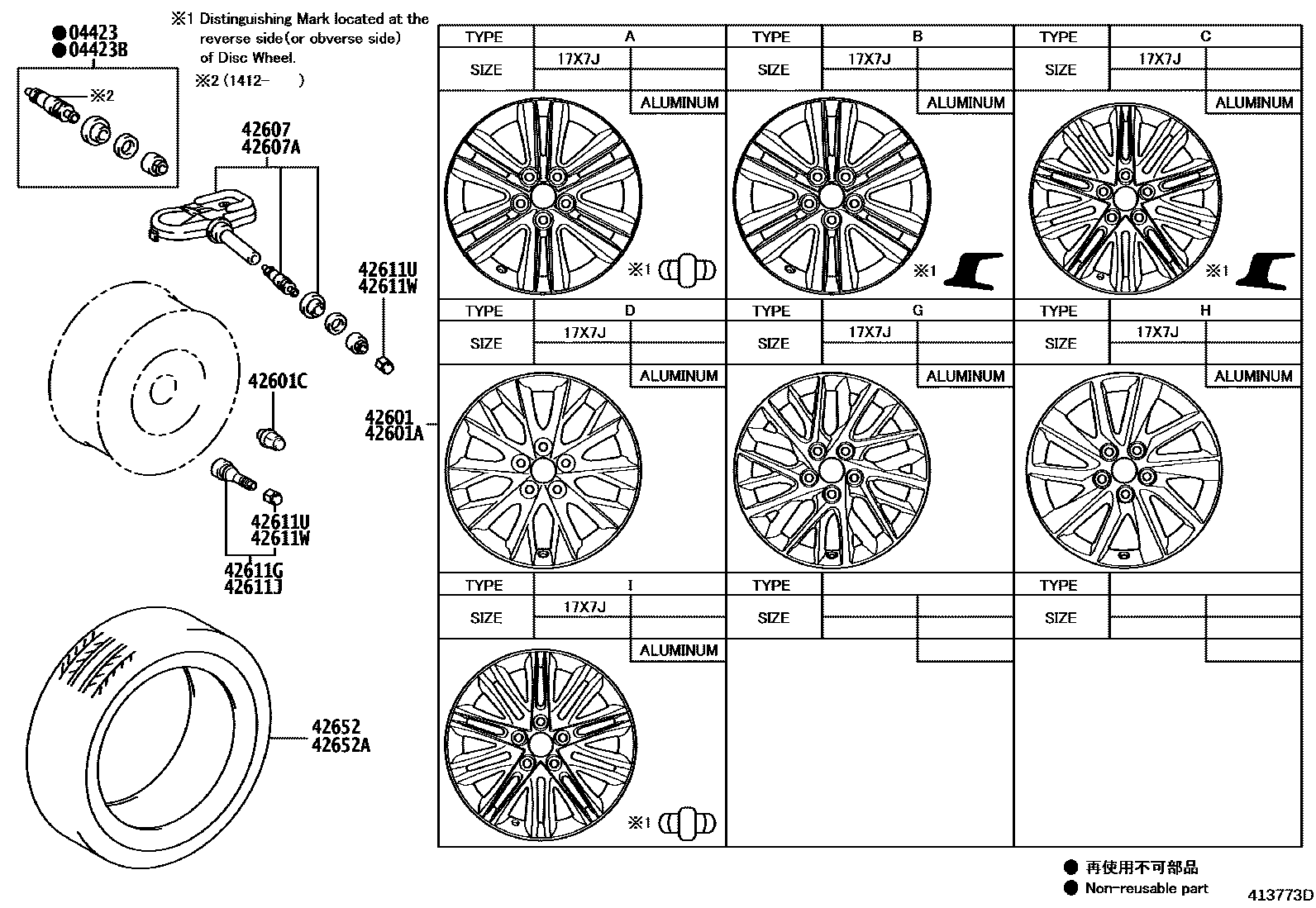

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i201206-201412
sub04423-33060
main04423-33060i201412-201507
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i201206-201412
sub04423-33060
main04423-33060i201412-201507
42601WHEEL, DISC
main42611-33870i201708
17X7J, #,SPECIAL EDITION,TYPE G:REFER ILLUST.
main42611-33870i201708
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33870i201708
17X7J, #,VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFERILLUST.
main42611-33870i201708
17X7J, #,PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33880i201206-201402
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201206-201402
17X7J, #,TAIWAN SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33881i201403-201507
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,TAIWAN SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33890i201206-201402
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33891i201403-201507
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33892
main42611-33A00i201206-201407
17X7J, #,TAIWAN SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201206-201407
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A01i201408-201507
17X7J, #,TAIWAN SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A10i201206-201407
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A11
main42611-33A11i201408-201507
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A12
main42611-33A20i201206-201402
17X7J, #,TAIWAN SPEC,TYPE D:REFER ILLUST.
sub42611-33A21
main42611-33A20i201308-201402
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A21
main42611-33A21i201403-201507
17X7J, #,TAIWAN SPEC,TYPE D:REFER ILLUST.
sub42611-33A22
main42611-33A21i201403-201507
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A22
main42611-33A30i201206-201402
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A31
main42611-33A31i201403-201507
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A32
main42611-33A80i201411-201507
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM GENERAL COUNTRIES,TYPE C:REFER ILLUST.
sub42611-33A81
main42611-33B00i201507-201604
17X7J, #,PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,MALAYSIA SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,SINGAPORE SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,INDONESIA SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,BRUNEI SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,MACAU SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B01i201605
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,MALAYSIA SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,SINGAPORE SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,INDONESIA SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,BRUNEI SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,MACAU SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605-201608
17X7J, #,TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B10i201507-201604
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B11
main42611-33B11i201605
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B40i201507-201605
17X7J, #,TAIWAN SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B41i201606
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606-201608
17X7J, #,TAIWAN SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B50i201507-201605
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B51
main42611-33B51i201606
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B52
main42611-33B60i201507-201609
17X7J, #,TYPE H:REFER ILLUST.
sub42611-33B61
main42611-33B60i201507-201609
17X7J, #,TAIWAN SPEC,TYPE H:REFER ILLUST.
sub42611-33B61
main42611-33B61i201610
17X7J, #,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B61i201610
17X7J, #,TAIWAN SPEC,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B61i201608-201610
17X7J, #,INDIA SPEC,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B70i201507-201609
17X7J, #,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B71i201610
17X7J, #,TYPE H:REFER ILLUST.
main42611-33D40i201608
17X7J, #,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,TAIWAN SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608-201610
17X7J, #,PHILIPPINE SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608-201610
17X7J, #,VIETNAM SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D50i201608
17X7J, #,TYPE I:REFER ILLUST.
sub42611-33B52
main4261A-33080i201308-201405
17X7J, #,BRUNEI SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201308-201405
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201308-201405
17X7J, #,MALAYSIA SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201308-201405
17X7J, #,SINGAPORE SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201308-201405
17X7J, #,INDONESIA SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201206-201405
17X7J, #,D PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201206-201405
17X7J, #,TAIWAN SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201206-201405
17X7J, #,TAIWAN SPEC&H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201307-201405
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM(HIGHGROSS PAINT),TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33081i201406-201507
17X7J, #,MALAYSIA SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,TAIWAN SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,TAIWAN SPEC&H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,D PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM(HIGHGROSS PAINT),TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,SINGAPORE SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,INDONESIA SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,BRUNEI SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201408-201507
17X7J, #,MACAU SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33090i201206-201402
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33090i201206-201402
17X7J, #,H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33091i201403-201507
17X7J, #,H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33091i201403-201507
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
42601AWHEEL, DISC (FOR SPARE)
main42611-33870i201708
17X7J, #,VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFERILLUST.
main42611-33870i201708
17X7J, #,PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33870i201708
17X7J, #,SPECIAL EDITION,TYPE G:REFER ILLUST.
main42611-33870i201708
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33880i201206-201402
17X7J, #,TAIWAN SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33880i201206-201402
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33881i201403-201507
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,TAIWAN SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33890i201206-201402
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33891i201403-201507
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33892
main42611-33A00i201206-201407
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201206-201407
17X7J, #,TAIWAN SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A01i201408-201507
17X7J, #,TAIWAN SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A01i201408-201507
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A10i201206-201407
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A11
main42611-33A11i201408-201507
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A12
main42611-33A20i201308-201402
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A21
main42611-33A20i201206-201402
17X7J, #,TAIWAN SPEC,TYPE D:REFER ILLUST.
sub42611-33A21
main42611-33A21i201403-201507
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A22
main42611-33A21i201403-201507
17X7J, #,TAIWAN SPEC,TYPE D:REFER ILLUST.
sub42611-33A22
main42611-33A30i201206-201402
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A31
main42611-33A31i201403-201507
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A32
main42611-33A80i201411-201507
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM GENERAL COUNTRIES,TYPE C:REFER ILLUST.
sub42611-33A81
main42611-33B00i201507-201604
17X7J, #,PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,MALAYSIA SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,MACAU SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,BRUNEI SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,INDONESIA SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,SINGAPORE SPEC&D PACKAGE,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B01i201605
17X7J, #,SINGAPORE SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605-201608
17X7J, #,TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,MALAYSIA SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,INDONESIA SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,BRUNEI SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,MACAU SPEC&D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,D PACKAGE,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B10i201507-201604
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B11
main42611-33B11i201605
17X7J, #,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B40i201507-201605
17X7J, #,TAIWAN SPEC,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B40i201507-201605
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B41i201606-201608
17X7J, #,TAIWAN SPEC,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B41i201606
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B50i201507-201605
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B51
main42611-33B51i201606
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B52
main42611-33B60i201507-201609
17X7J, #,TAIWAN SPEC,TYPE H:REFER ILLUST.
sub42611-33B61
main42611-33B60i201507-201609
17X7J, #,TYPE H:REFER ILLUST.
sub42611-33B61
main42611-33B61i201610
17X7J, #,TAIWAN SPEC,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B61i201610
17X7J, #,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B61i201608-201610
17X7J, #,INDIA SPEC,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B70i201507-201609
17X7J, #,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B71i201610
17X7J, #,TYPE H:REFER ILLUST.
main42611-33D40i201608-201610
17X7J, #,VIETNAM SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608-201610
17X7J, #,PHILIPPINE SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D40i201608
17X7J, #,TAIWAN SPEC,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D50i201608
17X7J, #,TYPE I:REFER ILLUST.
sub42611-33B52
main4261A-33080i201308-201405
17X7J, #,SINGAPORE SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201308-201405
17X7J, #,MALAYSIA SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201308-201405
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201308-201405
17X7J, #,BRUNEI SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201308-201405
17X7J, #,INDONESIA SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201206-201405
17X7J, #,D PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201206-201405
17X7J, #,TAIWAN SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201206-201405
17X7J, #,TAIWAN SPEC&H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201307-201405
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM(HIGHGROSS PAINT),TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33081i201406-201507
17X7J, #,SINGAPORE SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,INDONESIA SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,BRUNEI SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,TAIWAN SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,TAIWAN SPEC&H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,D PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM(HIGHGROSS PAINT),TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,MALAYSIA SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201408-201507
17X7J, #,MACAU SPEC&G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33090i201206-201402
17X7J, #,H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33090i201206-201402
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33091i201403-201507
17X7J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33091i201403-201507
17X7J, #,H PACKAGE,TYPE C:REFER ILLUST.
sub4261A-33092
42601CNUT, HUB (FOR AXLE)
main90942-01033i201206-201507
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-30060i201507-201608
TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201206-201608
TAIWAN SPEC
main42607-30060i201206-201507
TAIWAN SPEC&G PACKAGE
main42607-30060i201206-201507
TAIWAN SPEC&H PACKAGE
main42607-30060i201308-201507
main42607-30070i201308-201404
SINGAPORE SPEC&G PACKAGE
sub42607-30071
main42607-30070i201308-201404
SINGAPORE SPEC
sub42607-30071
main42607-30070i201308-201404
MALAYSIA SPEC&G PACKAGE
sub42607-30071
main42607-30070i201308-201404
MALAYSIA SPEC
sub42607-30071
main42607-30070i201206-201404
sub42607-30071
main42607-30071i201507
SINGAPORE SPEC&D PACKAGE
main42607-30071i201405-201507
MALAYSIA SPEC
main42607-30071i201507
MALAYSIA SPEC&D PACKAGE
main42607-30071i201405-201507
SINGAPORE SPEC
main42607-30071i201405-201507
MALAYSIA SPEC&G PACKAGE
main42607-30071i201405-201507
SINGAPORE SPEC&G PACKAGE
main42607-30071i201608
INDIA SPEC
main42607-30100i201206-201507
sub42607-30060
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-30060i201507-201608
TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42607-30060i201206-201608
TAIWAN SPEC
main42607-30060i201308-201507
main42607-30060i201206-201507
TAIWAN SPEC&H PACKAGE
main42607-30060i201206-201507
TAIWAN SPEC&G PACKAGE
main42607-30070i201308-201404
MALAYSIA SPEC
sub42607-30071
main42607-30070i201206-201404
sub42607-30071
main42607-30070i201308-201404
MALAYSIA SPEC&G PACKAGE
sub42607-30071
main42607-30070i201308-201404
SINGAPORE SPEC
sub42607-30071
main42607-30070i201308-201404
SINGAPORE SPEC&G PACKAGE
sub42607-30071
main42607-30071i201405-201507
SINGAPORE SPEC&G PACKAGE
main42607-30071i201405-201507
MALAYSIA SPEC&G PACKAGE
main42607-30071i201405-201507
SINGAPORE SPEC
main42607-30071i201405-201507
MALAYSIA SPEC
main42607-30071i201507
MALAYSIA SPEC&D PACKAGE
main42607-30071i201507
SINGAPORE SPEC&D PACKAGE
main42607-30071i201608
INDIA SPEC
main42607-30100i201206-201507
sub42607-30060
42611GVALVE (FOR TUBELESS TIRE)
main90942-05028i201507
MACAU SPEC&D PACKAGE
main90942-05028i201507
VIETNAM SPEC
main90942-05028i201507
VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201307-201507
PHILIPPINE SPEC
main90942-05028i201507
PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201308-201507
INDONESIA SPEC
main90942-05028i201507
INDONESIA SPEC&D PACKAGE
main90942-05028i201308-201507
BRUNEI SPEC
main90942-05028i201507
BRUNEI SPEC&D PACKAGE
main90942-05028i201408-201507
MACAU SPEC
main90942-05028i201708
PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI
main90942-05028i201708
VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI
main90942-05028i201206-201307
PHILIPPINE SPEC&C PACKAGE
main90942-05028i201308-201408
INDIA SPEC
main90942-05028i201308-201507
INDONESIA SPEC&G PACKAGE
main90942-05028i201308-201507
BRUNEI SPEC&G PACKAGE
main90942-05028i201408-201507
MACAU SPEC&G PACKAGE
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05028i201507
PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201206-201307
PHILIPPINE SPEC&C PACKAGE
main90942-05028i201308-201408
INDIA SPEC
main90942-05028i201307-201507
PHILIPPINE SPEC
main90942-05028i201308-201507
INDONESIA SPEC
main90942-05028i201308-201507
INDONESIA SPEC&G PACKAGE
main90942-05028i201308-201507
BRUNEI SPEC
main90942-05028i201308-201507
BRUNEI SPEC&G PACKAGE
main90942-05028i201408-201507
MACAU SPEC
main90942-05028i201408-201507
MACAU SPEC&G PACKAGE
main90942-05028i201507
INDONESIA SPEC&D PACKAGE
main90942-05028i201507
BRUNEI SPEC&D PACKAGE
main90942-05028i201507
MACAU SPEC&D PACKAGE
main90942-05028i201507
VIETNAM SPEC
main90942-05028i201507
VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05028i201708
PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI
main90942-05028i201708
VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI
42611UCAP, TIRE VALVE
main90942-05029i201708
VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI
main90942-05029i201206-201307
PHILIPPINE SPEC&C PACKAGE
main90942-05029i201308-201408
INDIA SPEC
main90942-05029i201708
PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI
main90942-05029i201307-201507
PHILIPPINE SPEC
main90942-05029i201308-201507
INDONESIA SPEC
main90942-05029i201308-201507
INDONESIA SPEC&G PACKAGE
main90942-05029i201308-201507
BRUNEI SPEC
main90942-05029i201308-201507
BRUNEI SPEC&G PACKAGE
main90942-05029i201408-201507
MACAU SPEC
main90942-05029i201408-201507
MACAU SPEC&G PACKAGE
main90942-05029i201507
PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201507
INDONESIA SPEC&D PACKAGE
main90942-05029i201507
BRUNEI SPEC&D PACKAGE
main90942-05029i201507
MACAU SPEC&D PACKAGE
main90942-05029i201507
VIETNAM SPEC
main90942-05029i201507
VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05037i201206-201207
main90942-05042i201207-201507
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05029i201507
VIETNAM SPEC
main90942-05029i201206-201307
PHILIPPINE SPEC&C PACKAGE
main90942-05029i201308-201408
INDIA SPEC
main90942-05029i201507
VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201507
MACAU SPEC&D PACKAGE
main90942-05029i201408-201507
MACAU SPEC
main90942-05029i201507
BRUNEI SPEC&D PACKAGE
main90942-05029i201308-201507
BRUNEI SPEC
main90942-05029i201507
INDONESIA SPEC&D PACKAGE
main90942-05029i201308-201507
INDONESIA SPEC
main90942-05029i201507
PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main90942-05029i201307-201507
PHILIPPINE SPEC
main90942-05029i201308-201507
INDONESIA SPEC&G PACKAGE
main90942-05029i201308-201507
BRUNEI SPEC&G PACKAGE
main90942-05029i201408-201507
MACAU SPEC&G PACKAGE
main90942-05029i201708
VIETNAM SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI
main90942-05029i201708
PHILIPPINE SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE, ALUMI
main90942-05037i201206-201207
main90942-05042i201207-201507
42652TIRE
main42652-33691i201206-201410
215/55R17,*Y/H,TAIWAN SPEC&G PACKAGE
sub42652-33692
main42652-33691i201206-201410
215/55R17,*Y/H,TAIWAN SPEC&H PACKAGE
sub42652-33692
main42652-33691i201206-201410
215/55R17,*Y/H
sub42652-33692
main42652-33691i201206-201410
215/55R17,*Y/H,TAIWAN SPEC
sub42652-33692
main42652-33692i201411-201601
215/55R17,*Y/H
sub42652-33693
main42652-33692i201411-201601
215/55R17,*Y/H,TAIWAN SPEC
sub42652-33693
main42652-33692i201507-201601
215/55R17,*Y/H,TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
sub42652-33693
main42652-33692i201411-201507
215/55R17,*Y/H,TAIWAN SPEC&G PACKAGE
sub42652-33693
main42652-33692i201411-201507
215/55R17,*Y/H,TAIWAN SPEC&H PACKAGE
sub42652-33693
main42652-33693i201602
215/55R17,*Y/H
main42652-33693i201602-201608
215/55R17,*Y/H,TAIWAN SPEC
main42652-33693i201602-201608
215/55R17,*Y/H,TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42652-33711i201308-201312
215/55R17,*Y/H
sub42652-33712
main42652-33712i201401-201507
215/55R17,*Y/H
main42652-33750i201206-201507
215/55R17,*Y/H
main42652-33760i201206-201507
215/55R17,*D/L
main42652-33780i201608
215/55R17 93V,*Y/H,INDIA SPEC
42652ATIRE (FOR SPARE)
main42652-33691i201206-201410
215/55R17,*Y/H
sub42652-33692
main42652-33691i201206-201410
215/55R17,*Y/H,TAIWAN SPEC
sub42652-33692
main42652-33691i201206-201410
215/55R17,*Y/H,TAIWAN SPEC&G PACKAGE
sub42652-33692
main42652-33691i201206-201410
215/55R17,*Y/H,TAIWAN SPEC&H PACKAGE
sub42652-33692
main42652-33692i201411-201601
215/55R17,*Y/H
sub42652-33693
main42652-33692i201507-201601
215/55R17,*Y/H,TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
sub42652-33693
main42652-33692i201411-201601
215/55R17,*Y/H,TAIWAN SPEC
sub42652-33693
main42652-33692i201411-201507
215/55R17,*Y/H,TAIWAN SPEC&G PACKAGE
sub42652-33693
main42652-33692i201411-201507
215/55R17,*Y/H,TAIWAN SPEC&H PACKAGE
sub42652-33693
main42652-33693i201602-201608
215/55R17,*Y/H,TAIWAN SPEC
main42652-33693i201602-201608
215/55R17,*Y/H,TAIWAN SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMI GRAY
main42652-33693i201602
215/55R17,*Y/H
main42652-33711i201308-201312
215/55R17,*Y/H
sub42652-33712
main42652-33712i201401-201507
215/55R17,*Y/H
main42652-33750i201206-201507
215/55R17,*Y/H
main42652-33760i201206-201507
215/55R17,*D/L
main42652-33780i201608
215/55R17 93V,*Y/H,INDIA SPEC

13 parts on this diagram · 3 diagrams in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
