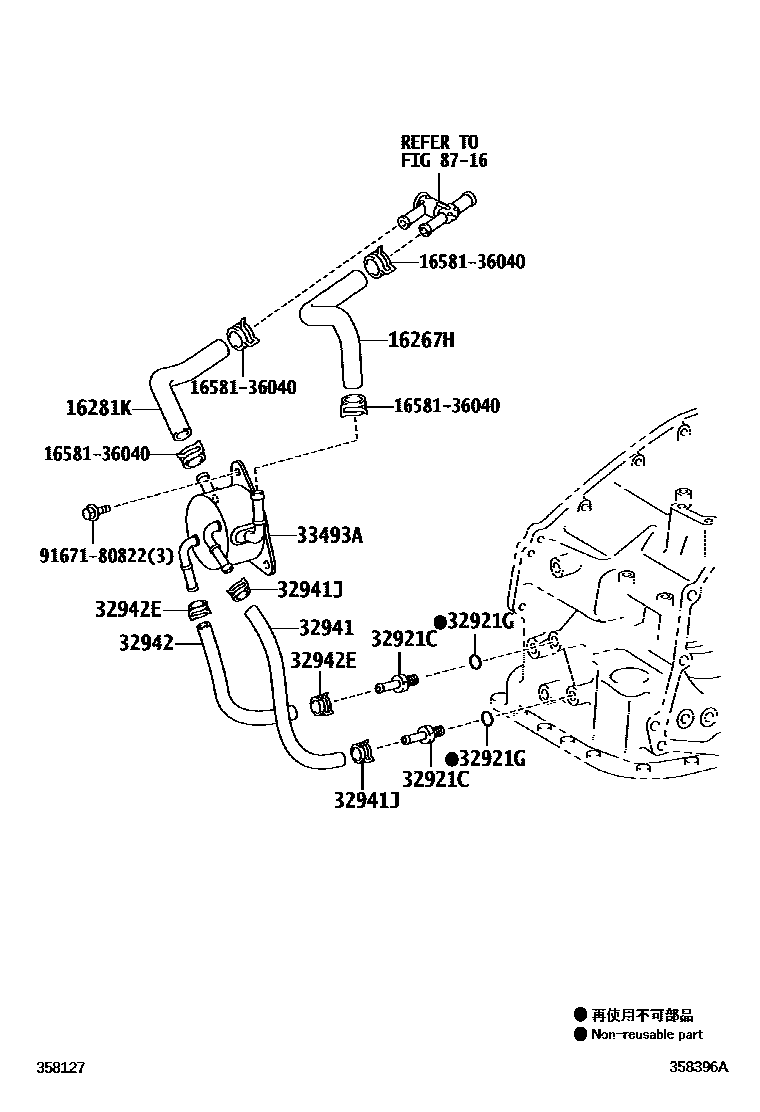

OIL COOLER & TUBE (ATM)

0001 1U760E 0002 1U660E 0003 1U660E 0004 1U660E,TAIWAN SPEC 0005 1U660E 0006 1U761E

16267HHOSE, WATER BY-PASS, NO.3

main16267-31090i2GRFE..GSV60..ARL,CHI201206-201507

main16267-36050i2ARFE..ASV60201206-201507

main16267-36110i6ARFSE..ASV61201507

16281KHOSE, WATER BY-PASS, NO.4

main16281-31080i2GRFE..GSV60..ARL,CHI201206-201507

main16281-36030i2ARFE..ASV60201206-201507

main16281-36110i6ARFSE..ASV61201507

32921CUNION(FOR OIL COOLER TUBE)

main90404-14027iASV60,GSV60201206-201507

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iASV60,GSV60201206-201507

32941HOSE, OIL COOLER INLET, NO.1

main32941-33090iASV61201507

main32941-33130iGSV60..GCC201206-201507

main32941-33150iGSV60..ARL,CHI201206-201507

main90445-17183iASV60201206-201507

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iASV60;GSV60..ARL,CHI201206-201507

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-33090iASV61201507

main32942-33140iGSV60..GCC201206-201403

sub32942-33141

main32942-33141iGSV60..GCC201404-201507

main32942-33160iGSV60..ARL201308-201507

main90445-17100iASV60201206-201507

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iASV60;GSV60..ARL,CHI201206-201507

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-33020iASV61201507

main33493-33030iASV60201206-201507

main33493-33040iGSV60..ARL,CHI201206-201507

8716

1658136040CLAMP, HOSE(FOR WATER HOSE)

main16581-36040

9167180822

main91671-80822

12 parts on this diagram · 6 diagrams in section
