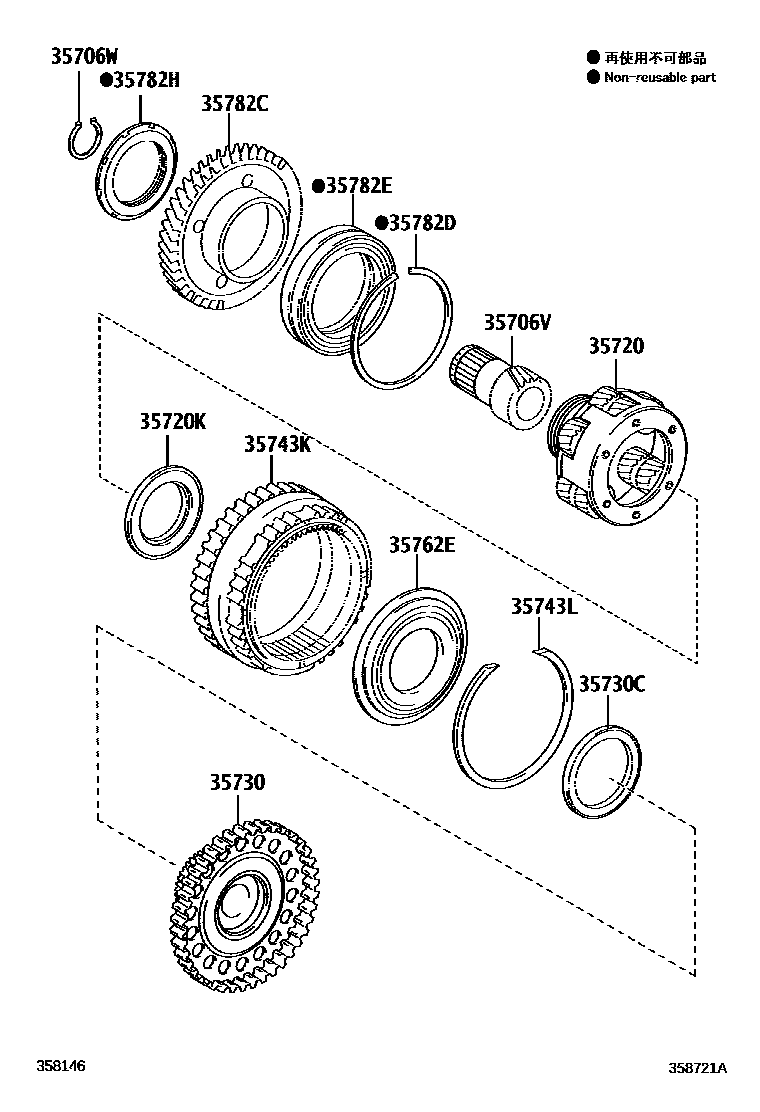

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U760E,U761E 0002 1U660E

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020iGSV60201206-201507

main35706-73010iASV60201206-201507

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iASV60,GSV60201206-201507

35720GEAR ASSY, FRONT PLANETARY

main35720-33062iGSV60201206-201507

main35720-33070iASV61201507

main35720-73010iASV60201206-201312

sub35720-73020

main35720-73020iASV60201401-201507

sub35720-33070

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62002iGSV60201206-201310

sub90374-62007

main90374-62004iASV60201206-201407

sub90374-62011

main90374-62007iGSV60201310-201507

main90374-62011iASV60201408-201507

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33021iGSV60201206-201507

main35730-33030iASV61201507

main35730-73010iASV60201206-201507

sub35730-33030

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iASV6#,GSV60201206-201507

35743KGEAR, PLANETARY RING

main35743-33030iGSV60201206-201507

main35743-33040iASV61201507

main35743-73010iASV60201206-201507

sub35743-33040

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iASV60,GSV60201206-201507

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iGSV60201206-201507

main35762-73010iASV60201206-201507

35782CGEAR, COUNTER DRIVE

main35782-33031iGSV60201206-201507

main35782-33040iASV61201507

main35782-73010iASV60201206-201507

sub35782-33040

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iASV60,GSV60201206-201402

main90520-99154iASV60,GSV60201402-201507

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iASV60,GSV60201206-201402

sub90369-72002

main90369-72002iASV60,GSV60201402-201507

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iASV60,GSV60201206-201507

13 parts on this diagram · 2 diagrams in section
