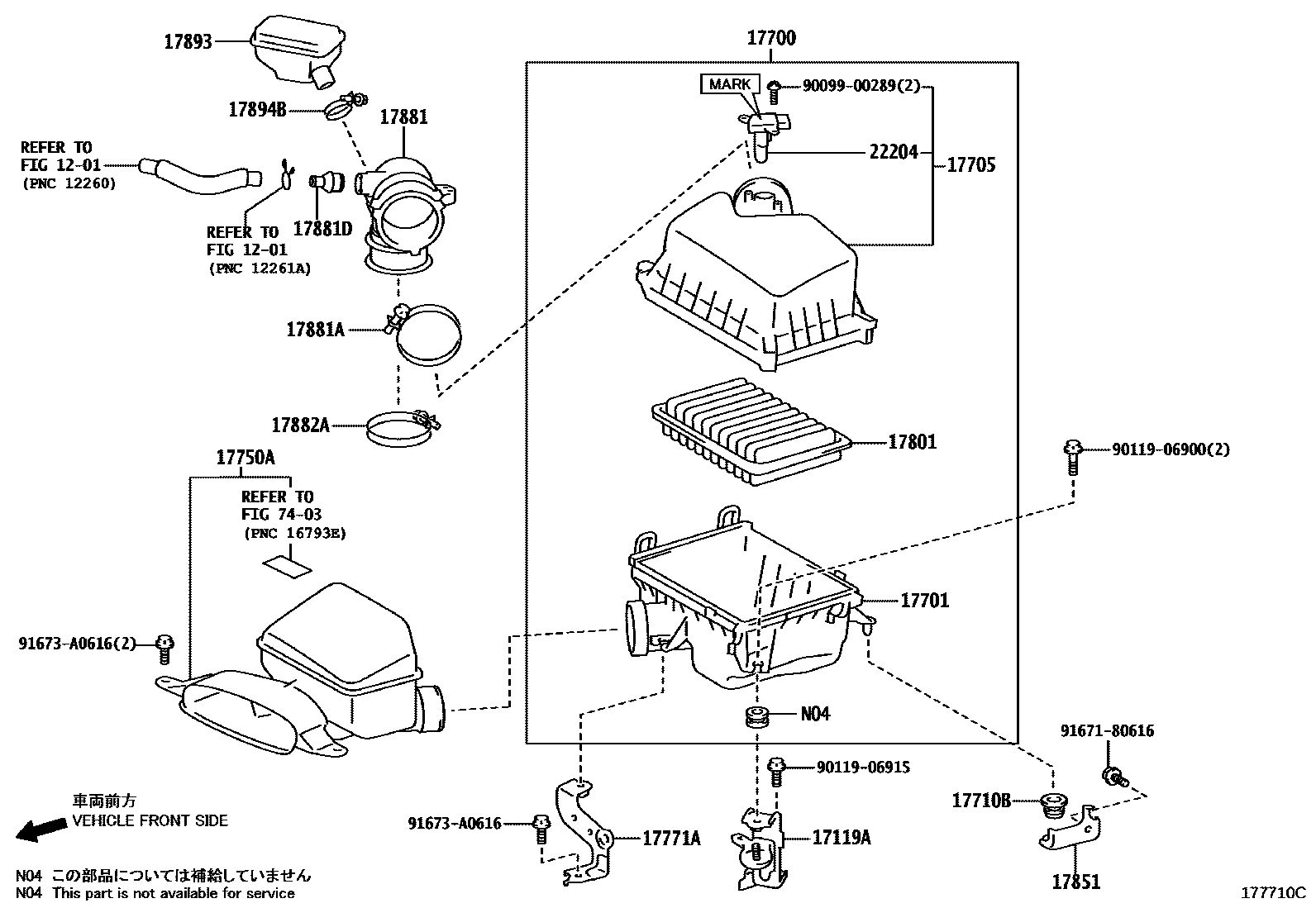

AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17851BRACKET, AIR CLEANER SUPPORT
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17893RESONATOR, INTAKE AIR
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0V020
MARK 22204-28010
7403
9009900289
main90099-00289
9011906900
main90119-06900
9011906915
main90119-06915
9167180616
main91671-80616
91673A0616
main91673-A0616
23 parts on this diagram · 4 diagrams in section
