V-BELT

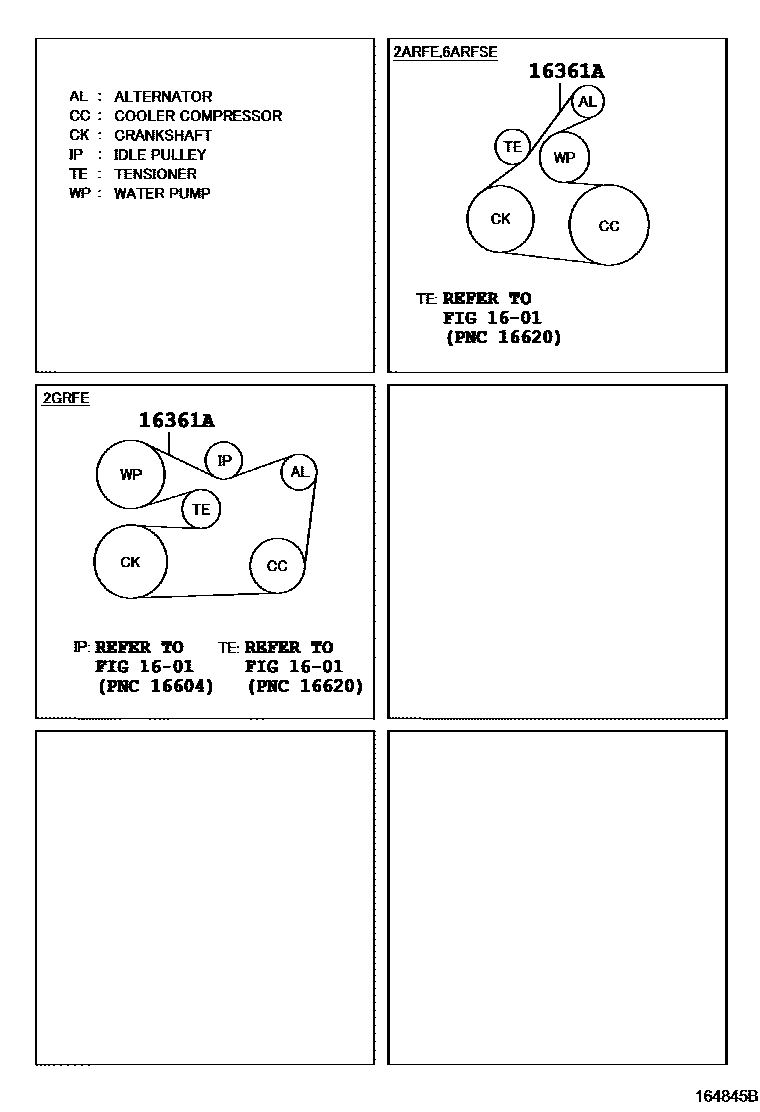

Parts diagram

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02667i201206-201507

BANDO

main90916-02668i201507

MITSUBOSHI

main90916-02731i201507

main99367-C1550i201206-201507

main99367-K1550i201611

2 parts on this diagram · 1 diagram in section
