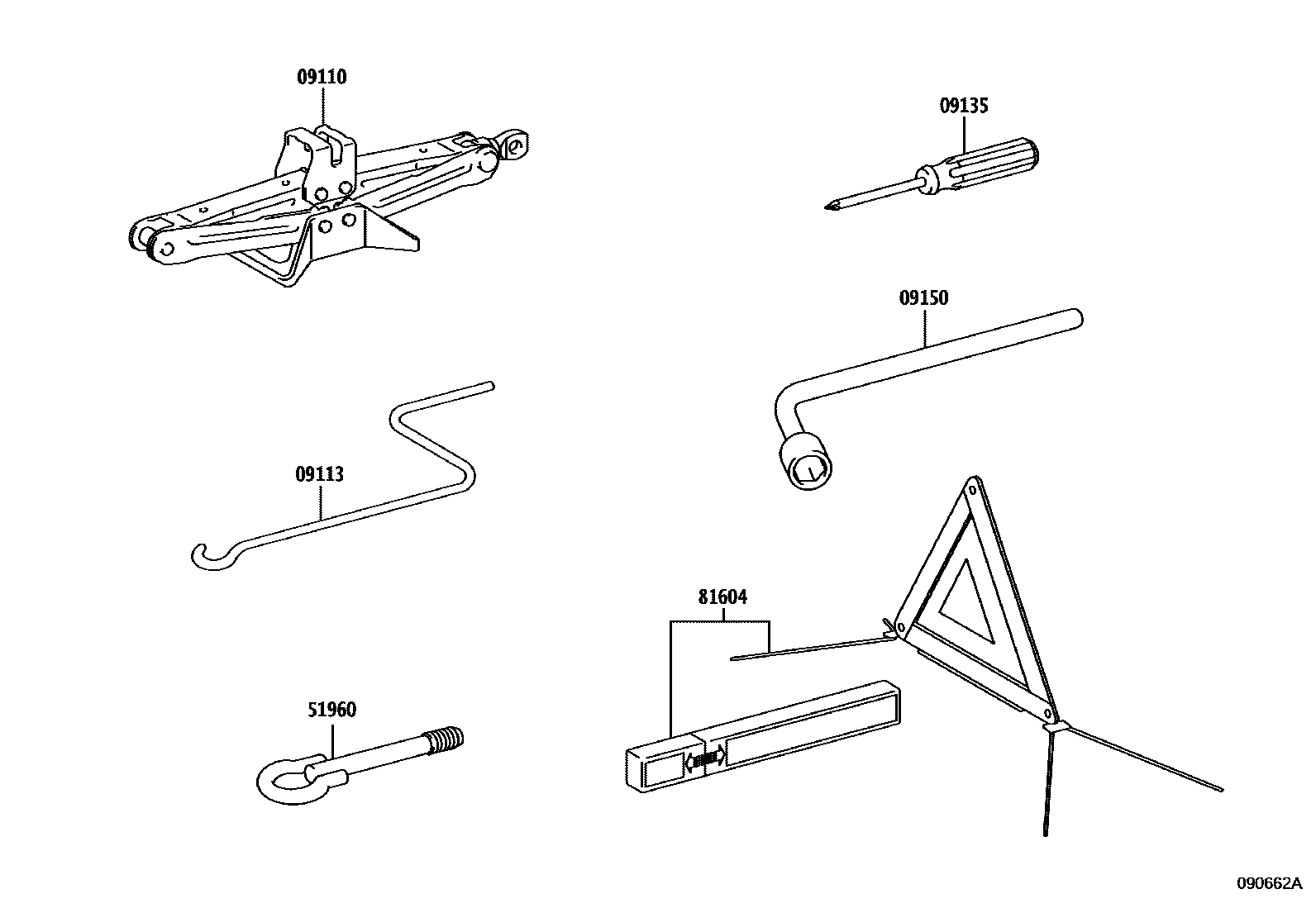

STANDARD TOOL

09110JACK ASSY

main09110-33041iAVV60,GSV60..ARL201308-201507

SOUTH AFRICA SPEC

main09111-06151iAVV60..ARL201507-201603

SOUTH AFRICA SPEC

sub09111-0W160

main09111-06151iASV60;AVV60,GSV60..CHI,GCC,GEN201206-201507

sub09111-0W160

main09111-0W160iASV6#;AVV60,GSV60..CHI,GCC,GEN201604

SOUTH AFRICA SPEC

09113HANDLE, JACK

main09113-33010iASV6#,AVV60,GSV60201206-201507

09135DRIVER, SCREW

main99915-10700iASV60,AVV60,GSV60201206-201507

09150WRENCH, HUB NUT BOX

main09150-76020iASV60,AVV60,GSV60201206-201507

51960HOOK ASSY, FRONT

main51960-47020iASV60,AVV60,GSV60201206-201508

main51960-52090iASV6#,AVV60,GSV60201509

81604REFLECTOR SET, TRIANGLE

main81604-78010iASV6#,AVV60..CHI201804

TAIWAN SPEC

6 parts on this diagram · 1 diagram in section
