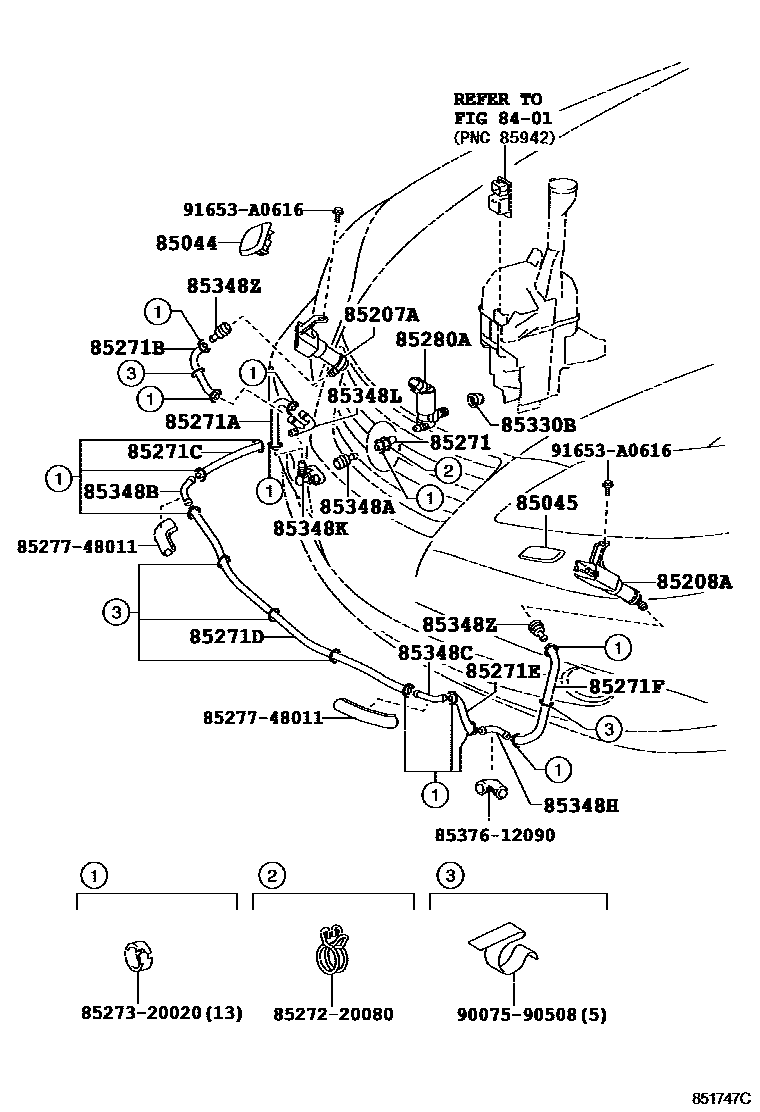

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
WHITE PEARL CS.,062
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
BLACK,202
BLACK,212
SHELL M.M.,3R4
DK.RED MC.CC.,3R5
RED MC.CS.,3R1
BLOND M.M.,4T0
BEIGE ME.,4T1
DK.TURQUOISE M.M.,778
DARK BLUE MC.,8P8
DK.BLUE MC. CC.,8U0
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
WHITE PEARL CS.,062
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
BLACK,202
BLACK,212
SHELL M.M.,3R4
DK.RED MC.CC.,3R5
RED MC.CS.,3R1
BLOND M.M.,4T0
BEIGE ME.,4T1
DK.TURQUOISE M.M.,778
DARK BLUE MC.,8P8
DK.BLUE MC. CC.,8U0
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=45
85271AHOSE, HEADLAMP CLEANER, NO.2
L=135
L=70
85271BHOSE, HEADLAMP CLEANER, NO.3
L=60
L=150
85271CHOSE, HEADLAMP CLEANER, NO.4
L=90
85271DHOSE, HEADLAMP CLEANER, NO.5
L=70
L=1060
85271EHOSE, HEADLAMP CLEANER, NO.6
L=70
85271FHOSE, HEADLAMP CLEANER, NO.7
L=170
L=150
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527748011HOSE, HEADLAMP CLEANER, C
main85277-48011
8537612090PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
main85376-12090
9007590508
main90075-90508
91653A0616
main91653-A0616
27 parts on this diagram · 2 diagrams in section
