CLEARANCE & BACK SONAR

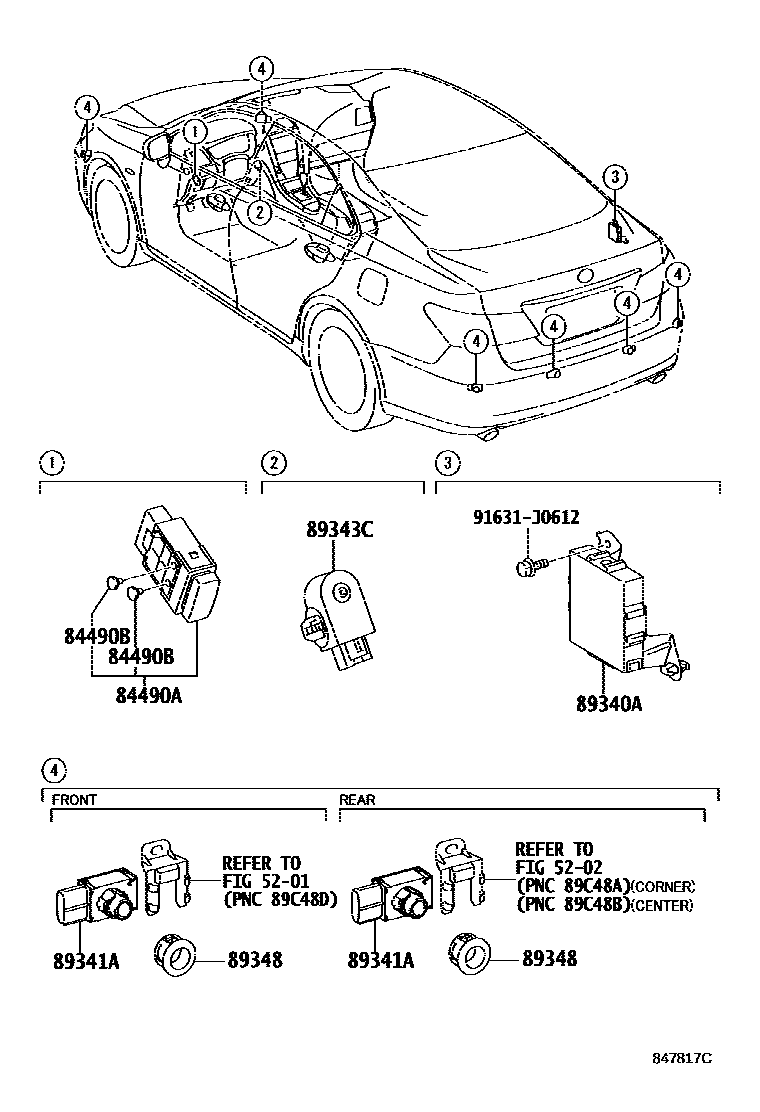

Parts diagram
5201
5202
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
main84490-33010i200605-201109
CLEARANCE SONER-WITH
main84490-33010i200908-201206
84490BBULB(FOR BACK SONAR SWITCH)
main90010-01117i200605-201109
14V 0.98W,CLEARANCE SONER-WITH
main90010-01117i200908
14V 0.98W
main90010-01117i200908
14V 0.98W,CLEARANCE SONER-WITHOUT
main90010-01118i200908
14V 0.84W
main90010-01118i200605-201109
14V 0.84W,CLEARANCE SONER-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-33060i200605-201006
CLEARANCE SONER-WITH
sub89340-33061
main89340-33060i200908-201006
CLEARANCE SONER-WITHOUT
sub89340-33061
main89340-33061i201007-201109
CLEARANCE SONER-WITH
main89340-33061i201007
CLEARANCE SONER-WITHOUT
main89340-33061i201008
89341ASENSOR, ULTRASONIC, NO.1
main89341-33110-A0i200605-200608
CLEARANCE SONER-WITH,WHITE PEARL CS.,062
sub89341-33110
main89341-33110-A1i200908-201206
CLEARANCE SONER-WITHOUT,WHITE PEARL CS.,077
sub89341-33110
main89341-33110-A1i200908-201206
WHITE PEARL CS.,077
sub89341-33110
main89341-33110-A1i200608-201109
CLEARANCE SONER-WITH,WHITE PEARL CS.,077
sub89341-33110
main89341-33110-B0i200908-201109
DK.GRAY MC.,1G0
sub89341-33110
main89341-33110-B0i200605-201109
CLEARANCE SONER-WITH,DK.GRAY MC.,1G0
sub89341-33110
main89341-33110-B0i200908-201109
CLEARANCE SONER-WITHOUT,DK.GRAY MC.,1G0
sub89341-33110
main89341-33110-B1i200908-201206
CLEARANCE SONER-WITHOUT,SILVER M.M.,1G1
sub89341-33110
main89341-33110-B1i200908-201206
SILVER M.M.,1G1
sub89341-33110
main89341-33110-B1i200605-201109
CLEARANCE SONER-WITH,SILVER M.M.,1G1
sub89341-33110
main89341-33110-C0i200605-200608
CLEARANCE SONER-WITH,BLACK,202
sub89341-33110
main89341-33110-C1i200908-201206
BLACK,212
sub89341-33110
main89341-33110-C1i200908-201206
CLEARANCE SONER-WITHOUT,BLACK,212
sub89341-33110
main89341-33110-C1i200608-201109
CLEARANCE SONER-WITH,BLACK,212
sub89341-33110
main89341-33110-C4i201109-201206
STARLIGHT BLACK GF.,217
sub89341-33110
main89341-33110-C4i201109-201206
CLEARANCE SONER-WITHOUT,STARLIGHT BLACK GF.,217
sub89341-33110
main89341-33110-D0i200605-200908
CLEARANCE SONER-WITH,SHELL M.M.,3R4
sub89341-33110
main89341-33110-D1i200605-200808
CLEARANCE SONER-WITH,DK.RED MC.CC.,3R5
sub89341-33110
main89341-33110-D4i200908-201206
CLEARANCE SONER-WITHOUT,RED MC.CS.,3R1
sub89341-33110
main89341-33110-D4i200908-201206
RED MC.CS.,3R1
sub89341-33110
main89341-33110-D4i200808-201109
CLEARANCE SONER-WITH,RED MC.CS.,3R1
sub89341-33110
main89341-33110-E0i200605-200908
CLEARANCE SONER-WITH,BLOND M.M.,4T0
sub89341-33110
main89341-33110-E1i200605-200908
CLEARANCE SONER-WITH,BEIGE ME.,4T1
sub89341-33110
main89341-33110-E2i200908-201206
CLEARANCE SONER-WITHOUT,SABLE M.M.,4T5
sub89341-33110
main89341-33110-E2i200908-201206
SABLE M.M.,4T5
sub89341-33110
main89341-33110-E2i200908-201109
CLEARANCE SONER-WITH,SABLE M.M.,4T5
sub89341-33110
main89341-33110-E5i200908-201206
CLEARANCE SONER-WITHOUT,SLEEK ECRU ME.,4U7
sub89341-33110
main89341-33110-E5i200908-201109
CLEARANCE SONER-WITH,SLEEK ECRU ME.,4U7
sub89341-33110
main89341-33110-E5i200908-201206
SLEEK ECRU ME.,4U7
sub89341-33110
main89341-33110-G1i200908-201109
CLEARANCE SONER-WITH,DEEP PERIDOT MC.,6V6
sub89341-33110
main89341-33110-G1i200908-201109
CLEARANCE SONER-WITHOUT,DEEP PERIDOT MC.,6V6
sub89341-33110
main89341-33110-G1i200908-201109
DEEP PERIDOT MC.,6V6
sub89341-33110
main89341-33110-H0i200605-200908
CLEARANCE SONER-WITH,DK.TURQUOISE M.M.,778
sub89341-33110
main89341-33110-J0i200605-200608
CLEARANCE SONER-WITH,DARK BLUE MC.,8P8
sub89341-33110
main89341-33110-J1i200908-201008
CLEARANCE SONER-WITHOUT,DK.BLUE MC. CC.,8U0
sub89341-33110
main89341-33110-J1i200608-201008
CLEARANCE SONER-WITH,DK.BLUE MC. CC.,8U0
sub89341-33110
main89341-33110-J1i200908-201008
DK.BLUE MC. CC.,8U0
sub89341-33110
main89341-33110-J5i200908-201206
CLEARANCE SONER-WITHOUT,SILVERY BLUE ME.,8U9
sub89341-33110
main89341-33110-J5i200908-201109
CLEARANCE SONER-WITH,SILVERY BLUE ME.,8U9
sub89341-33110
main89341-33110-J5i200908-201206
SILVERY BLUE ME.,8U9
sub89341-33110
main89341-33110-J6i201008-201109
CLEARANCE SONER-WITH,LAPIS LAZULI MC.,8V3
sub89341-33110
main89341-33110-J6i201008-201206
LAPIS LAZULI MC.,8V3
sub89341-33110
main89341-33110-J6i201008-201206
CLEARANCE SONER-WITHOUT,LAPIS LAZULI MC.,8V3
sub89341-33110
main89341-33110-P1i201109-201206
MERCURY GRAY MC.,1H9
sub89341-33110
main89341-33110-P1i201109-201206
CLEARANCE SONER-WITHOUT,MERCURY GRAY MC.,1H9
sub89341-33110
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-30010i200605-201109
CLEARANCE SONER-WITH
main89343-30010i200908
CLEARANCE SONER-WITHOUT
main89343-30010i201008
89348RETAINER, ULTRASONIC SENSOR, NO.1
main89348-33010-A0i200605-200608
CLEARANCE SONER-WITH,WHITE PEARL CS.,062
sub89348-33010
main89348-33010-A1i200908-201206
CLEARANCE SONER-WITHOUT,WHITE PEARL CS.,077
sub89348-33010
main89348-33010-A1i200608-201109
CLEARANCE SONER-WITH,WHITE PEARL CS.,077
sub89348-33010
main89348-33010-A1i200908-201206
WHITE PEARL CS.,077
sub89348-33010
main89348-33010-B0i200908-201109
DK.GRAY MC.,1G0
sub89348-33010
main89348-33010-B0i200605-201109
CLEARANCE SONER-WITH,DK.GRAY MC.,1G0
sub89348-33010
main89348-33010-B0i200908-201109
CLEARANCE SONER-WITHOUT,DK.GRAY MC.,1G0
sub89348-33010
main89348-33010-B1i200908-201206
CLEARANCE SONER-WITHOUT,SILVER M.M.,1G1
sub89348-33010
main89348-33010-B1i200605-201109
CLEARANCE SONER-WITH,SILVER M.M.,1G1
sub89348-33010
main89348-33010-B1i200908-201206
SILVER M.M.,1G1
sub89348-33010
main89348-33010-C0i200605-200608
CLEARANCE SONER-WITH,BLACK,202
sub89348-33010
main89348-33010-C1i200908-201206
BLACK,212
sub89348-33010
main89348-33010-C1i200908-201206
CLEARANCE SONER-WITHOUT,BLACK,212
sub89348-33010
main89348-33010-C1i200608-201109
CLEARANCE SONER-WITH,BLACK,212
sub89348-33010
main89348-33010-C4i201109-201206
STARLIGHT BLACK GF.,217
sub89348-33010
main89348-33010-C4i201109-201206
CLEARANCE SONER-WITHOUT,STARLIGHT BLACK GF.,217
sub89348-33010
main89348-33010-D0i200605-200908
CLEARANCE SONER-WITH,SHELL M.M.,3R4
sub89348-33010
main89348-33010-D1i200605-200808
CLEARANCE SONER-WITH,DK.RED MC.CC.,3R5
sub89348-33010
main89348-33010-D5i200908-201206
CLEARANCE SONER-WITHOUT,RED MC.CS.,3R1
sub89348-33010
main89348-33010-D5i200808-201109
CLEARANCE SONER-WITH,RED MC.CS.,3R1
sub89348-33010
main89348-33010-D5i200908-201206
RED MC.CS.,3R1
sub89348-33010
main89348-33010-E0i200605-200908
CLEARANCE SONER-WITH,BLOND M.M.,4T0
sub89348-33010
main89348-33010-E1i200605-200908
CLEARANCE SONER-WITH,BEIGE ME.,4T1
sub89348-33010
main89348-33010-E4i200908-201109
CLEARANCE SONER-WITH,SABLE M.M.,4T5
sub89348-33010
main89348-33010-E4i200908-201206
SABLE M.M.,4T5
sub89348-33010
main89348-33010-E4i200908-201206
CLEARANCE SONER-WITHOUT,SABLE M.M.,4T5
sub89348-33010
main89348-33010-E6i200908-201109
CLEARANCE SONER-WITH,SLEEK ECRU ME.,4U7
sub89348-33010
main89348-33010-E6i200908-201206
SLEEK ECRU ME.,4U7
sub89348-33010
main89348-33010-E6i200908-201206
CLEARANCE SONER-WITHOUT,SLEEK ECRU ME.,4U7
sub89348-33010
main89348-33010-G1i200908-201109
CLEARANCE SONER-WITHOUT,DEEP PERIDOT MC.,6V6
sub89348-33010
main89348-33010-G1i200908-201109
DEEP PERIDOT MC.,6V6
sub89348-33010
main89348-33010-G1i200908-201109
CLEARANCE SONER-WITH,DEEP PERIDOT MC.,6V6
sub89348-33010
main89348-33010-H0i200605-200908
CLEARANCE SONER-WITH,DK.TURQUOISE M.M.,778
sub89348-33010
main89348-33010-J0i200605-200608
CLEARANCE SONER-WITH,DARK BLUE MC.,8P8
sub89348-33010
main89348-33010-J1i200608-201008
CLEARANCE SONER-WITH,DK.BLUE MC. CC.,8U0
sub89348-33010
main89348-33010-J1i200908-201008
DK.BLUE MC. CC.,8U0
sub89348-33010
main89348-33010-J1i200908-201008
CLEARANCE SONER-WITHOUT,DK.BLUE MC. CC.,8U0
sub89348-33010
main89348-33010-J5i200908-201206
CLEARANCE SONER-WITHOUT,SILVERY BLUE ME.,8U9
sub89348-33010
main89348-33010-J5i200908-201206
SILVERY BLUE ME.,8U9
sub89348-33010
main89348-33010-J5i200908-201109
CLEARANCE SONER-WITH,SILVERY BLUE ME.,8U9
sub89348-33010
main89348-33010-J6i201008-201206
LAPIS LAZULI MC.,8V3
sub89348-33010
main89348-33010-J6i201008-201206
CLEARANCE SONER-WITHOUT,LAPIS LAZULI MC.,8V3
sub89348-33010
main89348-33010-J6i201008-201109
CLEARANCE SONER-WITH,LAPIS LAZULI MC.,8V3
sub89348-33010
main89348-33010-P2i201109-201206
MERCURY GRAY MC.,1H9
sub89348-33010
main89348-33010-P2i201109-201206
CLEARANCE SONER-WITHOUT,MERCURY GRAY MC.,1H9
sub89348-33010
91631J0612
main91631-J0612

9 parts on this diagram · 1 diagram in section
