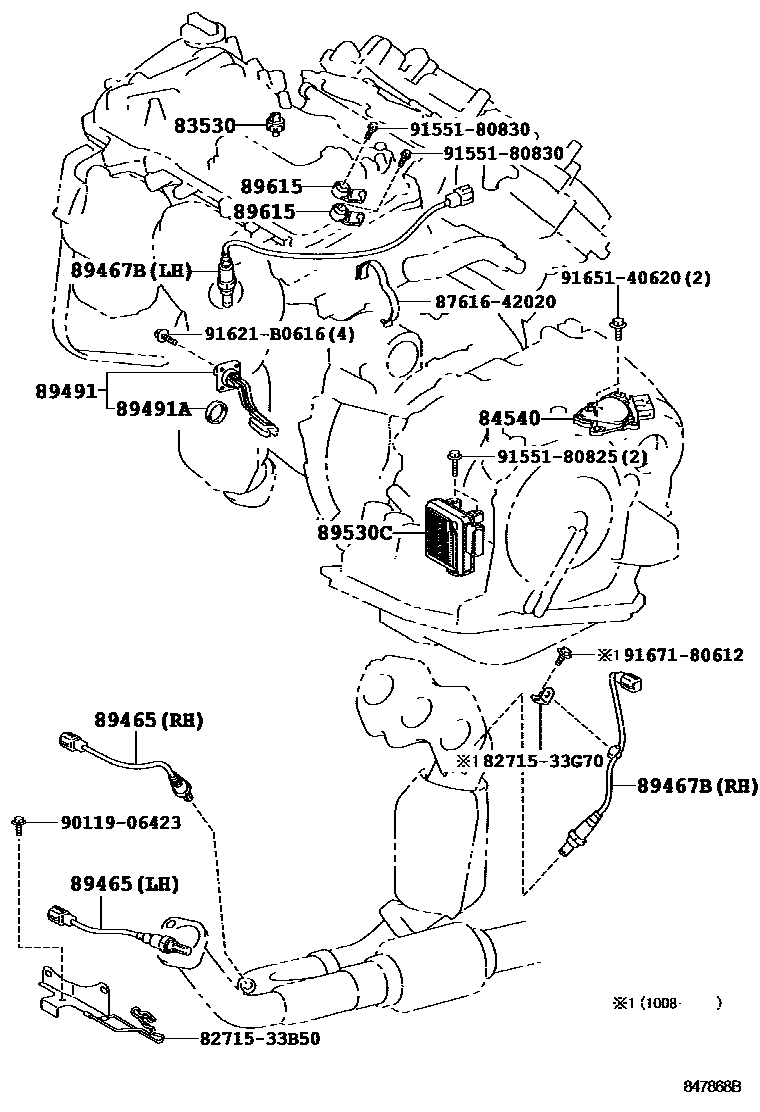

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1IGNITION & COMBINATION SWITCH0008 1SEAT 0009 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV40,GSV40200605-200908

DENSO

main83530-60020iACV40,GSV40200605-200908

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-33010iGSV40200605-201206

main84540-48010iACV40200908-201206

89465SENSOR, OXYGEN

main89465-33360iGSV40200605-200908

LH

main89465-33420iGSV40200605-200908

RH

main89465-33440iACV40200908

89467BSENSOR, AIR FUEL RATIO

main89467-33090iGSV40200605-200707

LH

main89467-33130iGSV40200605-200707

RH

main89467-33160iACV40200908

main89467-33170iGSV40200707-200908

LH

main89467-33180iGSV40200707-200908

RH

89491SENSOR, ENGINE OIL LEVEL

main89491-48010iGSV40200605-200908

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iGSV40200605-200908

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-33051iGSV40..CHI200901-200908

main89530-33060iGSV40200605-200709

sub89530-33061

main89530-33061iGSV40..CHI200710-200908

main89530-33080iGSV40..CHI200908

main89530-33090iGSV40..GCC200908

89615SENSOR, KNOCK CONTROL

main89615-20090iGSV40200605-200908

8271533B50BRACKET,WIRING HARNESS CLAMP

main82715-33B50

8271533G70BRACKET,WIRING HARNESS CLAMP

main82715-33G70

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9011906423

main90119-06423

9155180825

main91551-80825

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140620

main91651-40620

9167180612

main91671-80612

17 parts on this diagram · 9 diagrams in section
