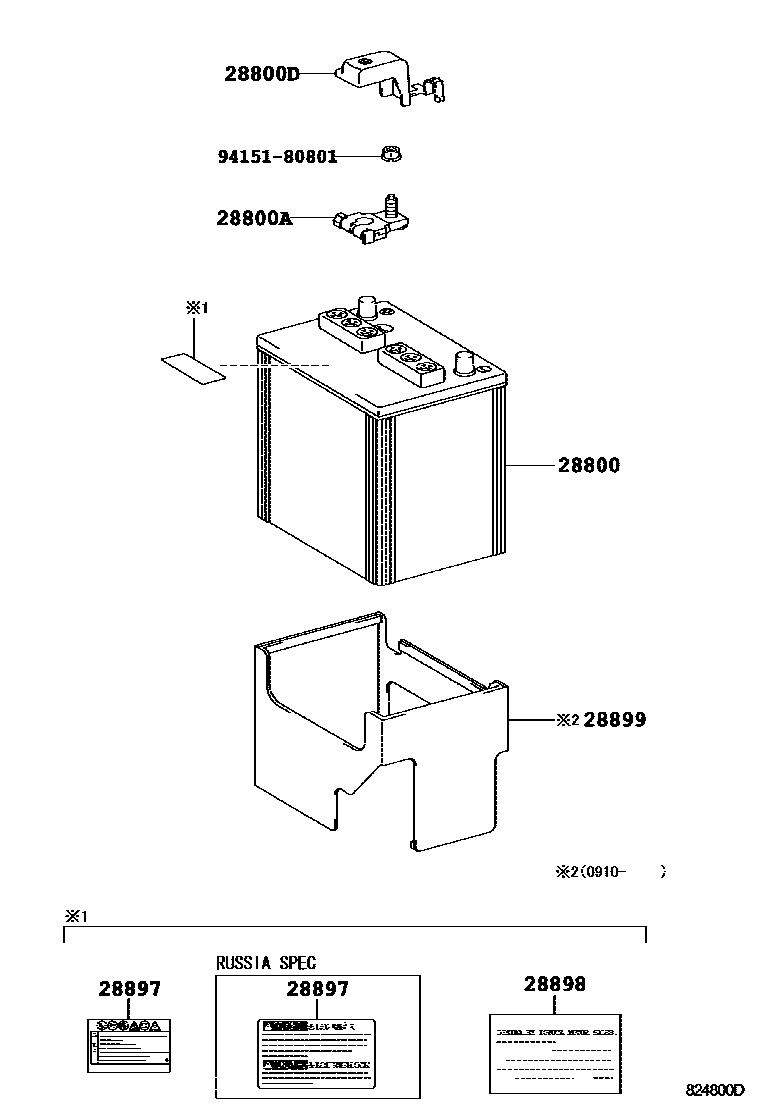

BATTERY & BATTERY CABLE

28800BATTERY

main28800-17121i2AZFE,2GRFE..ACV40,GSV40..CHI200908-200910

80D26L,FURUKAWA

sub28800-38080

main28800-54020i2GRFE..GSV40..CHI200908-200910

80D26L,TAIWAN SPEC

sub28800-67102

main28800-54020i2GRFE..GSV40..GCC200908

80D26L

sub28800-67102

main28800-64132i2GRFE..GSV40..GCC200605-200908

80D26L

sub28800-54020

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2AZFE,2GRFE..ACV40,GSV40200605-200908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2AZFE,2GRFE..ACV40,GSV40200605-200908

28897PLATE, BATTERY CAUTION

main28897-31010i2GRFE..GSV40..CHI200910

RUSSIA SPEC

sub28897-38060

main28897-50030i2GRFE..GSV40..CHI200908-200910

RUSSIA SPEC

sub28897-38060

main28897-31040i2GRFE..GSV40..CHI201008

RUSSIA SPEC

28898PLATE, BATTERY

main28898-20010i2GRFE..GSV40..CHI200707-200908

TAIWAN SPEC

28899INSULATOR, BATTERY

main28899-31150i2GRFE..GSV40..GCC201201

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section
