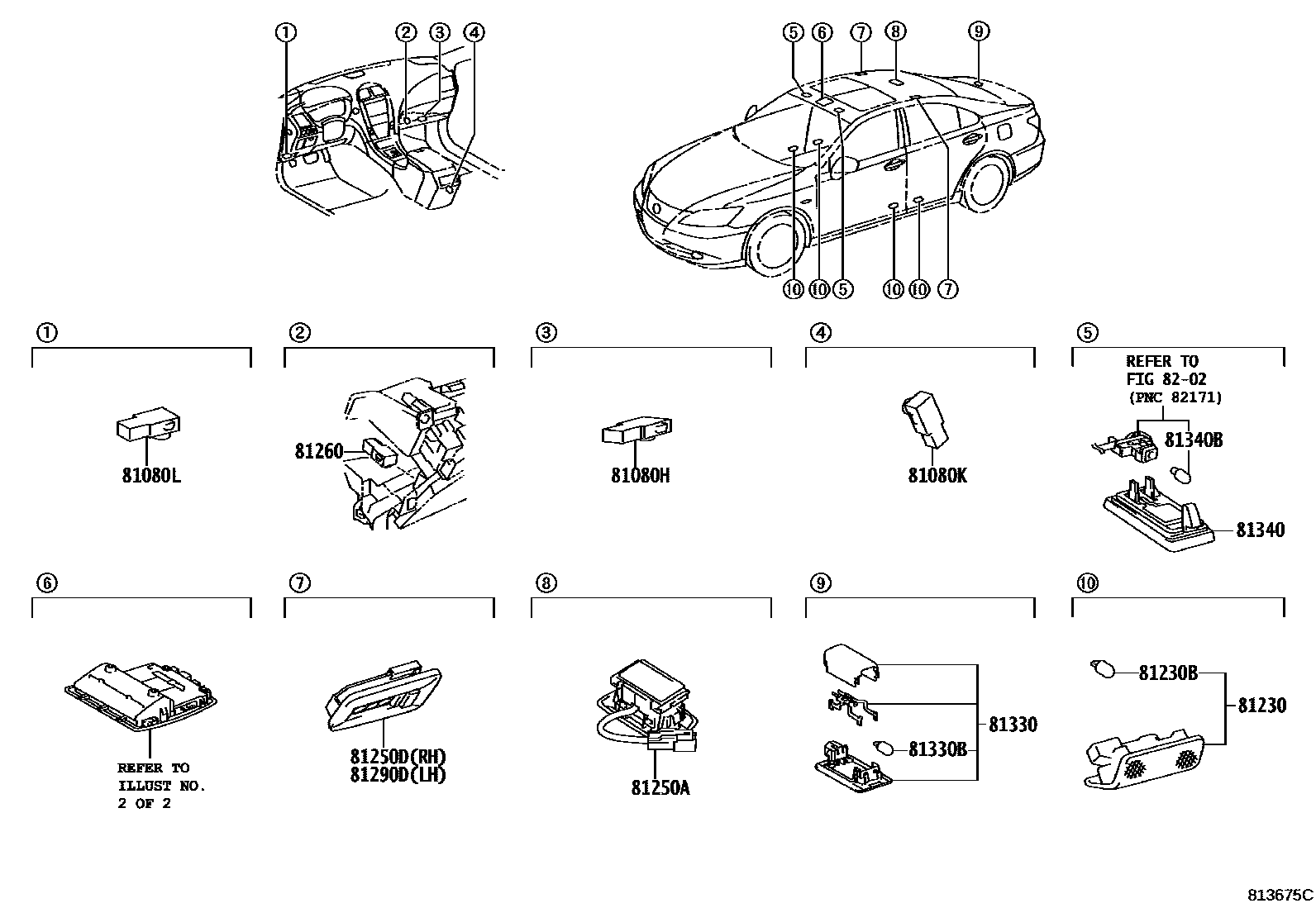

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
sub81230-30200
81230BBULB(FOR COURTESY LAMP)
12V 5W
81250ALAMP ASSY, SPOT
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81250DLAMP ASSY, REAR ROOM, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81260LAMP ASSY, GLOVE BOX
81290DLAMP ASSY, REAR ROOM, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81340BBULB (FOR VANITY LAMP)
12V 8W
8202
14 parts on this diagram · 4 diagrams in section
