REAR COMBINATION LAMP

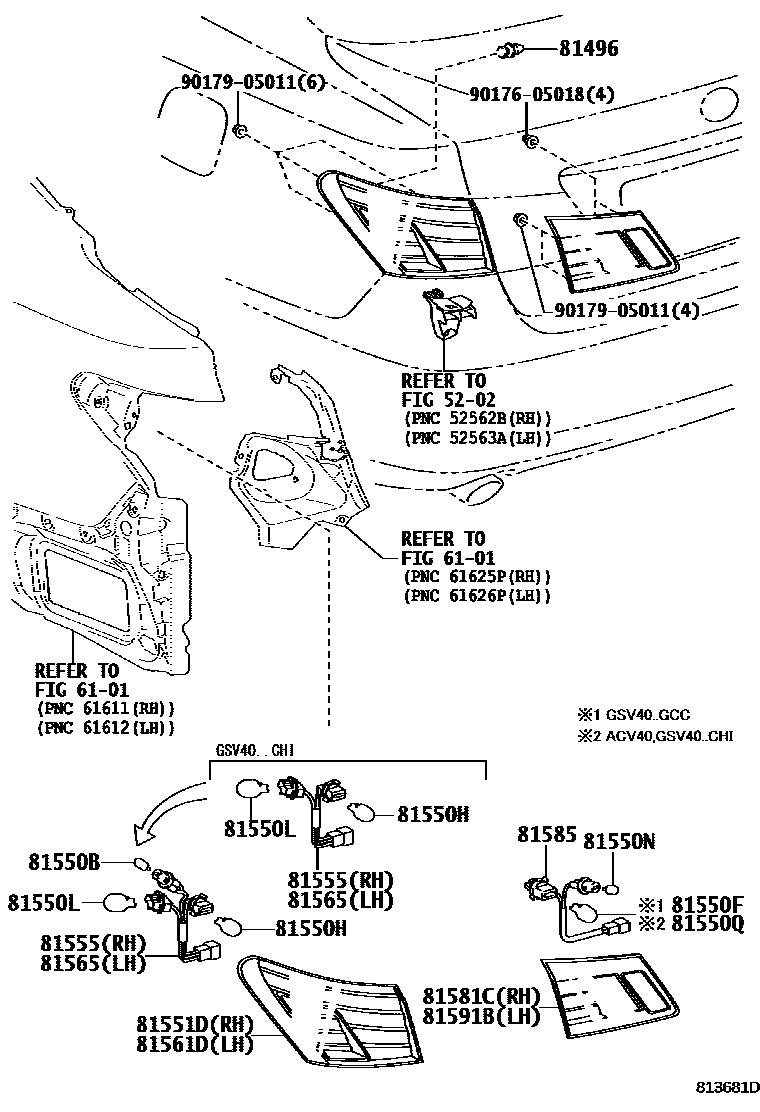

Parts diagram

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-28010i200605-200908

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020i200605-200908

12V 3.8W

main99132-12050i200908

12V 5W

81550FBULB, TAILLAMP

main90981-13044i200605-200908

main99132-12050i200908

81550HBULB, TAIL & STOP LAMP

main90981-13044i200605-200908

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021i200605-200908

81550NBULB, BACK UP LAMP

main90981-11059i200605-200908

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043i200607-200908

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-33470i200908

main81551-33480i200908

main81551-33500i200605-200908

main81551-33510i200607-200612

main81551-33511i200701-200908

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33500i200605-200908

main81555-33510i200607-200908

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-33410i200908

main81561-33420i200908

main81561-33500i200605-200908

main81561-33510i200607-200612

main81561-33511i200701-200908

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-33500i200605-200908

main81555-33510i200607-200908

81581CLENS AND BODY, REAR LAMP, RH

main81581-33150i200605-200908

main81581-33160i200607-200612

main81581-33161i200701-200908

main81581-33190i200908

main81581-33200i200908

81585SOCKET & WIRE, REAR LAMP

main81585-33150i200605-200908

main81585-33160i200607-200908

main81585-33190i200908

81591BLENS AND BODY, REAR LAMP, LH

main81591-33090i200908

main81591-33150i200605-200908

main81591-33160i200607-200612

main81591-33161i200701-200908

main81591-33190i200908

9017605018

main90176-05018

9017905011

main90179-05011

18 parts on this diagram · 1 diagram in section
