SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
67887FWEATHERSTRIP, REAR DOOR, NO.2 RH
67888DWEATHERSTRIP, REAR DOOR, NO.2 LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75085ESCREW, NO.1
75392ARETAINER, OUTSIDE MOULDING, NO.1
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
MOON ROOF-WITH(GLASS ROOF),WHITE PEARL CS.,062
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),WHITE PEARL CS.,077
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),SILVER M.M.,1G1
sub75555-33040
MOON ROOF-WITH(TILT & SLIDE),MERCURY GRAY MC.,1H9
sub75555-33040
ULTRA LUXURY PACKAGE,MERCURY GRAY MC.,1H9
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),MERCURY GRAY MC.,1H9
sub75555-33040
MOON ROOF-WITH(TILT & SLIDE),STARLIGHT BLACK GF.,217
sub75555-33040
ULTRA LUXURY PACKAGE,STARLIGHT BLACK GF.,217
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),STARLIGHT BLACK GF.,217
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),RED MC.CS.,3R1
sub75555-33040
ULTRA LUXURY PACKAGE,SLEEK ECRU ME.,4U7
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),SLEEK ECRU ME.,4U7
sub75555-33040
ULTRA LUXURY PACKAGE,DEEP PERIDOT MC.,6V6
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),DEEP PERIDOT MC.,6V6
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),DK.BLUE MC. CC.,8U0
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),SILVERY BLUE ME.,8U9
sub75555-33040
ULTRA LUXURY PACKAGE,SILVERY BLUE ME.,8U9
sub75555-33040
ULTRA LUXURY PACKAGE,LAPIS LAZULI MC.,8V3
sub75555-33040
MOON ROOF-WITH(GLASS ROOF),LAPIS LAZULI MC.,8V3
sub75555-33040
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
MOON ROOF-WITH(GLASS ROOF),MERCURY GRAY MC.,1H9
sub75556-33040
MOON ROOF-WITH(TILT & SLIDE),MERCURY GRAY MC.,1H9
sub75556-33040
MOON ROOF-WITH(TILT & SLIDE),STARLIGHT BLACK GF.,217
sub75556-33040
MOON ROOF-WITH(GLASS ROOF),STARLIGHT BLACK GF.,217
sub75556-33040
ULTRA LUXURY PACKAGE,STARLIGHT BLACK GF.,217
sub75556-33040
MOON ROOF-WITH(GLASS ROOF),SABLE M.M.,4T5
sub75556-33040
MOON ROOF-WITH(GLASS ROOF),DEEP PERIDOT MC.,6V6
sub75556-33040
MOON ROOF-WITH(GLASS ROOF),DARK BLUE MC.,8P8
sub75556-33040
PREMIUM PLUS PACKAGE,DK.BLUE MC. CC.,8U0
sub75556-33040
MOON ROOF-WITH(GLASS ROOF),SILVERY BLUE ME.,8U9
sub75556-33040
ULTRA LUXURY PACKAGE,SILVERY BLUE ME.,8U9
sub75556-33040
ULTRA LUXURY PACKAGE,LAPIS LAZULI MC.,8V3
sub75556-33040
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
MOON ROOF-WITH(GLASS ROOF)
ULTRA LUXURY PACKAGE
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75850CGROMMET, NO.1
75851MOULDING, ROCKER PANEL, RH
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
DEEP PERIDOT MC.,6V6
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
75852MOULDING, ROCKER PANEL, LH
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
SIVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
75853CMOULDING, ROCKER PANEL, LOWER RH
75854CMOULDING, ROCKER PANEL, LOWER LH
75855AMOULDING, ROCKER PANEL, REAR RH
75856AMOULDING, ROCKER PANEL, REAR LH
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
7586733050MOULDING, FRONT PANEL
main75867-33050
9015960477
main90159-60477
9015960498
main90159-60498
9016240034
main90162-40034
9017906274
main90179-06274
9018306019
main90183-06019
9018904059
main90189-04059
9018906006
main90189-06006
9018906211
main90189-06211
9026904051
main90269-04051

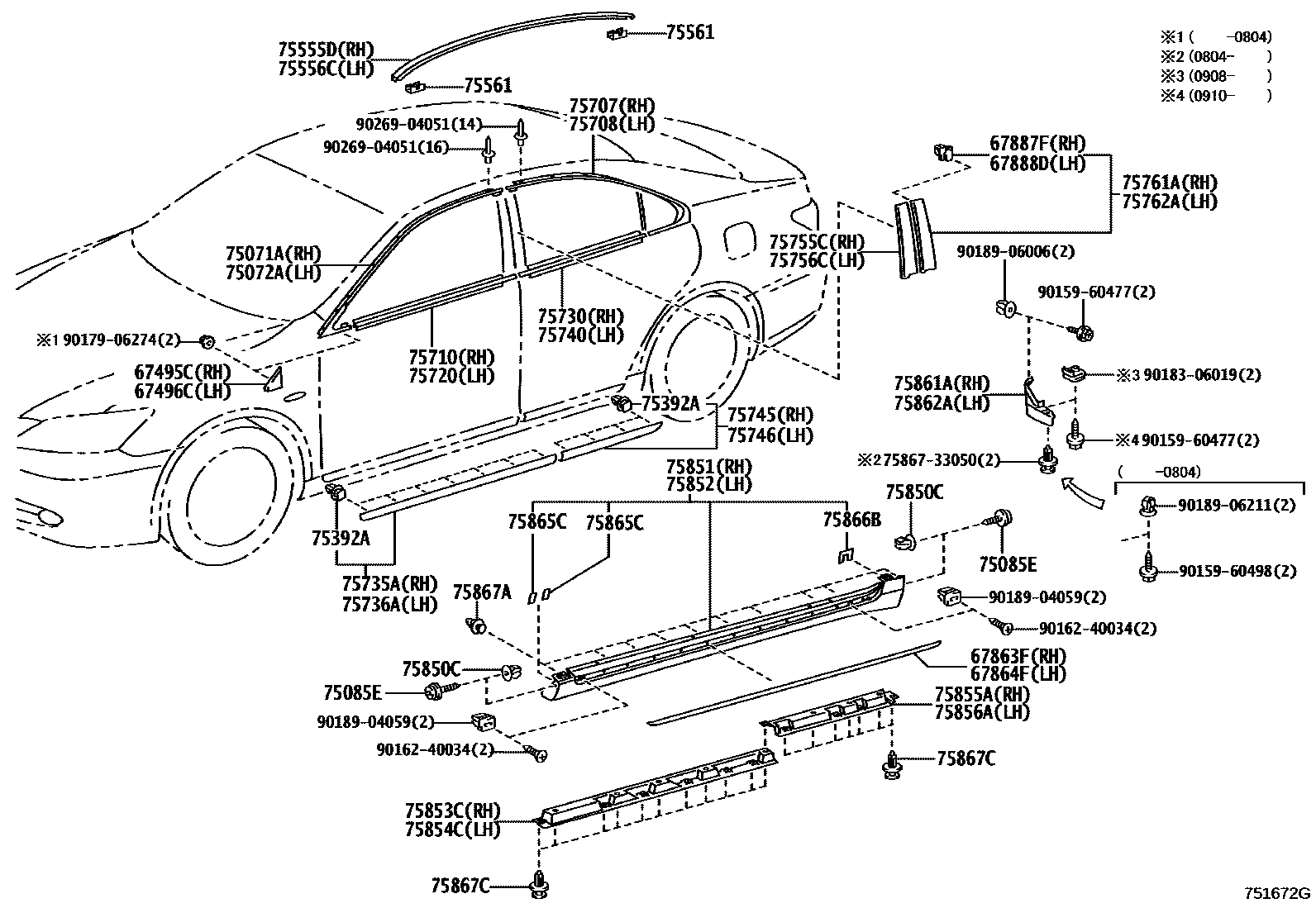

50 parts on this diagram · 1 diagram in section
