SEAT BELT & CHILD RESTRAINT SEAT

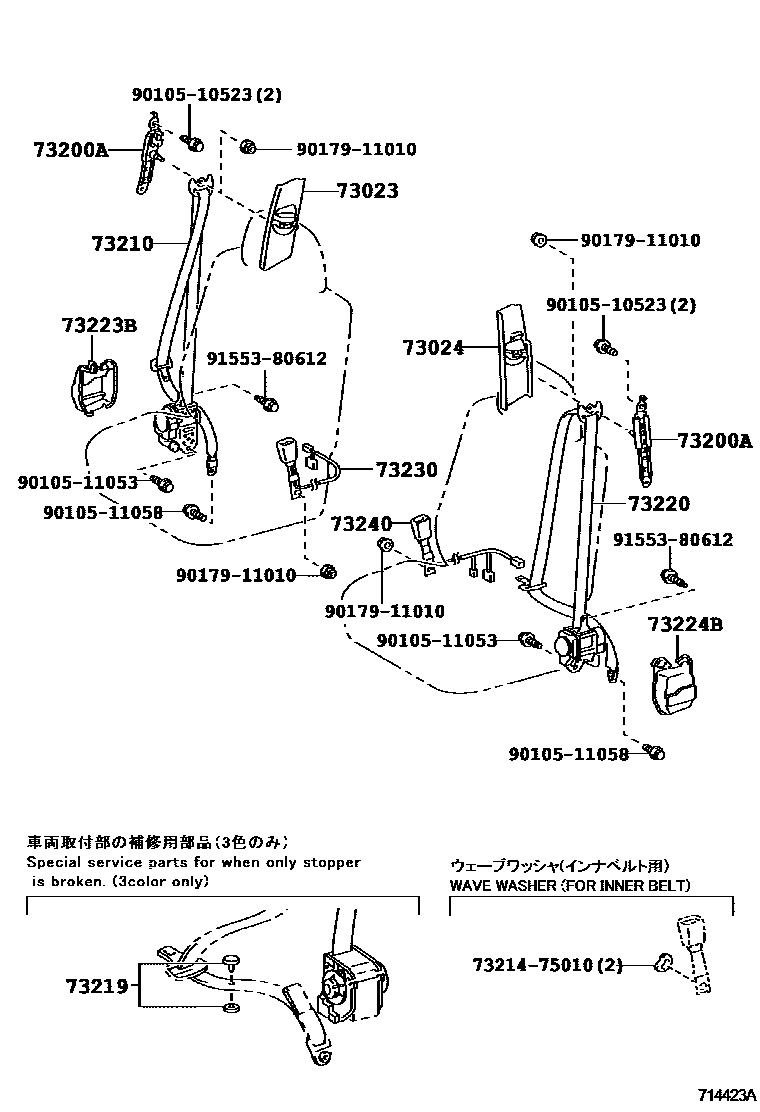

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-53010-A0i200605-200908
IVORY,TRIM0#
sub73023-53011
sub73023-53020
main73023-53010-B0i200605-200908
LT.GRAY,TRIM1#,2#
sub73023-53011
sub73023-53020
main73023-53020-A1i200908-201206
IVORY,TRIM0#
main73023-53020-B0i200908-201206
LT.GRAY,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-53010-A0i200605-200908
IVORY,TRIM0#
sub73024-53011
sub73024-53020
main73024-53010-B0i200605-200908
LT.GRAY,TRIM1#,2#
sub73024-53011
sub73024-53020
main73024-53020-A1i200908-201206
IVORY,TRIM0#
main73024-53020-B0i200908-201206
LT.GRAY,TRIM1#,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-53010i200605-200908
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-33450-A0i200607-200908
IVORY,TRIM0#
sub73210-33451
main73210-33450-B0i200607-200908
GRAY,TRIM1#
sub73210-33451
main73210-33450-C0i200607-200908
BLACK,TRIM2#
sub73210-33451
main73210-33451-A1i200908-201206
IVORY,TRIM0#
main73210-33451-B0i200908-201206
GRAY,TRIM1#
main73210-33451-C1i200908-201206
BLACK,TRIM2#
main73210-33460-A0i200605-200908
IVORY,TRIM0#
sub73210-33461
main73210-33460-B0i200605-200908
GRAY,TRIM1#
sub73210-33461
main73210-33460-C0i200605-200908
BLACK,TRIM2#
sub73210-33461
main73210-33461-A1i200908-201206
IVORY,TRIM0#
main73210-33461-B0i200908-201206
GRAY,TRIM1#
main73210-33461-C1i200908-201206
BLACK,TRIM2#
main73210-33510-A0i200908-201008
IVORY,TRIM0#
main73210-33510-B0i200908-201008
GRAY,TRIM1#
main73210-33510-C0i200908-201008
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
main73219-33010i200605-200908
BLACK
main73219-33020i200605-200908
GRAY
main73219-33030i200605-200908
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-33440-A0i200607-200908
IVORY,TRIM0#
sub73220-33441
main73220-33440-B0i200607-200908
GRAY,TRIM1#
sub73220-33441
main73220-33440-C0i200607-200908
BLACK,TRIM2#
sub73220-33441
main73220-33441-A1i200908-201206
IVORY,TRIM0#
main73220-33441-B0i200908-201206
GRAY,TRIM1#
main73220-33441-C1i200908-201206
BLACK,TRIM2#
main73220-33450-A0i200605-200908
IVORY,TRIM0#
sub73220-33451
main73220-33450-B0i200605-200908
GRAY,TRIM1#
sub73220-33451
main73220-33450-C0i200605-200908
BLACK,TRIM2#
sub73220-33451
main73220-33451-A1i200908-201206
IVORY,TRIM0#
main73220-33451-B0i200908-201206
GRAY,TRIM1#
main73220-33451-C1i200908-201206
BLACK,TRIM2#
main73220-33520-A0i200908-201008
IVORY,TRIM0#
main73220-33520-B0i200908-201008
GRAY,TRIM1#
main73220-33520-C0i200908-201008
BLACK,TRIM2#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-33030i200605-200908
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-33010i200605-200908
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33480-A0i200908-201008
IVORY,TRIM0#
main73230-33480-B0i200908-201008
LT.GRAY,TRIM1#
main73230-33480-C0i200908-201008
BLACK,TRIM2#
main73230-33610-A0i200605-200908
IVORY,TRIM0#
sub73230-33610
main73230-33610-A1i200908-201206
IVORY,TRIM0#
sub73230-33610
main73230-33610-B0i200605-201206
LT.GRAY,TRIM1#
sub73230-33610
main73230-33610-C0i200605-201206
BLACK,TRIM2#
sub73230-33610
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33600-A0i200605-200908
IVORY,TRIM0#
sub73230-33600
main73230-33600-A1i200908-201206
IVORY,TRIM0#
sub73230-33600
main73230-33600-B0i200605-201206
LT.GRAY,TRIM1#
sub73230-33600
main73230-33600-C0i200605-201206
BLACK,TRIM2#
sub73230-33600
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9010511058
main90105-11058
9017911010
main90179-11010
9155380612
main91553-80612

16 parts on this diagram · 2 diagrams in section
