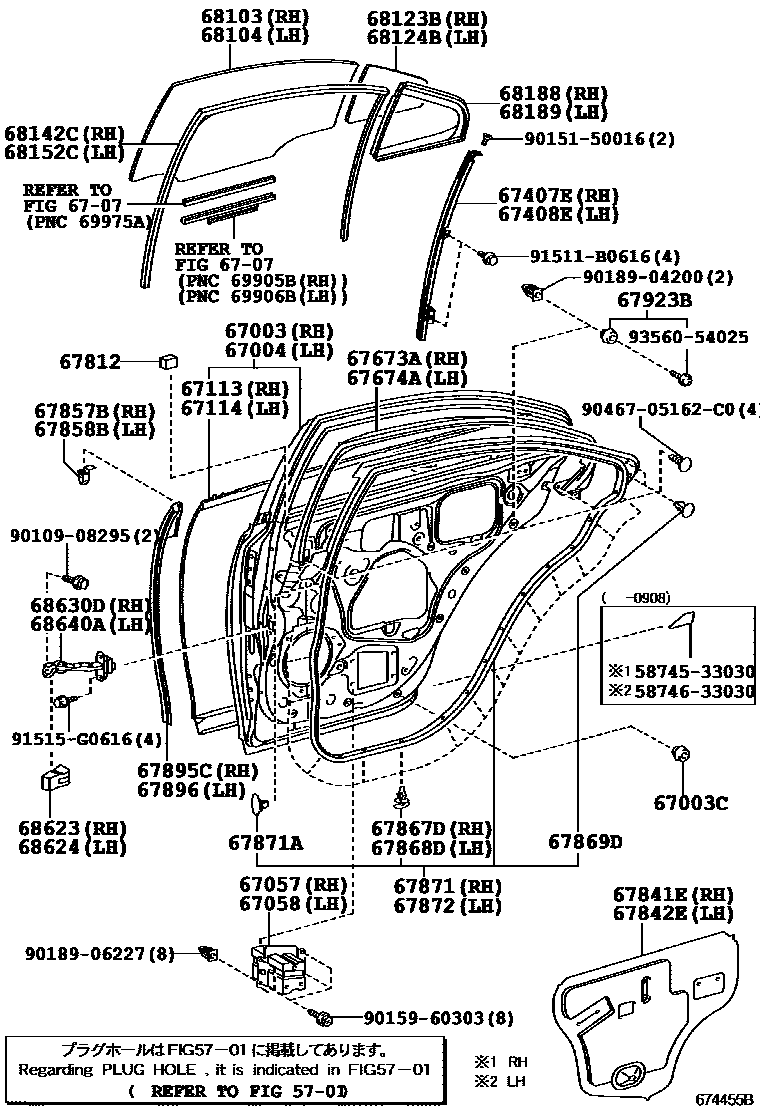

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-33180iGSV40200605-201206

67003CCUSHION, REAR DOOR PANEL

main90541-09069iGSV40200605-200908

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-33180iGSV40200605-201206

67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH

main67057-33030iGSV40200605-200908

67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH

main67058-33020iGSV40200605-200908

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-33090iGSV40200605-200908

67114PANEL, REAR DOOR, OUTER LH

main67114-33090iACV40,GSV40200605-200908

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-33080iGSV40200605-200908

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-33080iGSV40200605-200908

67673AGARNISH, REAR DOOR FRAME, RH

main67673-33110iGSV40200605-200908

67674AGARNISH, REAR DOOR FRAME, LH

main67674-33110iGSV40200605-200908

67812PAD, REAR DOOR SILENCER

main67812-33080iGSV40200605-200908

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-33090iGSV40200605-200908

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-33090iGSV40200605-200908

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-33050iGSV40200605-200908

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-33050iGSV40200605-200908

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iGSV40200605-200908

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iGSV40200605-200908

67869DCLIP, DOOR WEATHERSTRIP

main90467-06084iGSV40200605-200908

67871WEATHERSTRIP, REAR DOOR, RH

main67871-33090iGSV40200605-200908

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main90467-04034iGSV40200605-200908

67872WEATHERSTRIP, REAR DOOR, LH

main67872-33090iGSV40200605-200908

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-33020iGSV40200605-200908

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-33020iGSV40200605-200908

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-24030iGSV40200605-200908

main67923-48060iACV40,GSV40200908

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-33160iGSV40200605-201205

*UVCT,T=4.0,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-33160iGSV40200605-201205

*UVCT,T=4.0,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-33070iGSV40200605-201007

*UVCT,T=4.0,GREEN

sub68123-33071

main68123-33071iACV40,GSV40201008-201205

*UVCT,T=4.0,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-33070iGSV40200605-201007

*UVCT,T=4.0,GREEN

sub68124-33071

main68124-33071iACV40,GSV40201008-201205

*UVCT,T=4.0,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-33100iGSV40200605-200908

68152CRUN, REAR DOOR GLASS, LH

main68152-33100iGSV40200605-200908

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-33050iGSV40200605-200908

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-33050iGSV40200605-200908

68623COVER, DOOR CHECK, RH

main68621-53010iGSV40200605-200908

68624COVER, DOOR CHECK, LH

main68622-53010iGSV40200605-200908

68630DCHECK ASSY, REAR DOOR, RH

main68630-33080iGSV40200605-201005

sub68630-33081

main68630-33081iACV40,GSV40201006

68640ACHECK ASSY, REAR DOOR, LH

main68640-33080iGSV40200605-201005

sub68640-33081

main68640-33081iACV40,GSV40201006

5874533030PROTECTOR, QUARTER PANEL, FRONT RH

main58745-33030

5874633030PROTECTOR, QUARTER PANEL, FRONT LH

main58746-33030

9010908295

main90109-08295

9015150016

main90151-50016

9015960303

main90159-60303

9018904200

main90189-04200

9018906227

main90189-06227

9046705162C0

main90467-05162C0

91511B0616

main91511-B0616

91515G0616

main91515-G0616

9356054025

main93560-54025

50 parts on this diagram · 2 diagrams in section
