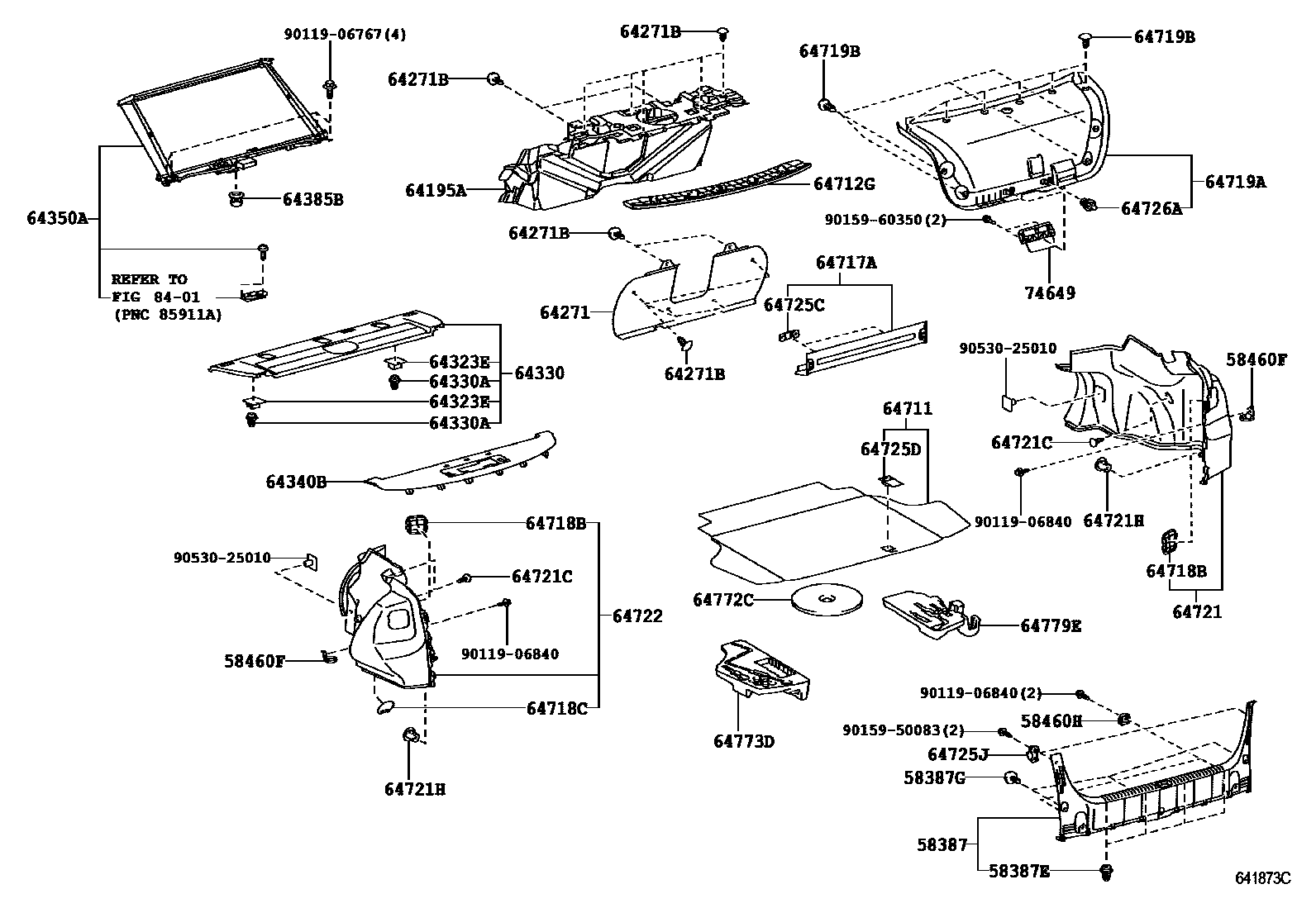

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
58460HSTRIKER ASSY, LUGGAGE HOLD BELT
64195AINSULATOR, ROOM PARTITION PANEL
64271BOARD, ROOM PARTITION, NO.1
64271BCLIP(FOR ROOM PARTITION BOARD)
64323ECLAMP, PACKAGE TRAY TRIM
64330PANEL ASSY, PACKAGE TRAY TRIM
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64385BCLIP
64711MAT, LUGGAGE COMPARTMENT FLOOR
64712GGARNISH, LUGGAGE COMPARTMENT, UPPER
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64725CRETAINER, LUGGAGE COMPARTMENT COVER
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726ACLIP, LUGGAGE TRIM, REAR
64773DCOVER, SPARE WHEEL, NO.2
64779ETRAY, SPARE WHEEL COVER
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
8401
9011906767
main90119-06767
9011906840
main90119-06840
9015950083
main90159-50083
9015960350
main90159-60350
9053025010
main90530-25010
39 parts on this diagram · 1 diagram in section
