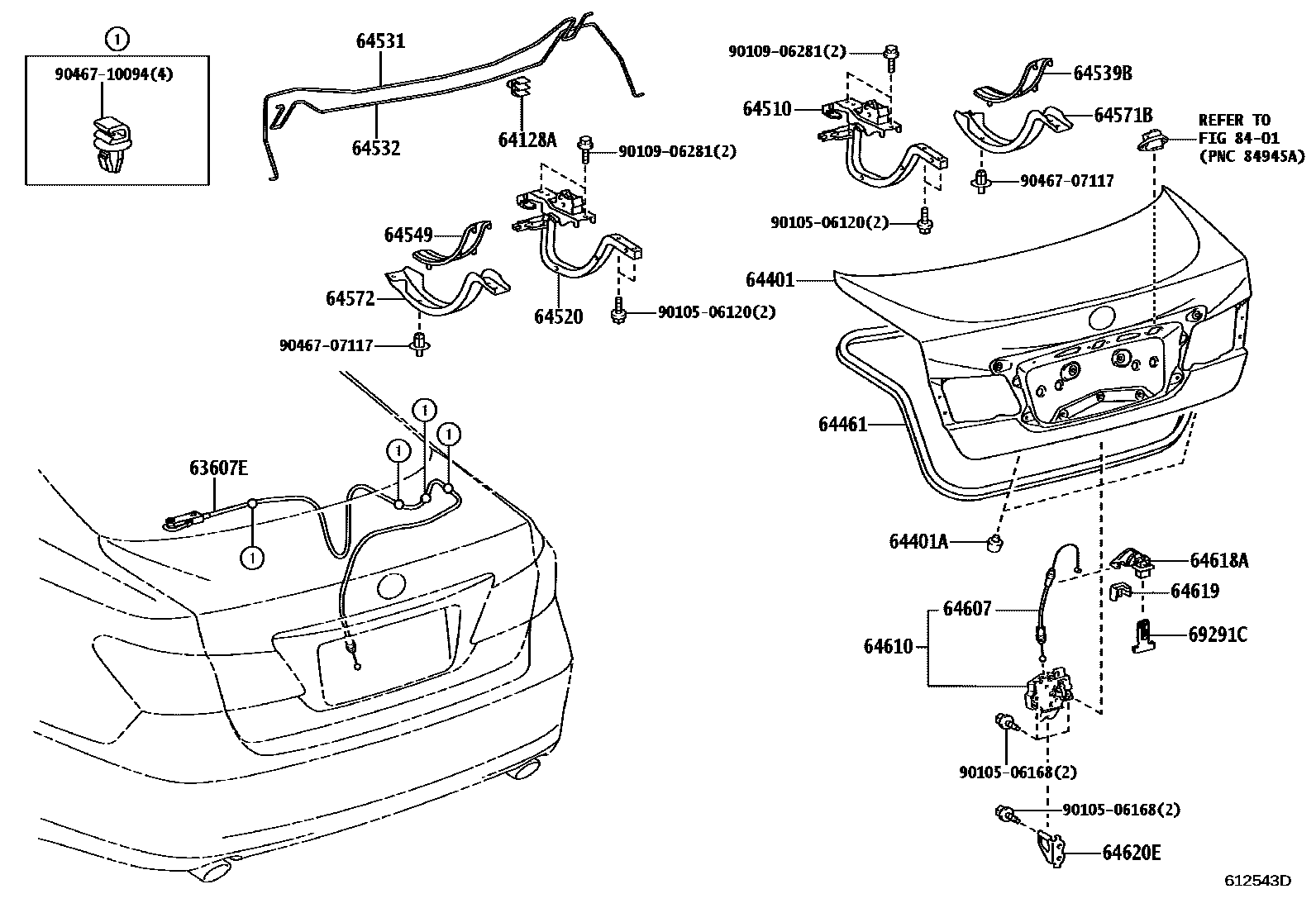

LUGGAGE COMPARTMENT DOOR & LOCK

63607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33150iACV40,GSV40200908

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-33010iACV40,GSV40200908-201206

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33490supersedes 64401-33480iACV40;GSV40..GCC200908-201206

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09116×2iGSV40200605-200908

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33080iGSV40200605-200908

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-33050iACV40,GSV40200908

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-33050iGSV40200605-200908

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-33230iACV40,GSV40200908

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-33230iACV40,GSV40200908

64539BPLATE, LUGGAGE DOOR HINGE ARM, RH

main64539-33020iGSV40200605-200908

64549PLATE, LUGGAGE DOOR HINGE ARM, LH

main64549-33020iGSV40200605-200908

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-33020iACV40,GSV40200908

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-33020iGSV40200605-200908

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33140iACV40,GSV40200908

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-33140iGSV40200605-200908

64618ACLAMP, LUGGAGE LOCK CONTROL CABLE

main64618-53010-C0iACV40,GSV40200908-201206

BLACK,TRIM0#,1#,2#

64619PLATE, LUGGAGE LOCK CONTROL CABLE

main64619-53010-C0iGSV40200605-200908

BLACK,TRIM0#,1#,2#

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-53010iACV40,GSV40200908

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-53010iACV40,GSV40200908

sub69291-53012

8401

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9046707117

main90467-07117

9046710094

main90467-10094

25 parts on this diagram · 1 diagram in section
