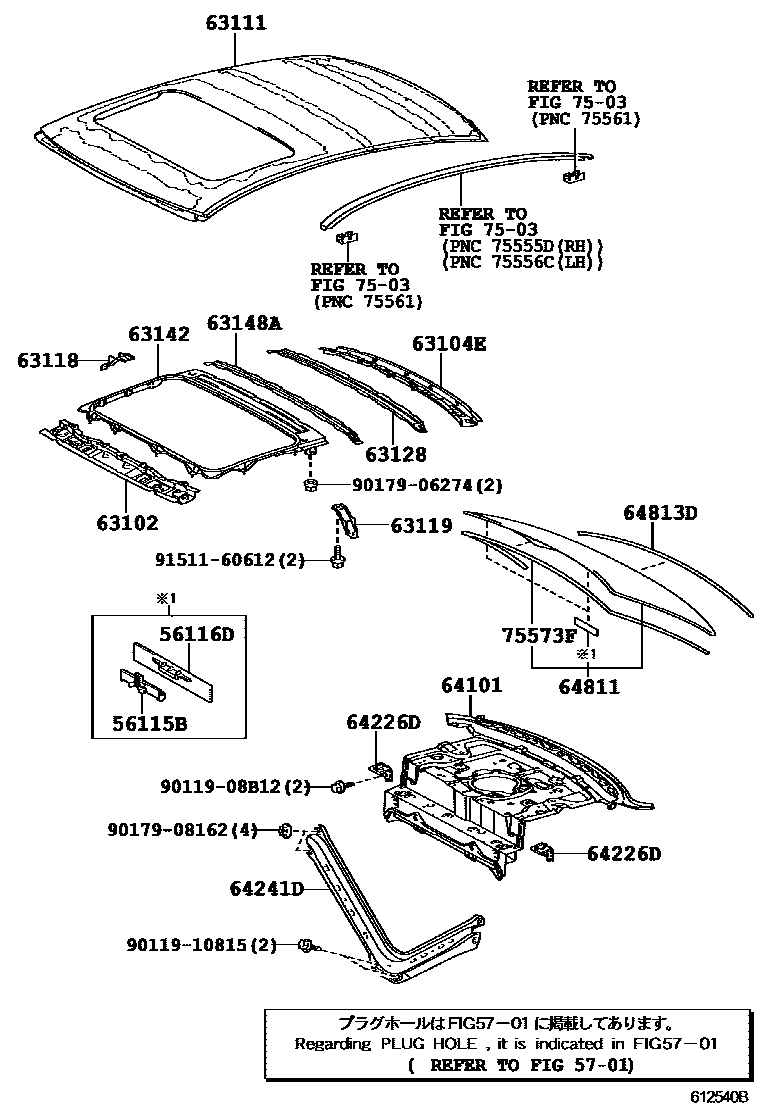

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1MOON ROOF 0003 1LARGE GLASS ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-22010iACV40,GSV40200605-201205

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iACV40,GSV40200605-201205

5701

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-33903iACV40;GSV40..GCC200605-200908

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-33901iGSV40200605-200901

sub63104-33903

main63104-33903iGSV40200902-200908

main63104-33902iGSV40..GCC200808-200901

MOON ROOF-WITH(GLASS ROOF)

sub63104-33904

63111PANEL, ROOF

main63111-33250iGSV40200605-200908

main63111-33280iACV40200908-201008

MAYDAY SYSTEM-WITH(TELEMATICS)

63118SUPPORT, ROOF PANEL, RH

main63118-33040iGSV40200605-200908

63119SUPPORT, ROOF PANEL, LH

main63118-33040iACV40;GSV40..GCC200605-200908

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-33010iACV40;GSV40..GCC200605-200908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33901iGSV40200605-200908

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-33040iGSV40200605-200908

64101PANEL SUB-ASSY, UPPER BACK

main64101-33300iGSV40200605-200908

64226DHANGER, REAR SEAT CUSHION SUPPORT, NO.2

main64226-33030iGSV40200605-200908

64241DPANEL, ROOM PARTITION

main64241-33030iGSV40200605-200908

64811GLASS, BACK WINDOW

main64801-33180iGSV40..CHI200607-201206

*UVCEHT,T=3.5,GREEN

main64801-33190iGSV40..GCC200605-200908

*UVCEHT,T=3.5,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-33060iGSV40200605-201206

sub56117-50140

7503

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-33030iACV40,GSV40200605-201206

9011908B12

main90119-08B12

9011910815

main90119-10815

9017906274

main90179-06274

9017908162

main90179-08162

9151160612

main91511-60612

23 parts on this diagram · 3 diagrams in section
