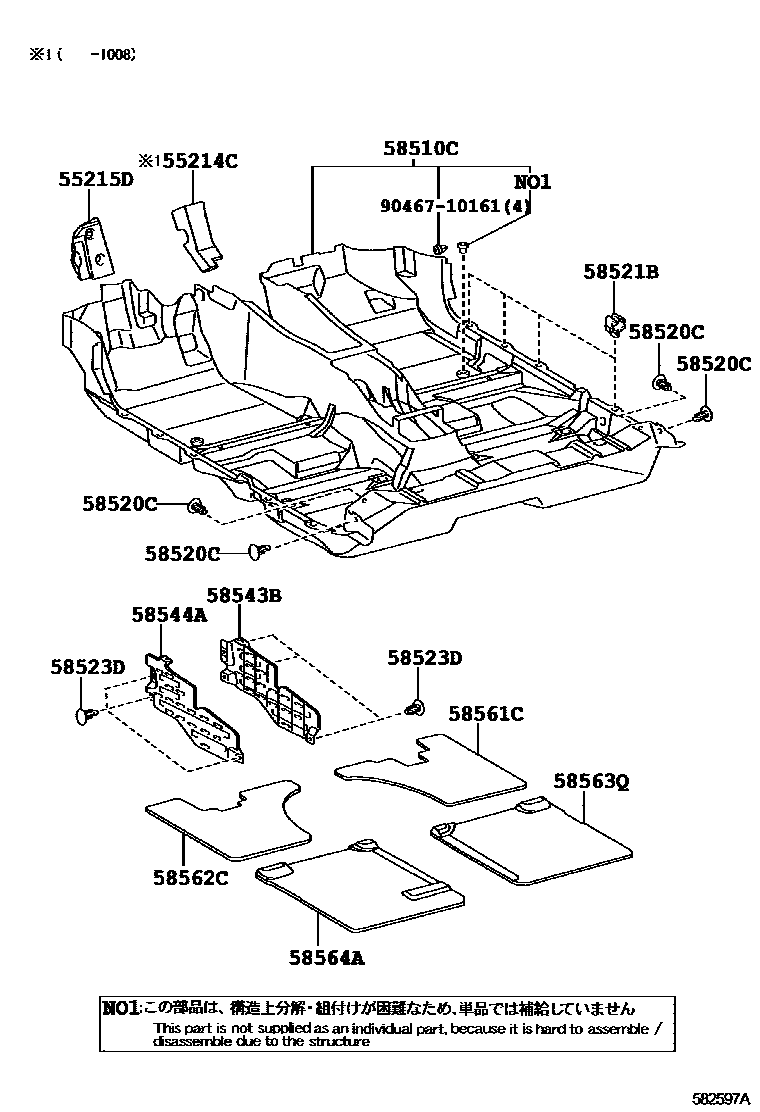

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510CCARPET ASSY, FRONT FLOOR, FRONT
AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM1#,2#
sub58510-33800
AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,CAMEL,TRIM0#
sub58510-33800
TAIWAN SPEC&PREMIUM PLUS PACKAGE&AUDIO-AM/FM 6CD-CHANGER 8SP,BLACK,TRIM1#,2#
sub58510-33740
AUDIO-AM/FM 6CD-CHANGER 8SP,BLACK,TRIM1#,2#
sub58510-33740
TAIWAN SPEC&PREMIUM PLUS PACKAGE&AUDIO-AM/FM 6CD-CHANGER 8SP,CAMEL,TRIM0#
sub58510-33740
AUDIO-AM/FM 6CD-CHANGER 8SP,CAMEL,TRIM0#
sub58510-33740
ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM1#,2#
sub58510-33750
ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM1#,2#
sub58510-33750
ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,CAMEL,TRIM0#
sub58510-33750
ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,CAMEL,TRIM0#
sub58510-33750
BLACK,TRIM1#,2#
TAIWAN SPEC,BLACK,TRIM1#,2#
TAIWAN SPEC&PREMIUM PLUS PACKAGE&AUDIO-AM/FM 6CD-CHANGER 8SP,BLACK,TRIM1#,2#
AUDIO-AM/FM 6CD-CHANGER 8SP,BLACK,TRIM1#,2#
RUSSIA SPEC,BLACK,TRIM1#,2#
CAMEL,TRIM0#
TAIWAN SPEC,CAMEL,TRIM0#
TAIWAN SPEC&PREMIUM PLUS PACKAGE&AUDIO-AM/FM 6CD-CHANGER 8SP,CAMEL,TRIM0#
AUDIO-AM/FM 6CD-CHANGER 8SP,CAMEL,TRIM0#
RUSSIA SPEC,CAMEL,TRIM0#
BLACK,TRIM1#,2#
ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM1#,2#
ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM1#,2#
CAMEL,TRIM0#
ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,CAMEL,TRIM0#
ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,CAMEL,TRIM0#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
9046710161
13 parts on this diagram · 1 diagram in section
