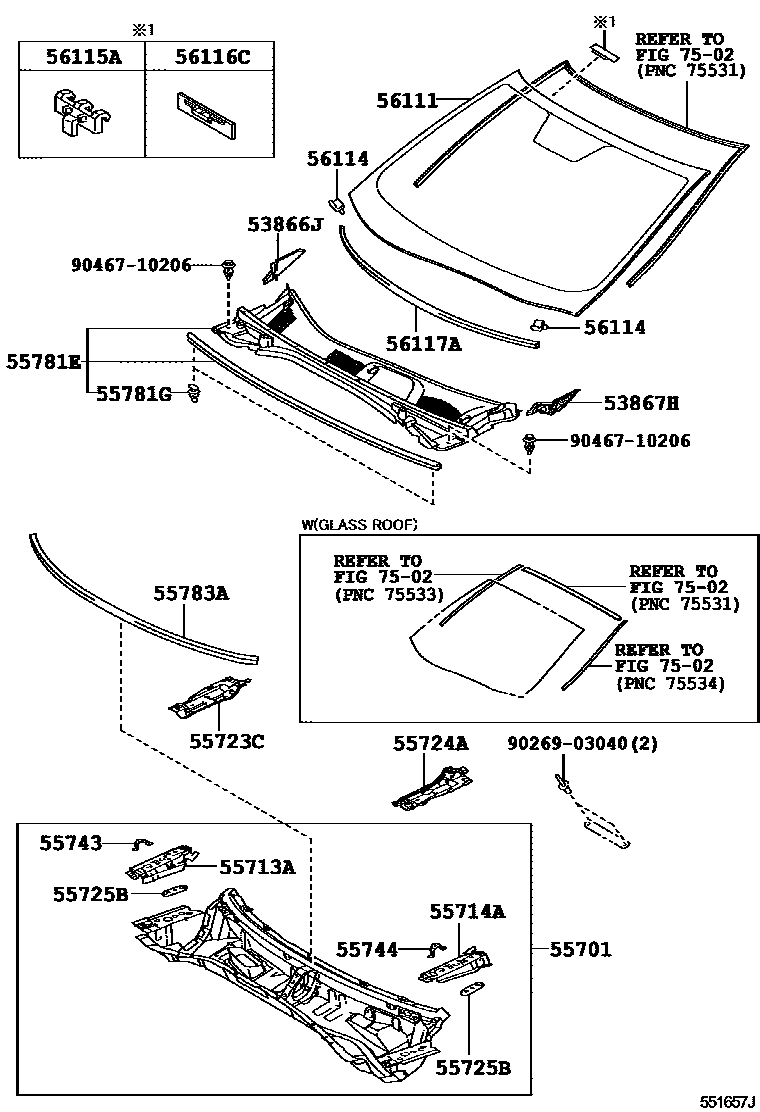

COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33070iGSV40200605-200908

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33070iGSV40¥1,480200605-200908

55701PANEL SUB-ASSY, COWL

main55700-33270iGSV40200605-200908

55713APANEL, COWL TOP SIDE, RH

main55713-33040iGSV40200605-200908

55714APANEL, COWL TOP SIDE, LH

main55714-33040iGSV40200605-200908

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33050iGSV40200605-200908

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33050iGSV40200605-200908

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020iGSV40¥400200605-200908

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main53731-33070iGSV40200605-200908

55744PANEL, COWL TOP OUTSIDE CORNER, LH

main53732-33060iGSV40200605-200908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33120iGSV40¥15,500200605-200908

sub55708-33121

main55708-33121iACV40,GSV40200908

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108iGSV40¥70200605-200908

55783APAD, COWL TOP SILENCER

main55783-33070iGSV40200605-200908

56111GLASS, WINDSHIELD

main56101-33907iGSV40¥0200605-200908

*LAM,T=4.76,GREEN

main56101-33908iGSV40..CHI¥0200908

*LAM,T=4.76,GREEN

main56101-33908iGSV40..CHI¥0200908

*LAM,T=4.76,GREEN,MOON ROOF-WITH(GLASS ROOF)

56114RETAINER, WINDSHIELD GLASS

main56114-22050iGSV40¥320200605-201205

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iGSV40¥160200605-201205

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGSV40¥120200605-201205

56117ADAM, WINDOW GLASS ADHESIVE

main56117-33110iGSV40¥820200605-200908

L=1430

sub56117-50140¥870

main56117-33110iACV40,GSV40¥820200908

L=1430,MOON ROOF-WITH(GLASS ROOF)

sub56117-50140¥870

7502

9026903040

main90269-03040¥50

9046710206

main90467-10206¥100

21 parts on this diagram · 1 diagram in section
