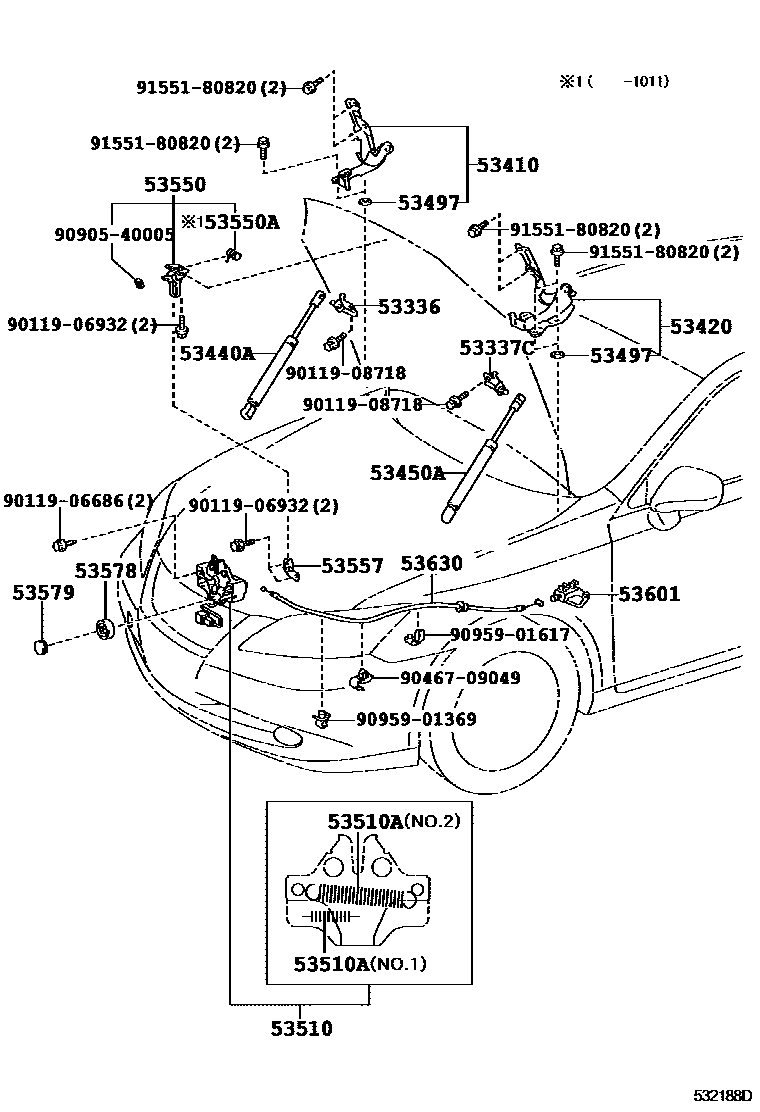

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53497PAD, HOOD HINGE, NO.1
T=2.9
T=1.0
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=20.5,NO.1:REFER ILLUST.
WD=2.0,CW=17,NO.2:REFER ILLUST.
53550HOOK ASSY, HOOD AUXILIARY CATCH
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53557CATCH, HOOD AUXILIARY HOOK
53578NUT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
9011906686
main90119-06686
9011906932
main90119-06932
9011908718
main90119-08718
9046709049
main90467-09049
9090540005
main90905-40005
9095901369
main90959-01369
9095901617
main90959-01617
9155180820
main91551-80820
24 parts on this diagram · 1 diagram in section
