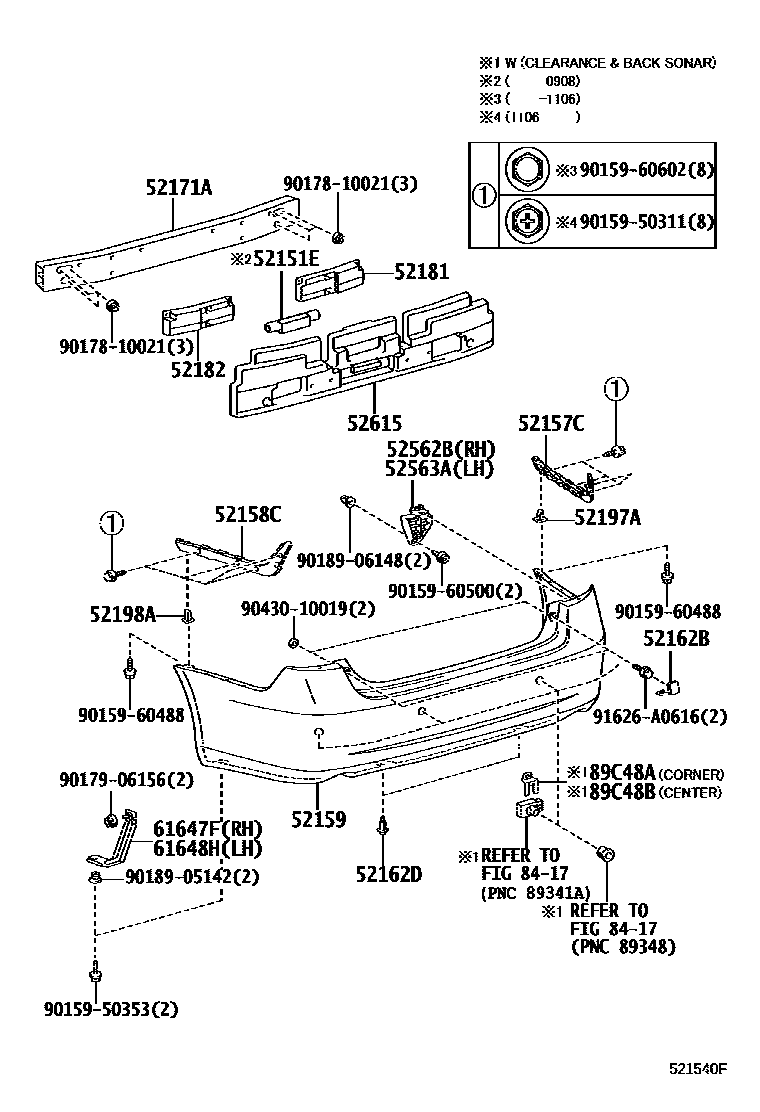

REAR BUMPER & BUMPER STAY
52151EBAR, REAR BUMPER
NO PAINT REQ.
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52162BPLATE, REAR BUMPER, NO.1
CLEARANCE SONER-WITH
52162DPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52615ABSORBER, REAR BUMPER ENERGY
61647FREINFORCEMENT, WHEEL HOUSE, RH
61648HREINFORCEMENT, WHEEL HOUSE, LH
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE SONER-WITHOUT
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE SONER-WITHOUT
9015950311
9015950353
9015960488
9015960500
9015960602
9017810021
9017906156
9018905142
9018906148
9043010019
91626A0616
30 parts on this diagram · 1 diagram in section
