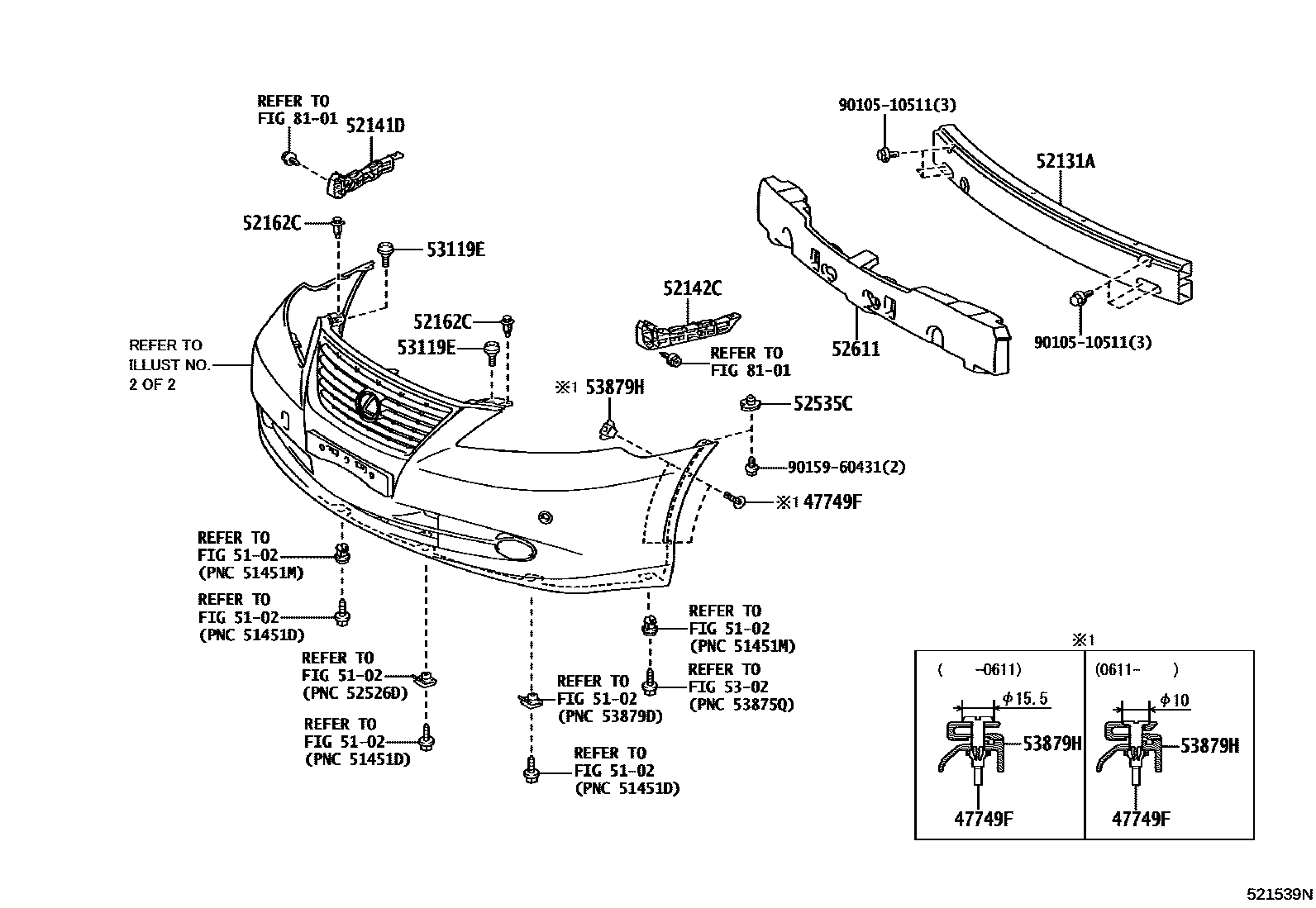

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-50090iACV40,GSV40200611-201206

main47749-58010iGSV40200605-200610

5102

52131AREINFORCEMENT, FRONT BUMPER

main52021-33160iGSV40200605-201206

52141DSTAY, FRONT BUMPER, RH

main52145-33050iGSV40200605-200908

52142CSTAY, FRONT BUMPER, LH

main52146-33050iGSV40200605-200908

52162CPIECE, FRONT BUMPER

main52161-16010iGSV40200605-200908

sub52161-0K040

52535CRETAINER, FRONT BUMPER SIDE

main52535-30150iACV40,GSV40200605-200908

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33170iGSV40200605-200908

main52611-33190iACV40,GSV40200908

5302

53119EPROTECTOR, RADIATOR GRILLE

main53119-33140iGSV40200605-200607

sub53119-33141

main53119-33141iACV40,GSV40200607-200908

53879HRETAINER, FRONT FENDER LINER

main53879-50020iGSV40200611-201206

main53879-58010iGSV40200605-200610

8101

9010510511

main90105-10511

9015960431

main90159-60431

14 parts on this diagram · 4 diagrams in section
