FRONT AXLE ARM & STEERING KNUCKLE

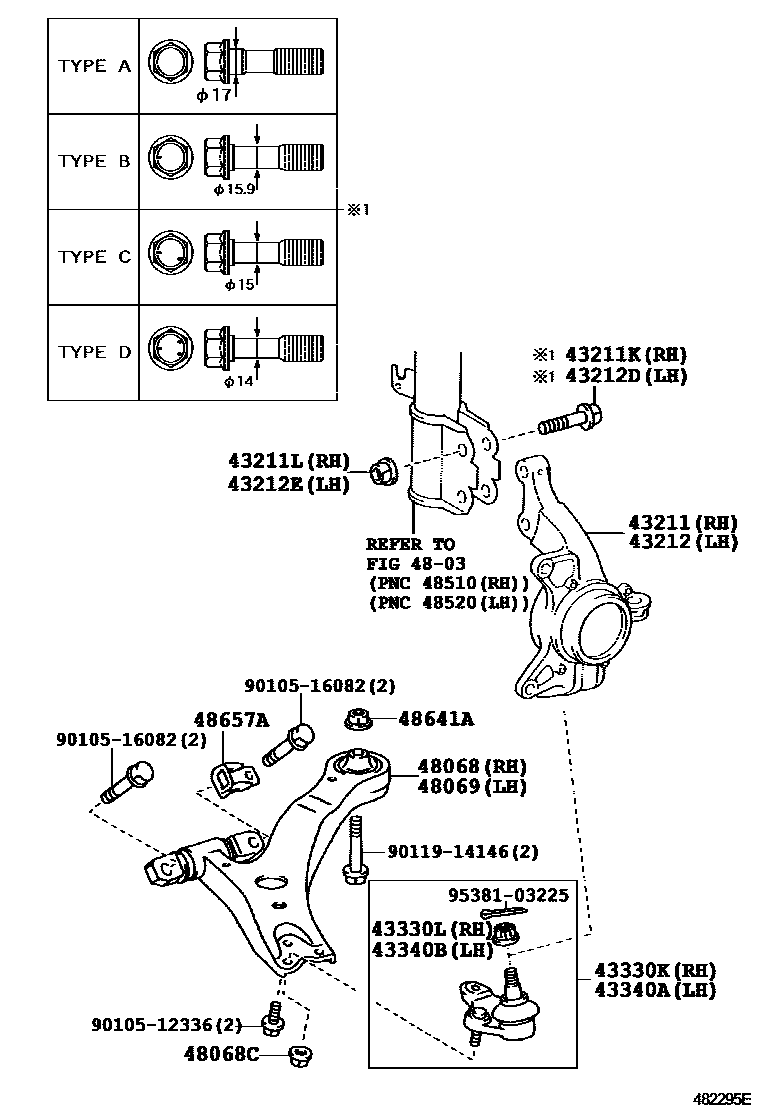

Parts diagram
43211KNUCKLE, STEERING, RH
main43211-58010i200605-200908
43211KBOLT (FOR STEERING KNUCKLE RH)
main90105-17012i200605-200908
OD=17,TYPE A:REFER ILLUST.
main90105-17013i200605-200908
OD=15.9,TYPE B:REFER ILLUST.
main90105-17014i200605-200908
OD=15,TYPE C:REFER ILLUST.
main90105-17015i200605-200908
OD=14,TYPE D:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
main90178-17002i200605-200908
43212KNUCKLE, STEERING, LH
main43212-58010i200605-200908
43212DBOLT (FOR STEERING KNUCKLE LH)
main90105-17012i200605-200908
OD=17,TYPE A:REFER ILLUST.
main90105-17013i200605-200908
OD=15.9,TYPE B:REFER ILLUST.
main90105-17014i200605-200908
OD=15,TYPE C:REFER ILLUST.
main90105-17015i200605-200908
OD=14,TYPE D:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
main90178-17002i200605-200908
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-39775i200605-201102
sub43330-39845
main43330-39845i201103
main43330-39855i201103-201107
RUSSIA SPEC
sub43330-39845
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90171-14003i200605-200908
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43340-39545i200605-201102
sub43340-39605
main43340-39605i201103
main43340-39615i201103-201107
RUSSIA SPEC
sub43340-39605
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90171-14003i200605-200908
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-33060i200605-201105
sub48068-33070
main48068-33070i201106
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
main90178-12015i200605-200908
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-33060i200605-201105
sub48069-33070
main48069-33070i201106
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
main90179-14068i200605-200908
48657ASTOPPER, FRONT LOWER ARM BUSH
main48657-28010i200605-200908
9010512336
main90105-12336
9010516082
main90105-16082
9011914146
main90119-14146
9538103225
main95381-03225

20 parts on this diagram · 1 diagram in section
