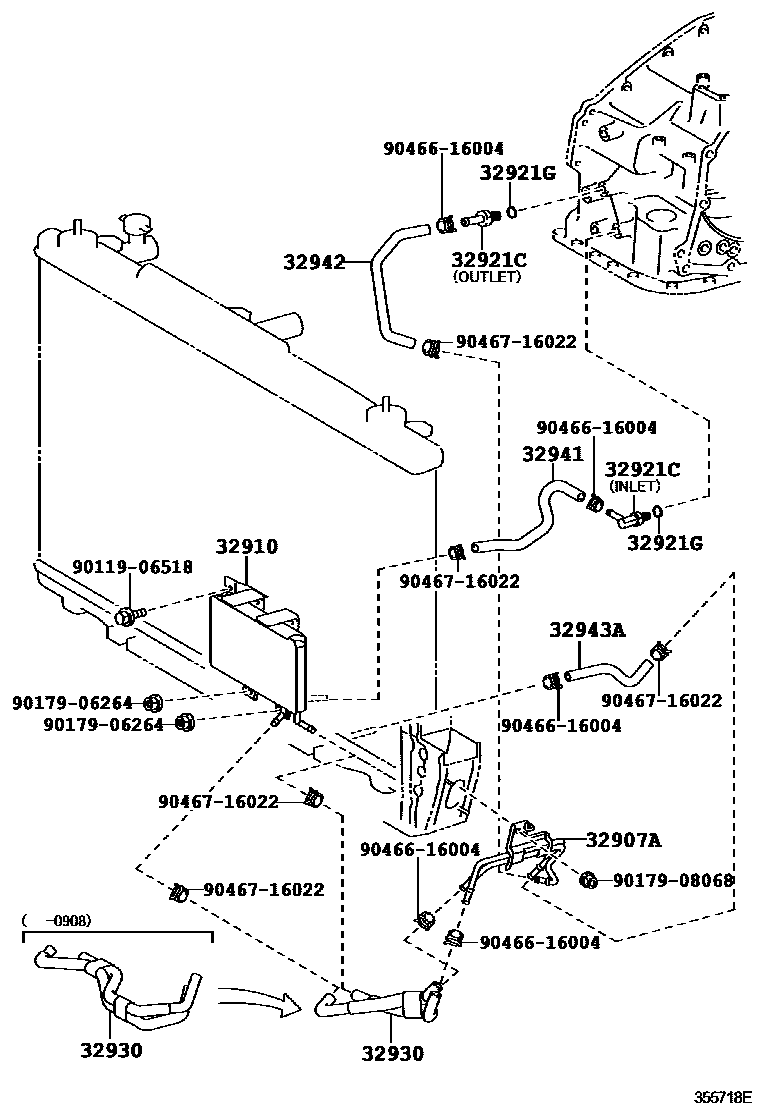

OIL COOLER & TUBE (ATM)

0001 1U660E 0002 1U660E 0003 1U250E

32907ATUBE, OIL COOLER

main32907-33140iGSV40..GCC200605-200908

main32907-33160iGSV40..GCC200908

32910COOLER ASSY, OIL

main32910-33090iGSV40..GCC200605-200908

32921TUBE, OIL COOLER INLET, NO.1

main32921-33160iACV40¥1,240200908

32921CUNION(FOR OIL COOLER TUBE)

main90404-14027iGSV40¥750200605-200908

OUTLET

main90404-16031iACV40¥340200908

NO.1

main90407-14032iGSV40¥400200605-200908

INLET

main90407-16010iACV40¥440200908

NO.2

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iACV40¥170200908

main90301-11006iGSV40¥220200605-201108

main90301-11031iGSV40¥200201108

32930ACCESSORY ASSY, OIL COOLER

main32930-33010iGSV40..GCC200605-200908

main32930-33030iGSV40..GCC200908

32941HOSE, OIL COOLER INLET, NO.1

main32941-33070iGSV40¥1,850200605-200908

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-33050iGSV40..CHI¥1,840200607-201006

sub32942-33150

main32942-33060iGSV40..GCC200605-200908

main32942-33150iGSV40..CHI201007

sub90445-17178¥820

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-33100iGSV40..GCC200605-200908

main32943-33140iACV40¥1,360200912

sub90445-17117¥840

main32943-33260iACV40¥1,360200908-200911

sub90445-17117¥840

9011906518

main90119-06518¥120

9017906264

main90179-06264¥100

9017908068

main90179-08068¥100

9046616004

main90466-16004¥180

9046716022

main90467-16022¥300

14 parts on this diagram · 3 diagrams in section
