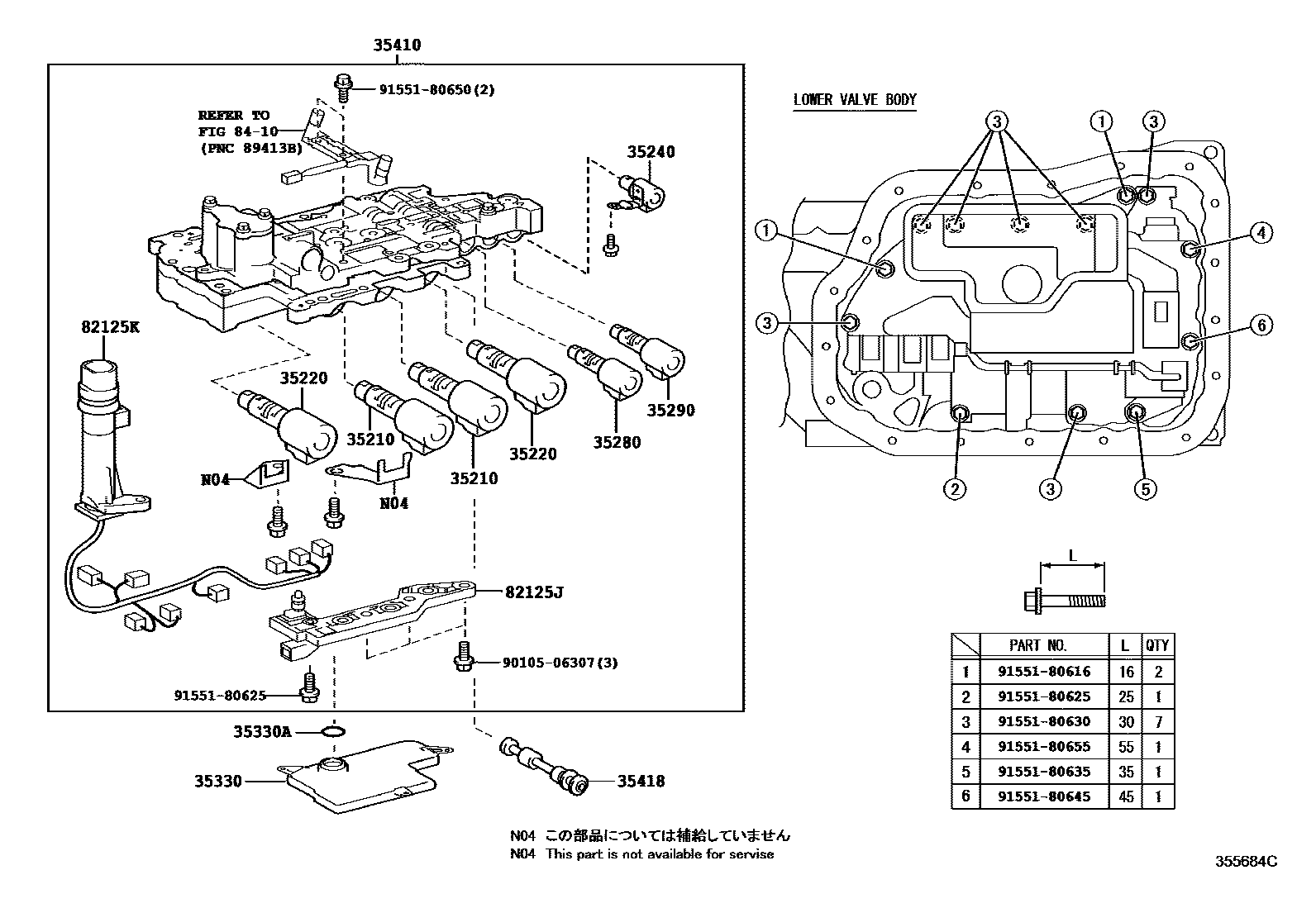

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E 0002 1U250E 0003 1U660E 0004 1U250E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33020iACV40200908

main35210-33030iGSV40200605-200908

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33020iACV40200908

main35220-33040iGSV40200605-200908

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-33030iACV40200908

main35240-33040iGSV40200605-200812

sub35240-73010

main35240-73010iGSV40200812-200908

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52040iGSV40200605-200908

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33020iACV40200908

main35290-33040iGSV40200605-200908

35330STRAINER ASSY, VALVE BODY OIL

main35330-08010iACV40200908

main35330-33050iGSV40200605-200908

sub35330-48020

35330ARING, O (FOR OIL STRAINER)

main90301-27010iGSV40200605-201108

main90301-27015iGSV40201108

35410BODY ASSY, TRANSMISSION VALVE

main35410-33131iACV40200908

main35410-33170iGSV40200605-200606

sub35410-33171

main35410-33171iGSV40200606-201006

main35410-33240iGSV40201006

35418VALVE, MANUAL

main35418-33010iACV40200908

main35418-33020iGSV40200605-200812

sub35418-73010

main35418-73010iGSV40200812-200908

82125JWIRE, TRANSMISSION

main82125-33090iGSV40200605-201006

sub82125-33091

main82125-33150iGSV40201006-201206

sub82125-33151

main82125-48010iACV40200908-201206

82125KWIRE, TRANSMISSION

main82125-33100iGSV40200605-201006

main82125-33160iGSV40201006-201206

8410

9010506307

main90105-06307

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180645

main91551-80645

9155180650

main91551-80650

9155180655

main91551-80655

20 parts on this diagram · 4 diagrams in section
