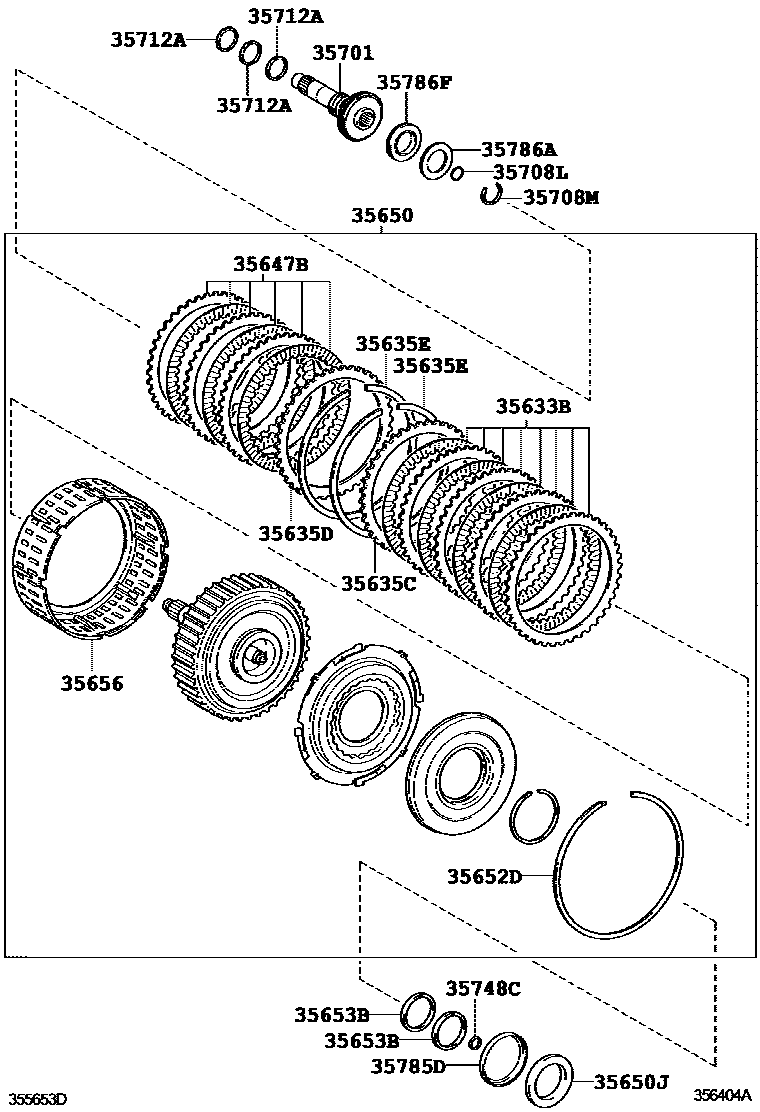

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635CCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.1
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
35635DCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.2
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
35635ERING, SNAP (FOR DIRECT MULTIPLE DISC CLUTCH)
35647BPLATE, CLUTCH, NO.2
35650CLUTCH ASSY, REAR MULTIPLE DISC
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
sub90374-48009
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
35653RING, REAR CLUTCH OIL SEAL, OUTER
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35656PISTON, DIRECT CLUTCH, NO.2
35708MRING, SNAP (FOR INTERMEDIATE SHAFT)
35748CRING, INTERMEDIATE SHAFT OIL SEAL
35785DRACE, THRUST BEARING, NO.4
sub35785-48020
35786FBEARING, THRUST NEEDLE ROLLER
19 parts on this diagram · 2 diagrams in section
