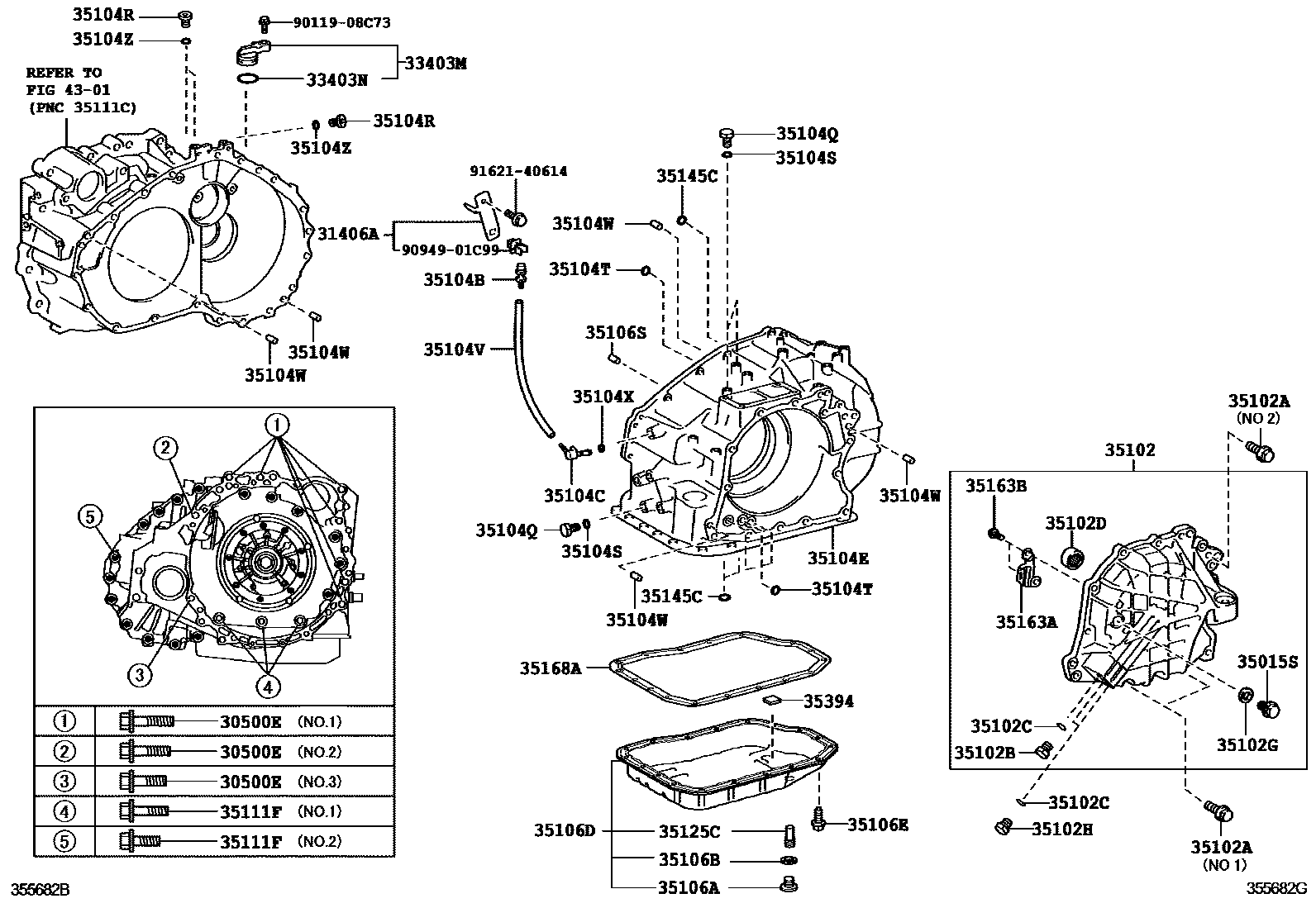

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX41-28,NO.3
*12-1.25PX55-30,NO.1
*12-1.25PX50-30,NO.2
*10-1.25PX50-30,NO.2
*10-1.25PX65-30,NO.1
31406ABRACKET SUB-ASSY, FLEXIBLE HOSE
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX30-25
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,NO.2
35102BPLUG(FOR TRANSAXLE REAR COVER)
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
35102GGASKET (FOR TRANSAXLE REAR COVER )
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
35104BPLUG, BREATHER, NO.1 (ATM)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104ZGASKET (FOR TRANSAXLE CASE)
35106EBOLT (FOR TRANSAXLE OIL PAN)
35106SPIN, RING (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*6-1.00PX50-25,NO.4
*8-1.25PX72-30,NO.3
*8-1.25PX42-30,NO.1
*8-1.25PX50-30,NO.2
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,NO.2
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
35145CGASKET, TRANSAXLE CASE
35163APLATE, TRANSAXLE REAR COVER
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
4301
9011908C73
main90119-08C73
9094901C99
main90949-01C99
9162140614
main91621-40614
39 parts on this diagram · 2 diagrams in section
