TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

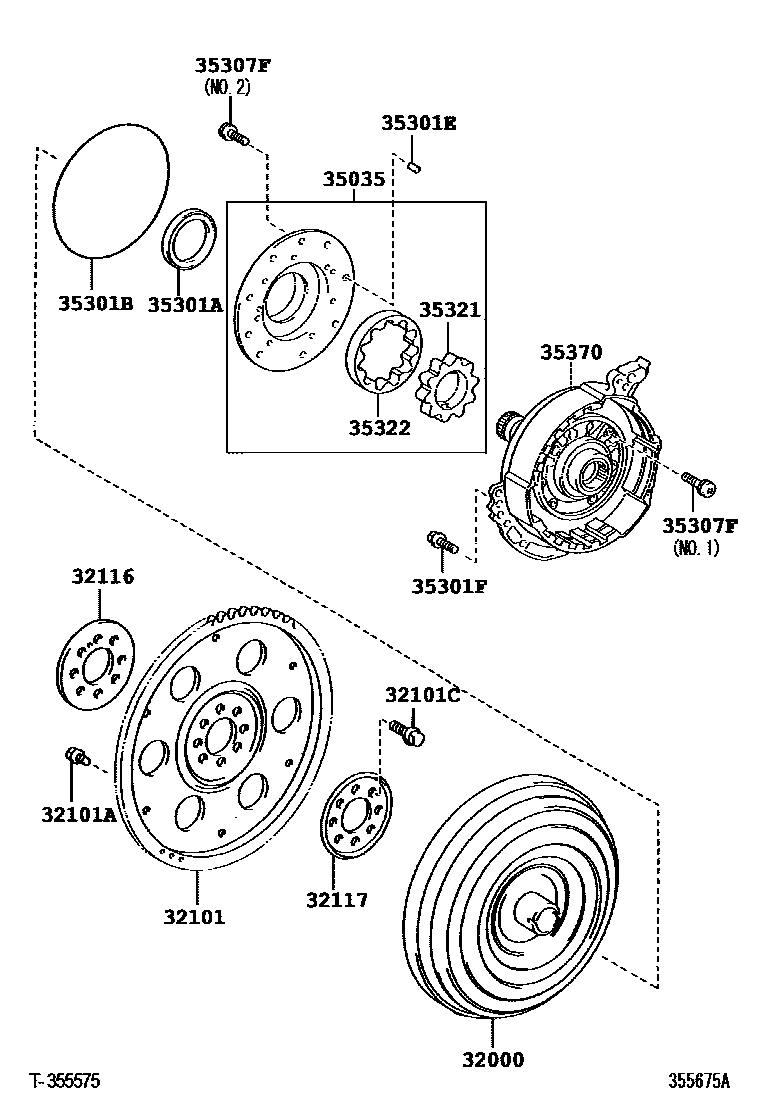

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-28150i200908-201206
main32000-33131i200605-200812
sub32000-33132
main32000-33132i200812-201206
sub32000-33160
main32000-33133i200905-201103
sub32000-33132
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-28040i200908
main32101-48010i200605-200908
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200605-200908
*9-1.25PX12.4-7.3,BLACK
main90119-09025i200605-200908
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i200605-200908
*10-1.25PX18-13
main90105-10048i200908-201003
*10-1.25PX18-13,(J)
main90105-12184i201005
*12-1.25PX22-16
sub90105-12384
main90105-12184i200908-201005
*12-1.25PX22-16,(J)
sub90105-12384
main90105-A0022i200908-201003
*10-1.25PX18-13,(L)
sub90105-10048
main90105-A0060i200908-201005
*12-1.25PX22-16,(L)
sub90105-12184
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200908
main32116-32020i200605-200908
32117SPACER, DRIVE PLATE, REAR
main32117-20060i200908
main32117-32020i200605-200908
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-08010i200908
(L)
main35035-33020i200908
(J)
sub35035-12080
main35035-33030i200605-201108
sub35035-33031
main35035-33031i201108
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38083i200908
main90311-43010i200605-200908
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-33010i201105-201206
main90301-99099i200908-201206
main90301-99158i200605-201105
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
main90250-08040i200605-200908
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08198i200908
*8-1.25PX28-28
main91551-80835i200605-200908
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
main90080-14044i200908
(L)
main90148-60027i200908
(J)
main90148-60064i200605-200908
NO.1
main90148-60065i200605-200908
NO.2
35321GEAR, FRONT OIL PUMP DRIVE
main35321-08010i200908
T=11.715,MARK A,(L)
main35321-08020i200908
T=11.715,MARK B,(L)
main35321-08030i200908
T=11.715,MARK C,(L)
main35321-08040i200908
T=11.715,MARK D,(L)
main35321-08050i200908
T=11.715,MARK E,(L)
main35321-33060i200908
T=11.715,MARK A,(J)
main35321-33070i200908
T=11.715,MARK B,(J)
main35321-33080i200908
T=11.715,MARK C,(J)
main35321-33090i200908
T=11.715,MARK D,(J)
main35321-33100i200908
T=11.715,MARK E,(J)
main35321-33110i200605-201010
T=11.567,MARK 1
sub35321-33111
main35321-33111i201010
T=11.567,MARK 1
main35321-33120i200605-201010
T=11.567,MARK 2
sub35321-33121
main35321-33121i201010
T=11.567,MARK 2
main35321-33130i200605-201010
T=11.567,MARK 3
sub35321-33131
main35321-33131i201010
T=11.567,MARK 3
main35321-33140i200605-201010
T=11.567,MARK 4
sub35321-33141
main35321-33141i201010
T=11.567,MARK 4
main35321-33150i200605-201010
T=11.567,MARK 5
sub35321-33151
main35321-33151i201010
T=11.567,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-08010i200908
T=11.715,MARK A,(L)
main35322-08020i200908
T=11.715,MARK B,(L)
main35322-08030i200908
T=11.715,MARK C,(L)
main35322-08040i200908
T=11.715,MARK D,(L)
main35322-08050i200908
T=11.715,MARK E,(L)
main35322-33060i200908
T=11.715,MARK A,(J)
main35322-33070i200908
T=11.715,MARK B,(J)
main35322-33080i200908
T=11.715,MARK C,(J)
main35322-33090i200908
T=11.715,MARK D,(J)
main35322-33100i200908
T=11.715,MARK E,(J)
main35322-33110i200605-200908
T=11.567,MARK 1
main35322-33120i200605-200908
T=11.567,MARK 2
main35322-33130i200605-200908
T=11.567,MARK 3
main35322-33140i200605-200908
T=11.567,MARK 4
main35322-33150i200605-200908
T=11.567,MARK 5
35370SHAFT ASSY, STATOR
main35370-06010i200908
(L)
main35370-28010i200908
(J)
sub35370-12110
main35370-33031i200605-200908
