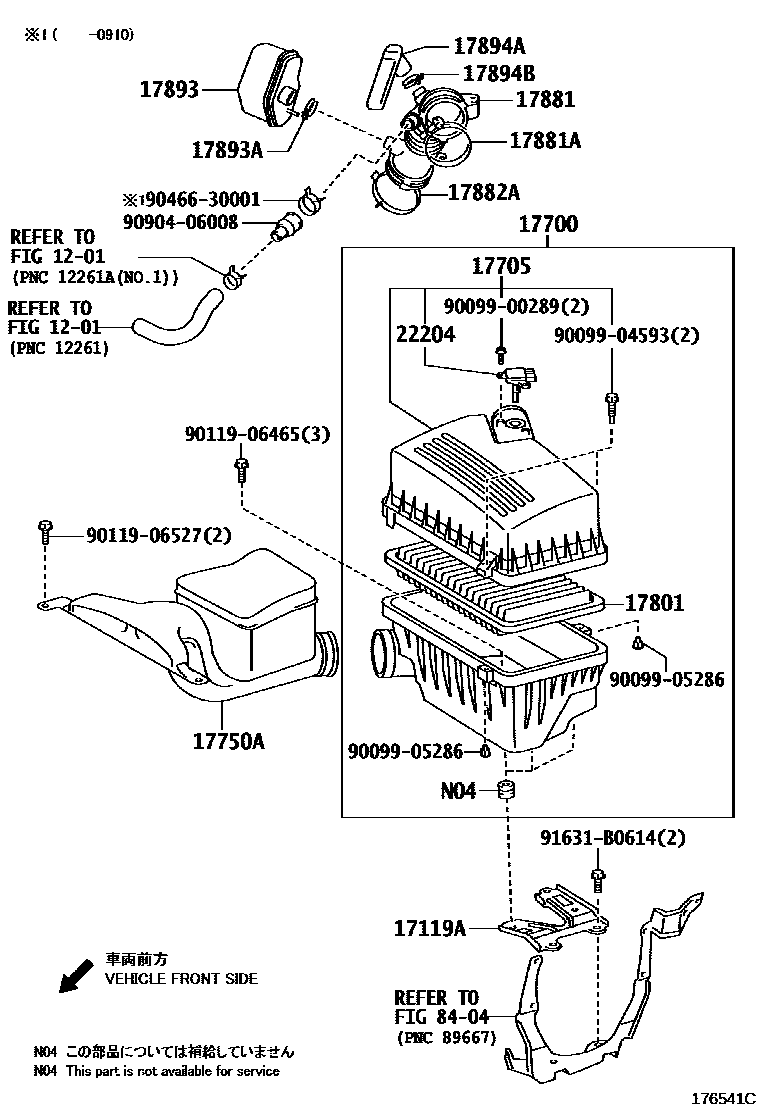

AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17750AINLET ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
8404
9009900289
main90099-00289
9009904593
main90099-04593
9009905286
main90099-05286
9011906465
main90119-06465
9011906527
main90119-06527
9046630001
main90466-30001
9090406008
main90904-06008
91631B0614
main91631-B0614
23 parts on this diagram · 2 diagrams in section
