RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86221DPANEL, RADIO RECEIVER

main86221-33080iMCV30..ARL200107-200406

main86221-33081iMCV30..ARL200406

main86221-33090iMCV30..GCC200107-200406

main86221-33091iMCV30..GCC200406

86230CONTROLLER ASSY, STEREO COMPONENT

main86230-33040iMCV30..ARL200107-200406

main86230-33041iMCV30..ARL200406

main86230-33050iMCV30..GCC200107-200406

main86230-33051iMCV30..GCC200406

86273MAGAZINE, DISC PLAYER

main86273-60040iMCV30..ARL200107-200406

86274BRACKET, DISC PLAYER

main86274-33210iMCV30..ARL200107-200208

main86274-33250iMCV30..ARL200208-200406

86274ABRACKET, DISC PLAYER

main86274-33220iMCV30..ARL200107-200208

main86274-33260iMCV30..ARL200208-200406

86275ACHANGER, DISC PLAYER

main86275-33090iMCV30..ARL200107-200208

main86275-33100iMCV30..ARL200208-200406

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-33120iMCV30..ARL200107-200307

sub86280-33121

main86280-33121iMCV30..ARL200307-200406

main86280-33122iMCV30..ARL200406

main86280-33130iMCV30..GCC200107-200307

sub86280-33131

main86280-33131iMCV30..GCC200307-200406

main86280-33132iMCV30..GCC200406

86285BRACKET, AMPLIFIER, NO.1

main86285-33060iMCV30..GCC200107-200406

main86285-33080iMCV30..ARL200107-200406

86286BRACKET, AMPLIFIER, NO.2

main86286-33050iMCV30..ARL200107-200406

main86286-33060iMCV30..GCC200107-200406

9001022027

main90010-22027

9001022044

main90010-22044

9015350010

main90153-50010

9017906274

main90179-06274

91511B0616

main91511-B0616

91621J0814

main91621-J0814

91631J0612

main91631-J0612

91635G0616

main91635-G0616

9321915014

main93219-15014

9415180600

main94151-80600

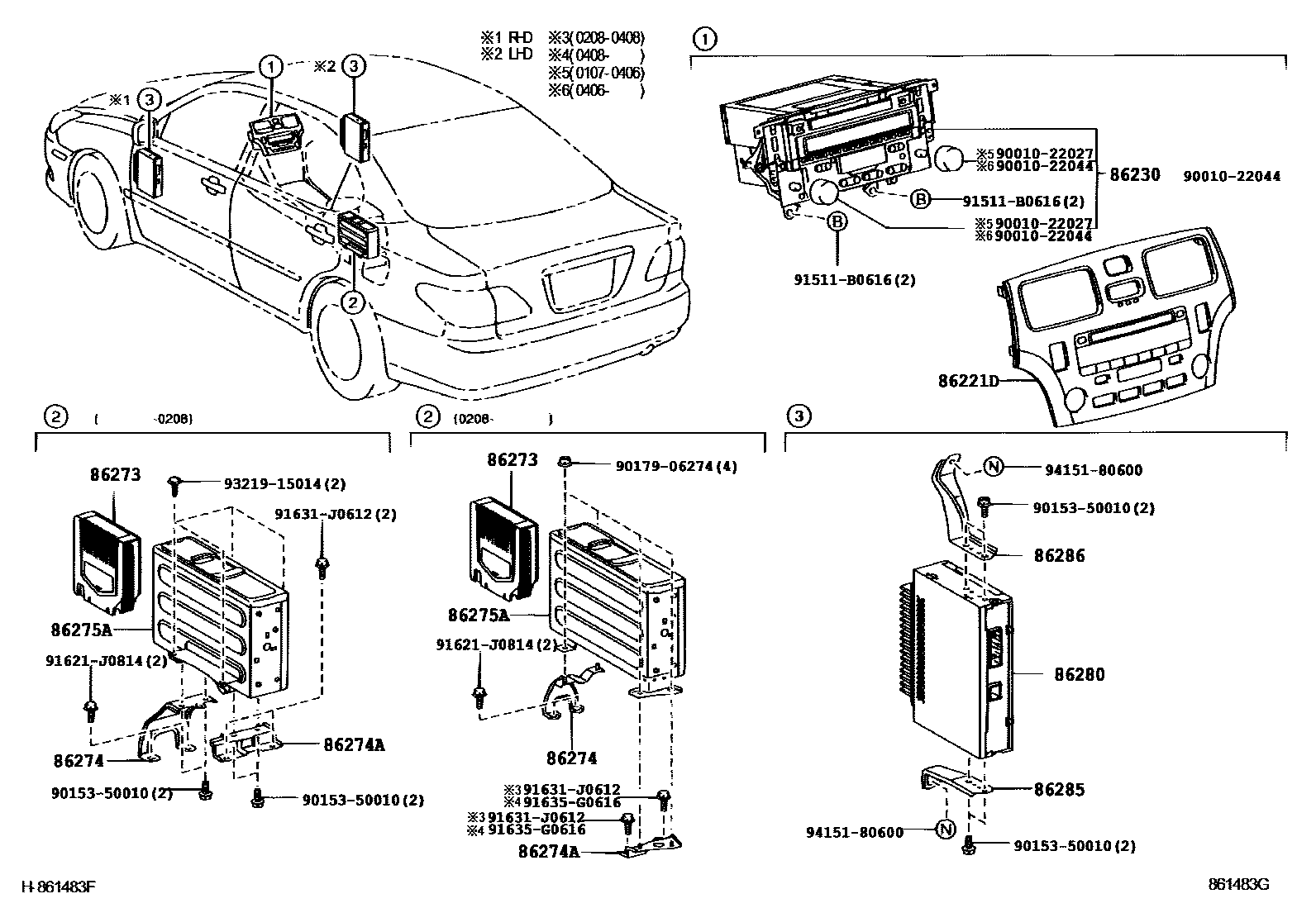

19 parts on this diagram · 2 diagrams in section
