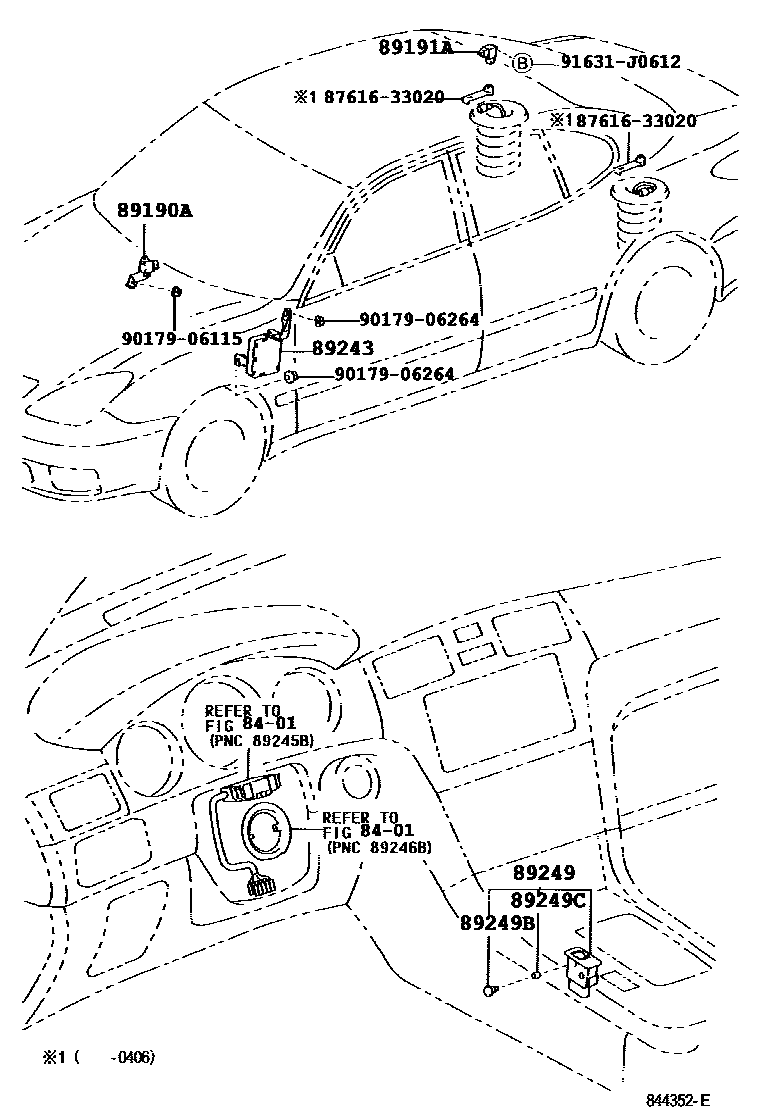

ELECTRONIC MODULATED SUSPENSION

8401

89190ASENSOR ASSY, ACCELERATION

main89190-33030iMCV30..GCC200107-200406

89191ASENSOR, ACCELERATION

main89191-30020iMCV30..GCC200107-200406

sub89191-22020

89243COMPUTER, ABSORBER CONTROL

main89243-33080iMCV30..GCC200107-200411

sub89243-33081

main89243-33081iMCV30..GCC200411

89249SWITCH, ABSORBER CONTROL

main89249-33020iMCV30..GCC200107-200406

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10700iMCV30..GCC200107-200406

14V 0.63W

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10770iMCV30..GCC200107-200406

8761633020CLAMP, COOLING UNIT CASE

main87616-33020

9017906115

main90179-06115

9017906264

main90179-06264

91631J0612

main91631-J0612

11 parts on this diagram · 1 diagram in section
