WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR,ROOF,FLOOR 0010 1DOOR,ROOF,FLOOR 0011 1SEAT 0012 1SEAT 0013 1SEAT 0014 1SEAT 0015 1CABLE BOND 0016 1CLAMP & BRACKET 0017 1CONNECTOR

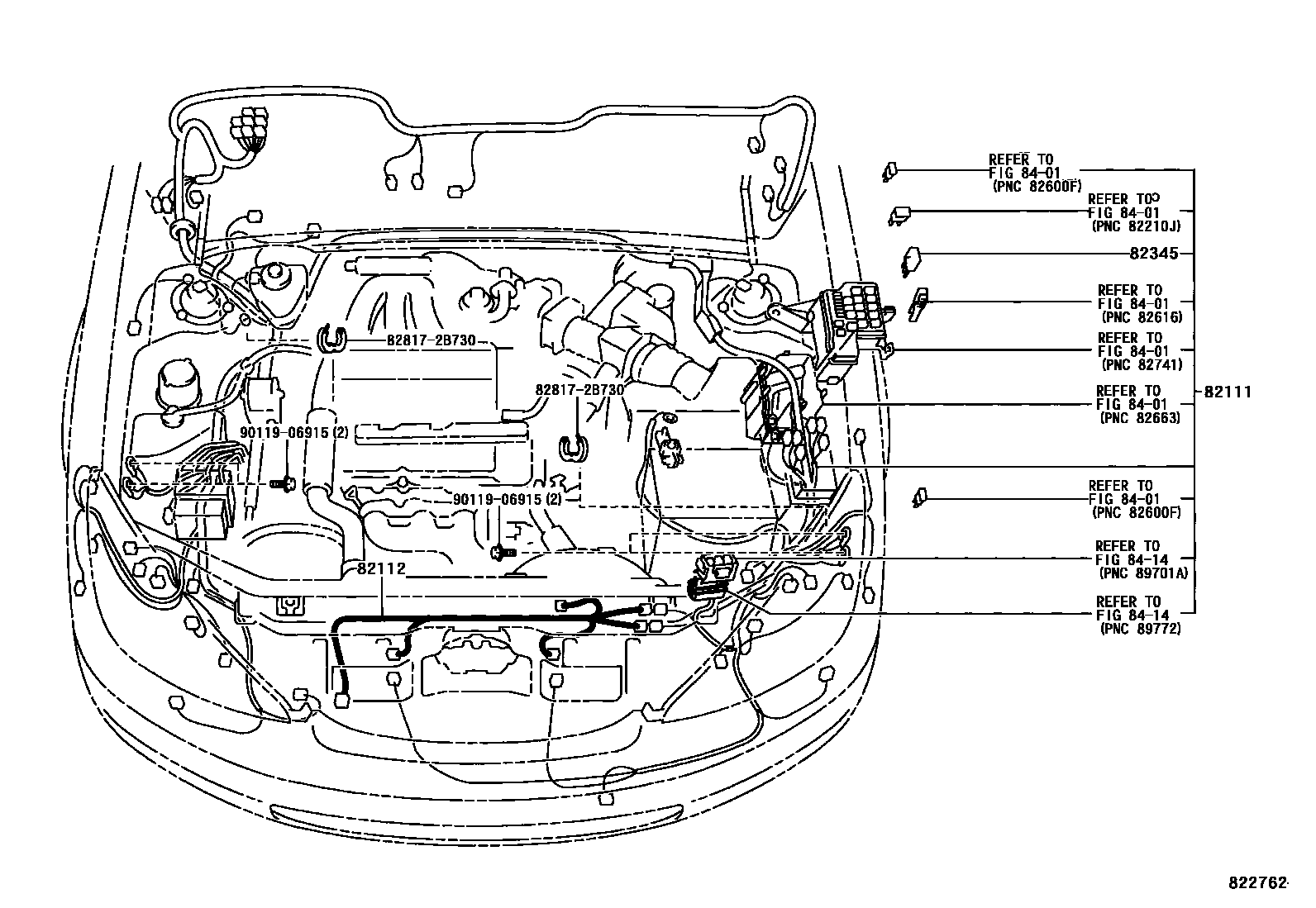

82111WIRE, ENGINE ROOM MAIN

main82111-3Y240iMCV30..GCC200107-200307

main82111-3Y241iMCV30..GCC200307-200406

main82111-3Y242iMCV30..GCC200406

main82111-3Y250iMCV30..ARL200107-200307

main82111-3Y251iMCV30..ARL200307-200406

main82111-3Y252iMCV30..ARL200406

main82111-3Y260iMCV30..ARL200107-200307

SINGAPORE OR HONG KONG OR THAILAND SPEC

main82111-3Y261iMCV30..ARL200307-200406

SINGAPORE OR HONG KONG OR THAILAND SPEC

main82111-3Y262iMCV30..ARL200406

SINGAPORE OR HONG KONG OR THAILAND SPEC

82112WIRE, ENGINE ROOM, NO.2

main82112-33050iMCV30200107-200406

82345DIODE

main82345-32020iMCV30200107-200406

8401

8414

828172B730PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730

9011906915

main90119-06915

7 parts on this diagram · 17 diagrams in section
