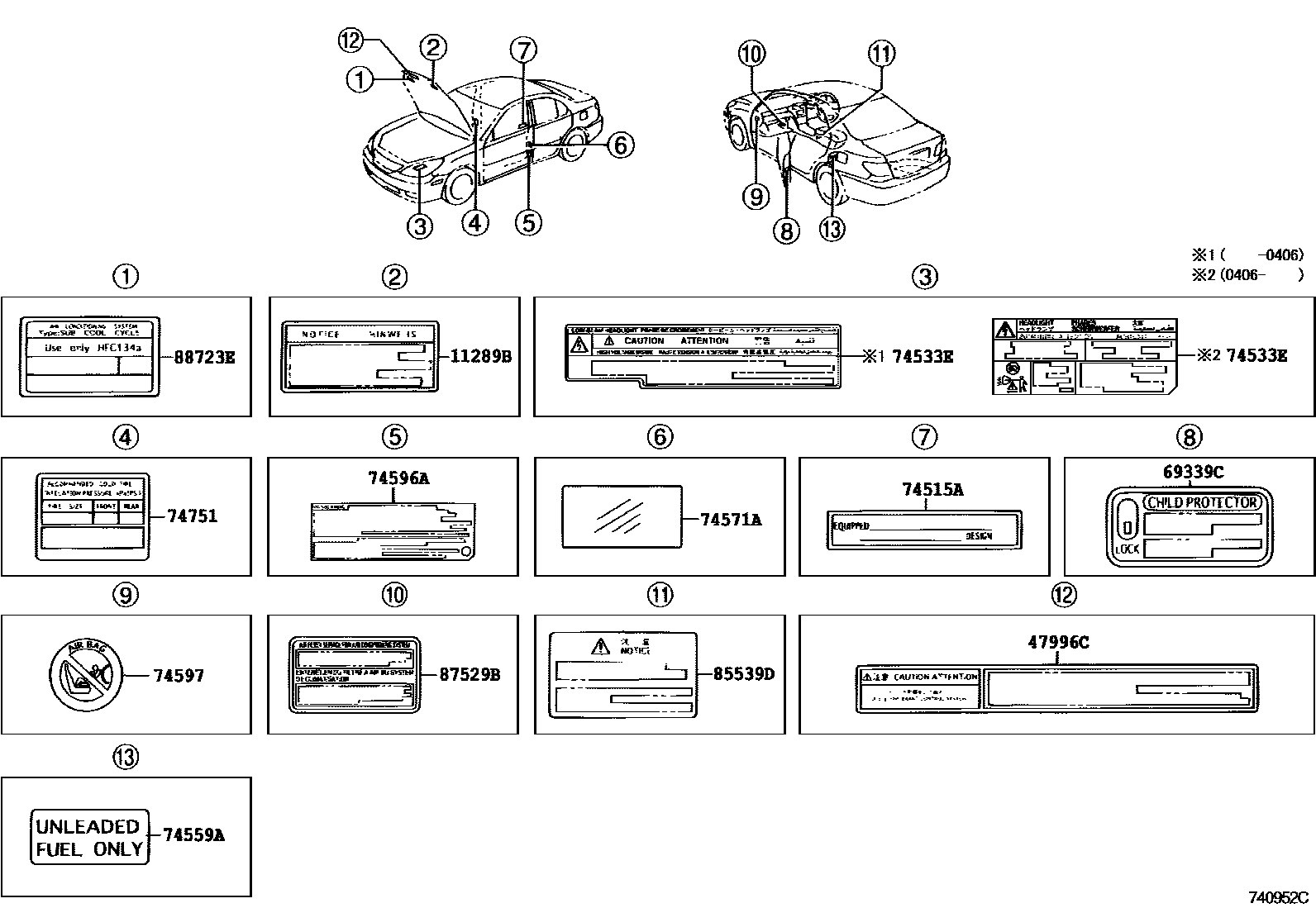

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11289BLABEL, SPARK PLUG NOTICE

main11289-50010i1MZFE..MCV30200107-200406

47996CLABEL, BRAKE BLEED CAUTION

main47996-50050iMCV30200107-200406

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-12010iMCV30200107-200406

74515APLATE, THEFT WARNING

main74515-24020iMCV30..GCC200107-200406

main74515-33010iMCV30..ARL200112-200406

main74515-50030iMCV30..ARL200107-200112

sub74515-30040

74533ELABEL, HEADLAMP VOLTAGE CAUTION

main74533-33010iMCV30200107-200406

main74533-47010iMCV30200406-200408

74559APLATE, FUEL CAUTION

main74559-14050iMCV30200107-200406

74571AFILM, LABEL COVER

main74571-32010iMCV30..GCC200107-200406

74596ALABEL, SIDE AIRBAG CAUTION

main74596-12011iMCV30..ARL200107-200406

main74596-30050iMCV30..GCC200107-200406

74597LABEL, DRIVER & PASSENGER AIRBAG CAUTION

main74598-20010iMCV30..GCC200107-200406

74751LABEL, TIRE PRESSURE INFORMATION

main42661-33510iMCV30..GCC200107-200406

main42661-33520iMCV30..ARL200107-200406

85539DLABEL, POWER OUTLET NOTICE

main85539-33010iMCV30200107-200603

87529BLABEL, A/C FILTER INFORMATION

main87529-50010iMCV30200107-200406

88723ELABEL, COOLER SERVICE CAUTION

main88723-28220iMCV30..ARL200107-200406

main88723-33100iMCV30..GCC200107-200406

13 parts on this diagram · 2 diagrams in section
