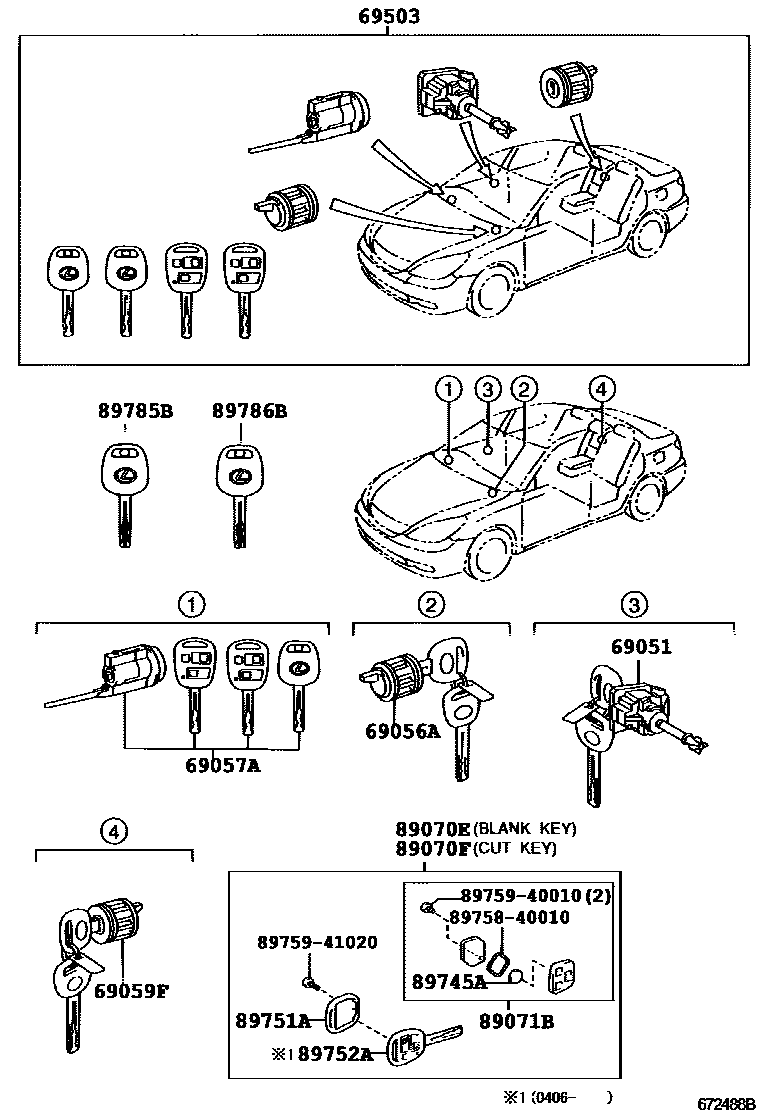

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
sub69056-60170
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
sub69057-33311
69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK
sub69056-60170
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
SINGAPORE SPEC
HONG KONG OR THAILAND SPEC
SINGAPORE SPEC
89745ABATTERY, TRANSMITTER
89752ACASE, TRANSMITTER HOUSING
BLANK KEY
CUT KEY
89785BTRANSMITTER, TRANSPONDER KEY MASTER
BLANK KEY
CUT KEY
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
CUT KEY
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
16 parts on this diagram · 2 diagrams in section
