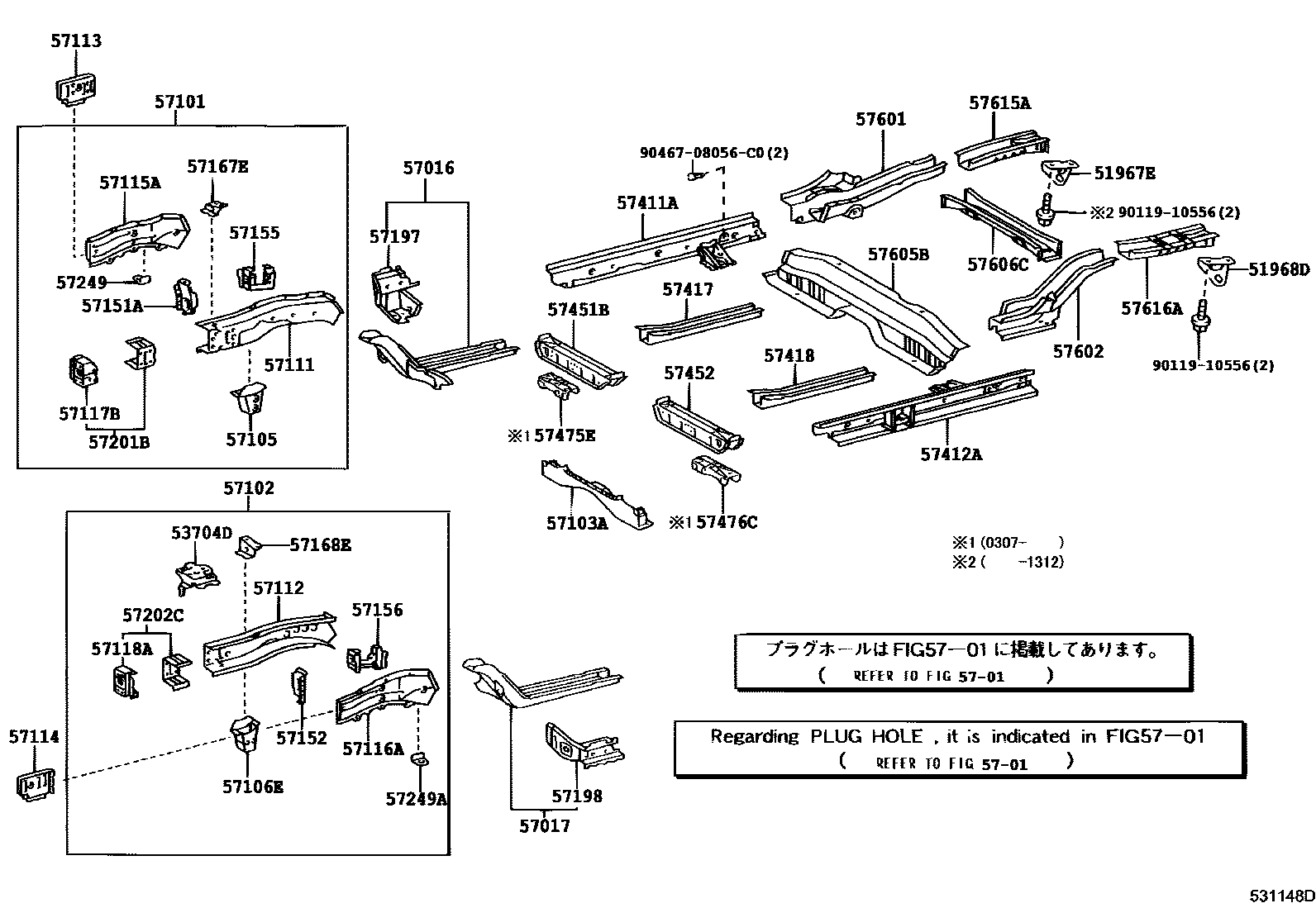

FLOOR SIDE MEMBER

51967EHOOK, TRANSPORT, REAR RH

main51967-33020iMCV30200406-200603

51968DHOOK, TRANSPORT, REAR LH

main51968-33010iMCV30200107-200406

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-33020iMCV30200406

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-33030iMCV30..GCC200107-200406

sub57016-33031

main57016-33040iMCV30..ARL200107-200406

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-33040iMCV30200107-200406

sub57017-33042

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-33901iMCV30200107-200406

sub57101-33906

sub90333-30008

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-33901iMCV30200107-200406

sub57102-33906

sub90333-30008

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-33030iMCV30200107-200406

main57103-33051iMCV30200504-200603

sub57103-33052

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iMCV30200107-200406

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-28120iMCV30200406

57111MEMBER, FRONT SIDE, RH

main57111-33020iMCV30200107-200406

sub57111-33021

sub90333-30008

57112MEMBER, FRONT SIDE, LH

main57112-33030iMCV30200107-200406

sub57112-33031

sub90333-30008

57113EXTENSION, FRONT SIDE MEMBER, RH

main57107-33040iMCV30200107-200406

57114EXTENSION, FRONT SIDE MEMBER, LH

main57108-33060iMCV30200107-200406

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-33030iMCV30200107-200406

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-33020iMCV30200107-200406

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-33050iMCV30200107-200406

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-33050iMCV30200107-200406

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-33020iMCV30200107-200406

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-33030iMCV30200107-200406

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-33030iMCV30200107-200406

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-33030iMCV30200406

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-33020iMCV30200107-200406

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-33020iMCV30200107-200406

57197BOX, TORQUE, FRONT RH

main57077-33040iMCV30200107-200406

57198BOX, TORQUE, FRONT LH

main57078-33040iMCV30200107-200406

sub57078-33041

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-33010iMCV30200107-200406

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-33010iMCV30200107-200406

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iMCV30200107-200406

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iMCV30200107-200406

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-33100iMCV30200107-200406

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-33100iMCV30200107-200406

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57419-33040iMCV30200107-200406

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57419-33040iMCV30200107-200406

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-33050iMCV30200107-200307

main57451-33051iMCV30200307-200406

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-33020iMCV30200107-200307

main57452-33021iMCV30200307-200406

57475EPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-33010×3iMCV30200307-200406

57476CPLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-33010×3iMCV30200307-200406

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-33907iMCV30200107-200406

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-33906iMCV30200107-200406

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-33060iMCV30200107-200406

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-33090iMCV30200107-200406

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-33906iMCV30200107-200406

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-33904iMCV30200107-200406

9011910556

main90119-10556

9046708056C0

main90467-08056C0

47 parts on this diagram · 1 diagram in section
