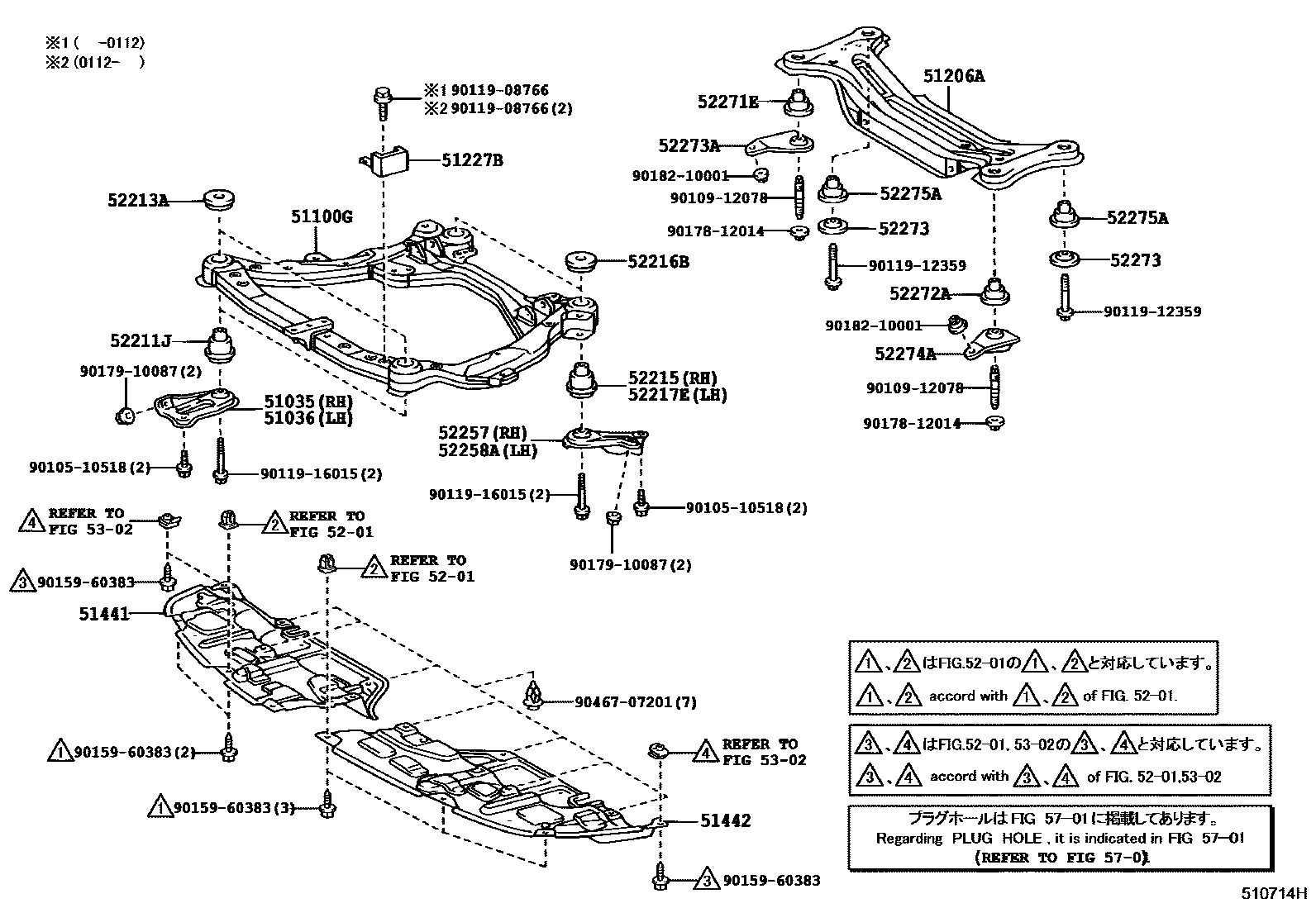

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-33010iMCV30¥4,750200107-200208

sub51035-33011¥4,730

main51035-33011iMCV30¥4,730200208-200406

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-33010iMCV30¥4,750200107-200208

sub51036-33011¥4,730

main51036-33011iMCV30¥4,730200208-200406

51100GFRAME ASSY, FRONT

main51100-33070iMCV30¥86,900200107-200406

sub51100-33073¥86,900

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33060iMCV30¥30,600200107-200508

sub51206-33080¥30,600

main51206-33061iMCV30¥45,700200601

sub51206-33100¥38,100

main51206-33080iMCV30¥30,600200508-200512

sub51206-33061¥45,700

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33080iMCV30¥6,000200107-200112

main51227-33101iMCV30¥6,000200112-200406

51441COVER, ENGINE UNDER, NO.1

main51441-33060iMCV30..ARL¥8,600200107-200406

main51441-33070iMCV30..GCC¥8,600200107-200406

51442COVER, ENGINE UNDER, NO.2

main51442-33060iMCV30..ARL¥10,200200107-200406

main51442-33070iMCV30..GCC¥10,200200107-200406

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28010iMCV30¥4,640200107-200406

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28010iMCV30¥1,860200107-200406

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iMCV30¥6,200200107-200406

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iMCV30¥1,860200107-200406

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iMCV30¥5,900200107-200406

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33040iMCV30¥4,050200107-200406

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33050iMCV30¥4,050200107-200406

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-33050iMCV30¥2,780200107-200406

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-33050iMCV30¥2,460200107-200406

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iMCV30¥690200107-200406

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33020iMCV30¥2,690200107-200406

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33020iMCV30¥2,690200107-200406

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33050iMCV30¥2,460200107-200406

5302

5701

9010510518

main90105-10518¥140

9010912078

main90109-12078¥330

9011908766

main90119-08766¥160

9011912359

main90119-12359¥410

9011916015

main90119-16015¥600

9015960383

main90159-60383¥70

9017812014

main90178-12014¥160

9017910087

main90179-10087¥110

9018210001

main90182-10001¥220

9046707201

main90467-07201¥100

33 parts on this diagram · 2 diagrams in section
