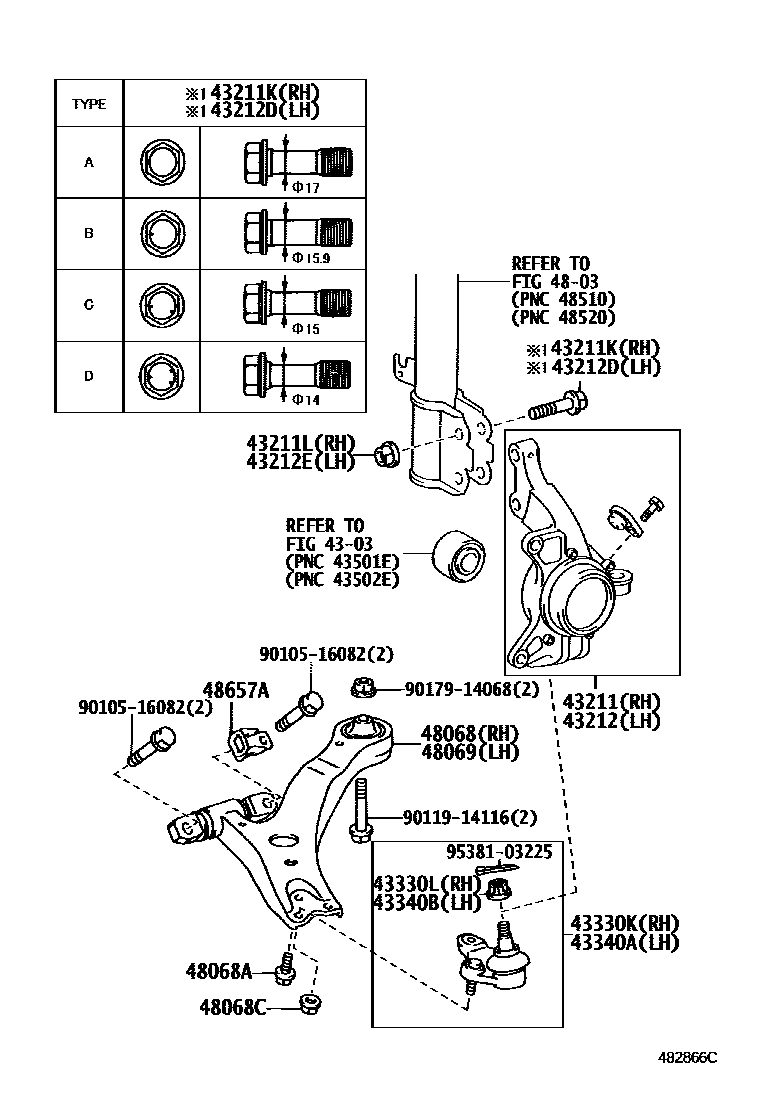

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

4303

43211KNUCKLE, STEERING, RH

main43211-39045iMCV30200107-200307

main43211-58010iMCV30200307-200406

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008iMCV30200107-200603

OD=17,TYPE A:REFER TO ILLUSTRATION

main90105-17009iMCV30200107-200603

OD=15.9,TYPE B:REFER TO ILLUSTRATION

main90105-17010iMCV30200107-200603

OD=15,TYPE C:REFER TO ILLUSTRATION

main90105-17011iMCV30200107-200603

OD=14,TYPE D:REFER TO ILLUSTRATION

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001iMCV30200107-200406

43212KNUCKLE, STEERING, LH

main43212-39035iMCV30200107-200307

main43212-58010iMCV30200307-200406

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008iMCV30200107-200603

OD=17,TYPE A:REFER TO ILLUSTRATION

main90105-17009iMCV30200107-200603

OD=15.9,TYPE B:REFER TO ILLUSTRATION

main90105-17010iMCV30200107-200603

OD=15,TYPE C:REFER TO ILLUSTRATION

main90105-17011iMCV30200107-200603

OD=14,TYPE D:REFER TO ILLUSTRATION

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001iMCV30200107-200406

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iMCV30200107-200406

sub43330-29615

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMCV30200107-200406

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iMCV30200107-200406

sub43340-29215

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMCV30200107-200406

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33050iMCV30200107-200211

sub48068-58010

main48068-58010iMCV30200211-200406

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12122iMCV30200107-200307

main90105-12336iMCV30200307-200406

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12015iMCV30200307-200406

main90179-12052iMCV30200107-200307

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33050iMCV30200107-200211

sub48069-58010

main48069-58010iMCV30200211-200406

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iMCV30200107-200406

9010516082

main90105-16082

9011914116

main90119-14116

9017914068

main90179-14068

9538103225

main95381-03225

21 parts on this diagram · 2 diagrams in section
