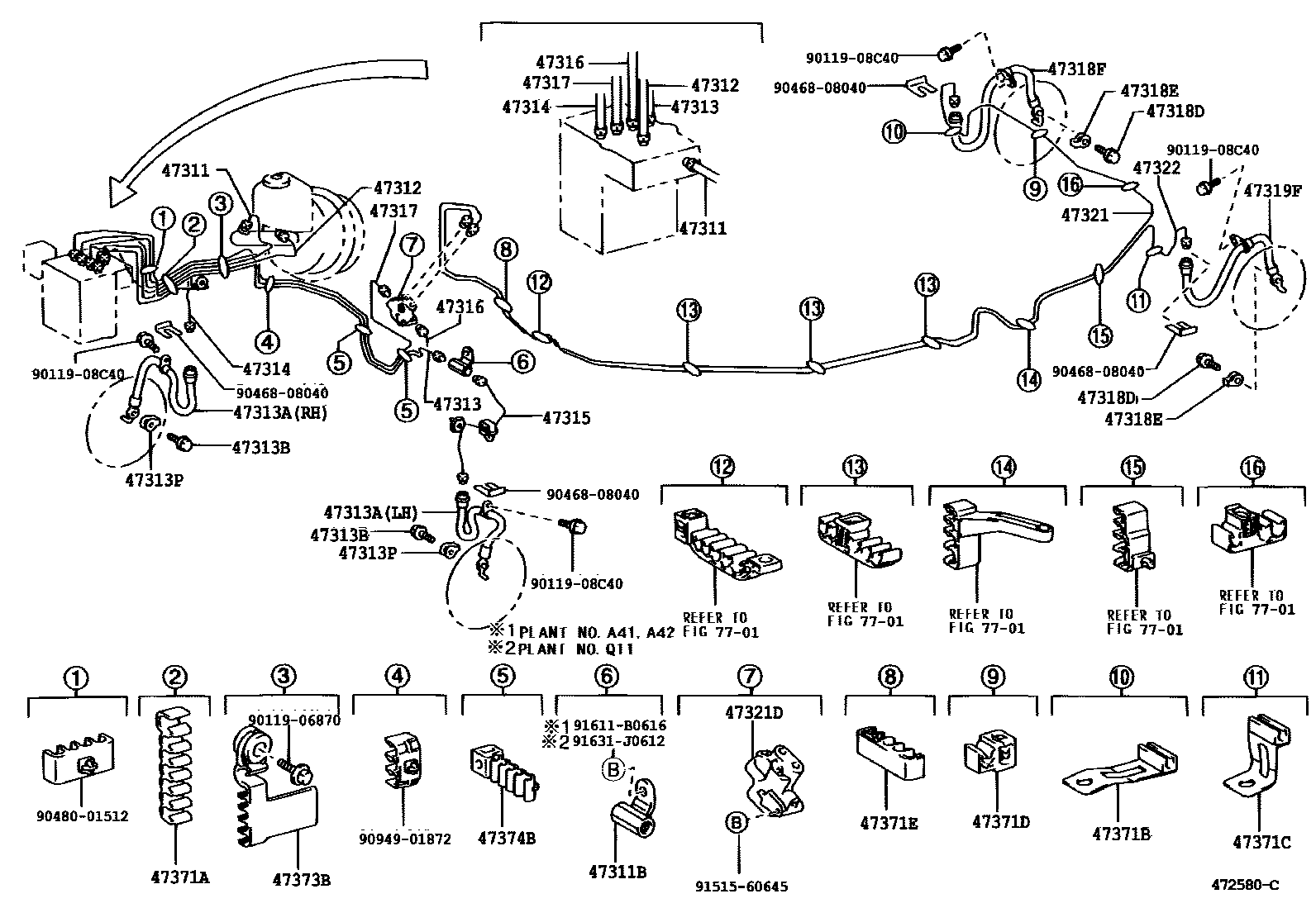

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-33070iMCV30..ARL200406

main47311-33090iMCV30..GCC200107-200406

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10213iMCV30..ARL200406

47312TUBE, FRONT BRAKE, NO.2

main47312-33090iMCV30..ARL200107-200406

main47312-33110iMCV30..GCC200406

47313TUBE, FRONT BRAKE, NO.3

main47313-33090iMCV30..ARL200406

main47313-33110iMCV30..GCC200107-200406

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C89iMCV30200406

RH

main90947-02C90iMCV30200107-200406

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iMCV30200107-200406

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iMCV30200406

47314TUBE, FRONT BRAKE, NO.4

main47314-33060iMCV30200107-200406

47315TUBE, FRONT BRAKE, NO.5

main47315-33170iMCV30..ARL200107-200406

main47315-33180iMCV30..GCC200107-200406

47316TUBE, FRONT BRAKE, NO.6

main47316-33190iMCV30..ARL200107-200406

main47316-33210iMCV30..GCC200406

47317TUBE, FRONT BRAKE, NO.7

main47317-33180iMCV30..ARL200406

main47317-33200iMCV30..GCC200107-200406

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iMCV30200107-200406

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iMCV30200107-200406

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C93iMCV30200107-200406

sub90947-02F60

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C94iMCV30200107-200406

sub90947-02F61

47321TUBE, REAR BRAKE, NO.1

main47321-33130iMCV30200107-200406

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12088iMCV30200107-200406

47322TUBE, REAR BRAKE, NO.2

main47322-33100iMCV30200107-200406

47371ACLAMP, BRAKE TUBE, NO.1

main47372-33010iMCV30200107-200406

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iMCV30200107-200406

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iMCV30200107-200406

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01B45iMCV30200107-200406

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01C53iMCV30200107-200406

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C55iMCV30200107-200406

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C56×2iMCV30200107-200406

7701

9011906870

main90119-06870

9011908C40

main90119-08C40

9046808040

main90468-08040

9048001512

main90480-01512

9094901872

main90949-01872

9151560645

main91515-60645

91611B0616

main91611-B0616

91631J0612

main91631-J0612

34 parts on this diagram · 4 diagrams in section
