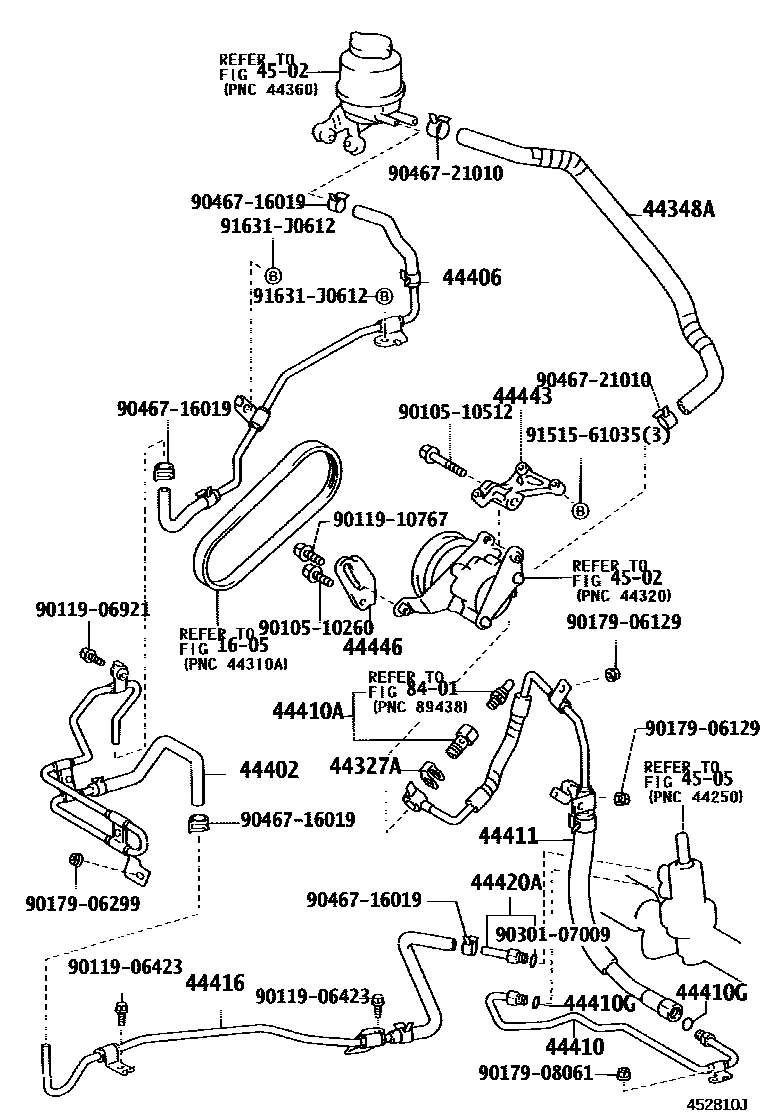

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCV30200107-200406

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33180iMCV30200107-200406

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-33090iMCV30200107-200406

44406TUBE SUB-ASSY, RETURN

main44406-33090iMCV30200107-200406

44410TUBE ASSY, PRESSURE FEED

main44410-33190iMCV30..GCC200107-200406

main44410-33210iMCV30..ARL200107-200406

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCV30200107-200406

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iMCV30..GCC200107-200603

44411HOSE, PRESSURE FEED

main44411-33100iMCV30..ARL200107-200406

main44411-33110iMCV30..GCC200107-200406

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33140iMCV30200107-200406

44420ATUBE ASSY, RETURN

main44420-17010iMCV30..ARL200107-200406

44443BRACKET, PUMP

main44443-33041iMCV30200107-200406

44446STRUT, ADJUSTING

main44446-28030iMCV30200107-200406

4502

4505

8401

9010510260

main90105-10260

9010510512

main90105-10512

9011906423

main90119-06423

9011906921

main90119-06921

9011910767

main90119-10767

9017906129

main90179-06129

9017906299

main90179-06299

9017908061

main90179-08061

9030107009

main90301-07009

9046716019

main90467-16019

9046721010

main90467-21010

9151561035

main91515-61035

91631J0612

main91631-J0612

29 parts on this diagram · 2 diagrams in section
