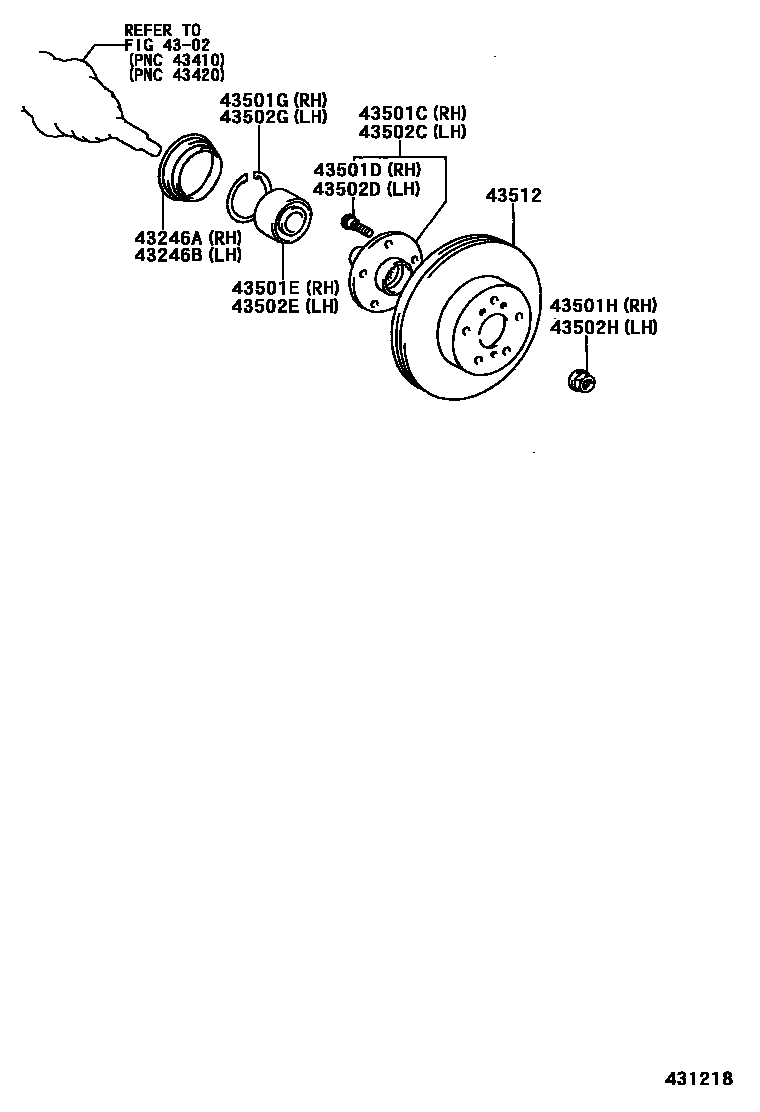

FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020iMCV30200307-200406

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020iMCV30200406

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28100iMCV30200307-200406

main43502-33030iMCV30200107-200307

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iMCV30200406

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43008iMCV30200107-200307

NSK

main90369-43009iMCV30200107-200307

KOYO

main90369-45003iMCV30200307-200406

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iMCV30200406

main90521-88001iMCV30200107-200307

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMCV30200107-200406

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28100iMCV30200406

main43502-33030iMCV30200107-200307

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iMCV30..ARL200107-200406

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43008iMCV30200107-200307

NSK

main90369-43009iMCV30200107-200307

KOYO

main90369-45003iMCV30200307-200406

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iMCV30200307-200406

main90521-88001iMCV30200107-200307

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMCV30200107-200406

43512DISC, FRONT

main43512-33100×2iMCV30..ARL200107-200302

main43512-48011×2iMCV30..ARL200302-200406

sub43512-48031

main43512-58010×2iMCV30..GCC200406-200603

THAILAND SPEC

sub43512-58011

14 parts on this diagram · 1 diagram in section
