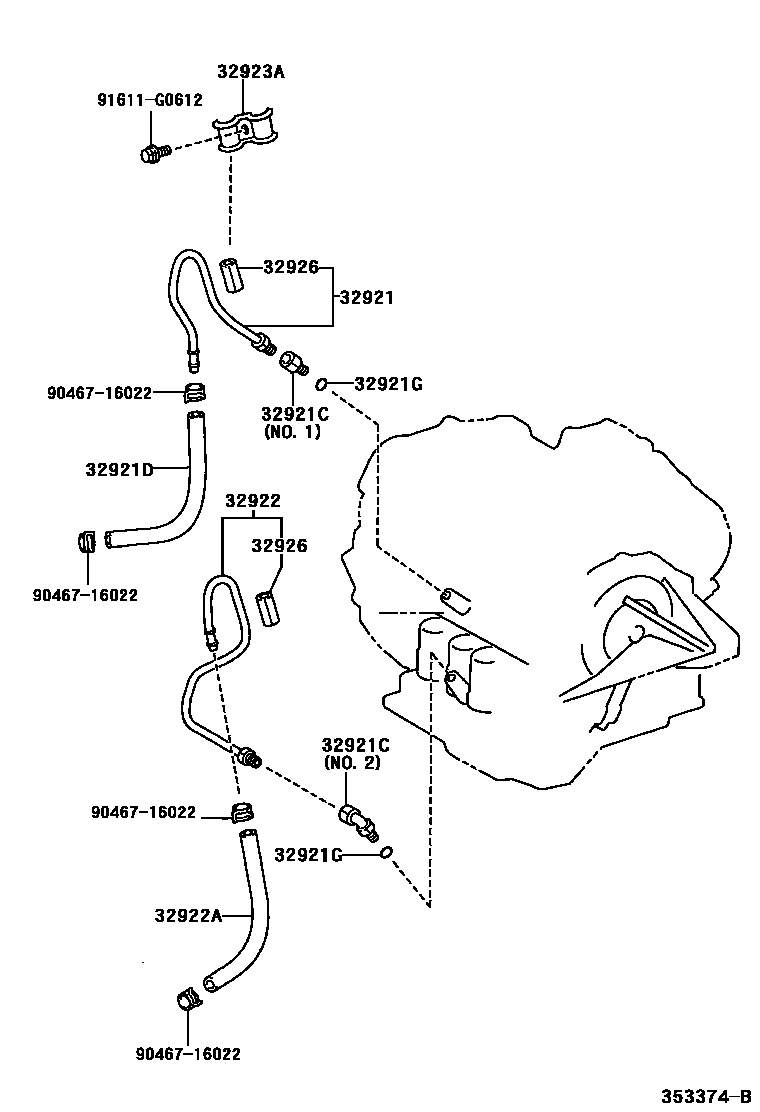

OIL COOLER & TUBE (ATM)

0001 1U150E 0002 1U150E

32921TUBE, OIL COOLER INLET, NO.1

main32921-33120iMCV30200107-200307

main32921-33140iMCV30200307-200406

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iMCV30200107-200406

NO.1

main90407-16010iMCV30200107-200406

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main32941-33050iMCV30200107-200406

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iMCV30200107-200406

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-33090iMCV30..ARL200107-200307

main32922-33100iMCV30..GCC200107-200307

main32922-33130iMCV30..ARL200307-200406

sub32922-33160

main32922-33150iMCV30..GCC200307-200406

sub32922-33160

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-33030iMCV30..ARL200107-200406

main32943-33090iMCV30..GCC200107-200406

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iMCV30200107-200406

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iMCV30200107-200406

L=35,ID=10

9046716022

main90467-16022

91611G0612

main91611-G0612

10 parts on this diagram · 2 diagrams in section
