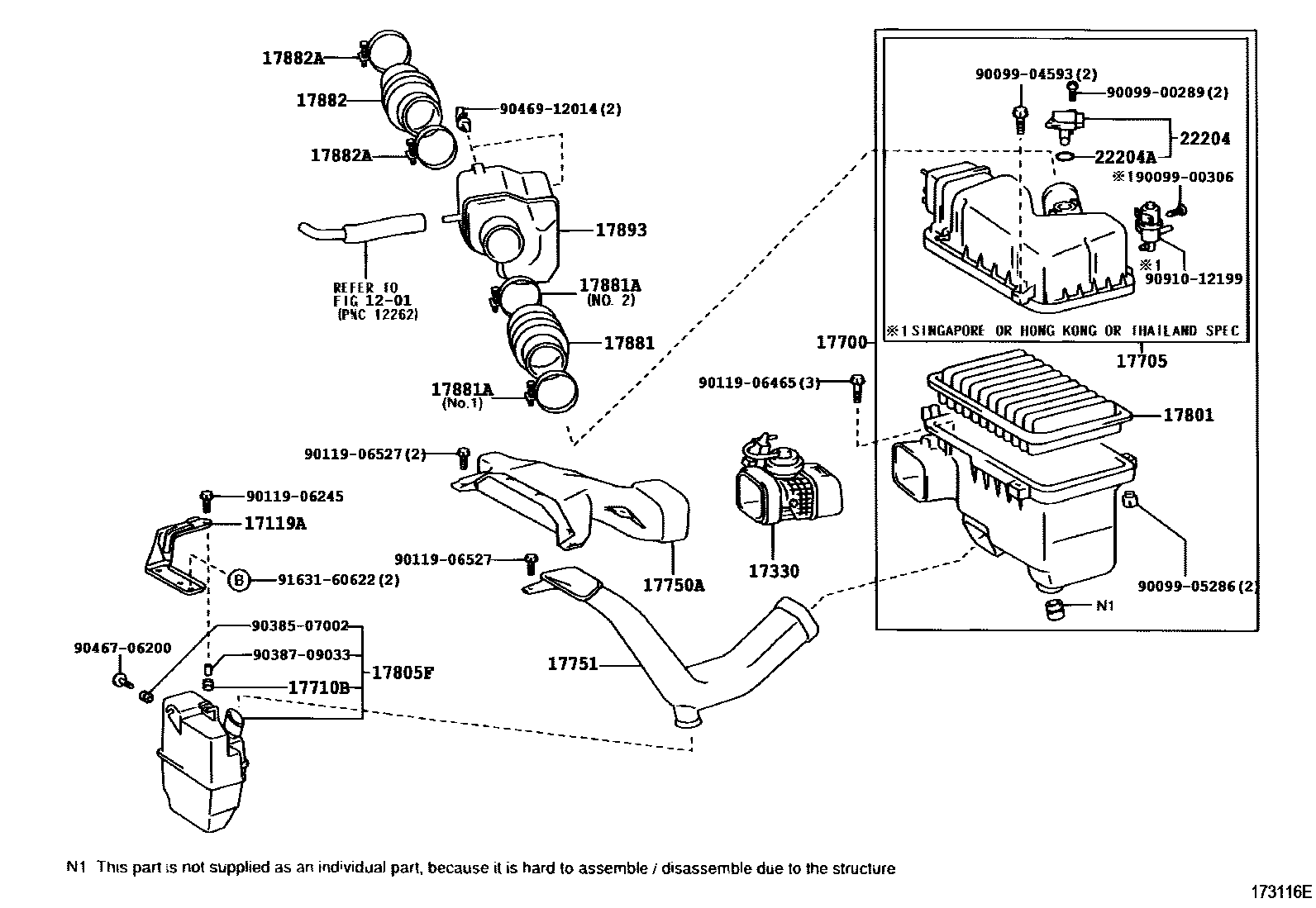

AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17330VALVE ASSY, INTAKE AIR CONTROL, NO.3
17705CAP SUB-ASSY, AIR CLEANER
SINGAPORE OR HONG KONG OR THAILAND SPEC
17710BGROMMET
17750AINLET ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17805FRESONATOR SUB-ASSY, INTAKE AIR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.2
NO.1
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
22204METER SUB-ASSY, INTAKE AIR FLOW
22204ARING, O(FOR INTAKE AIR FLOW METER)
9009900289
main90099-00289
9009900306
main90099-00306
9009904593
main90099-04593
9009905286
main90099-05286
9011906245
main90119-06245
9011906465
main90119-06465
9011906527
main90119-06527
9038507002
main90385-07002
9038709033
main90387-09033
9046706200
main90467-06200
9046912014
main90469-12014
9091012199
main90910-12199
9163160622
main91631-60622
30 parts on this diagram · 1 diagram in section
