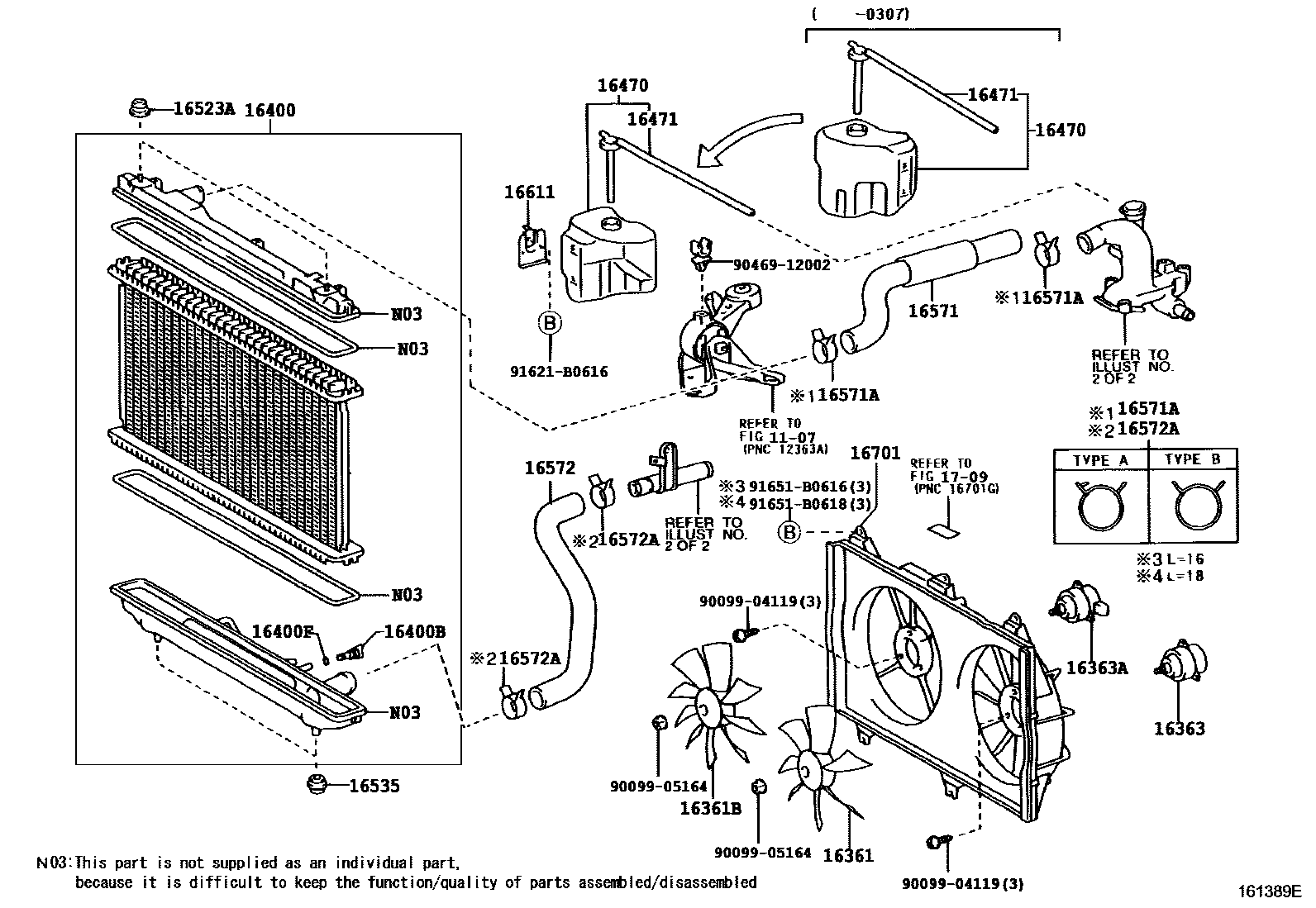

RADIATOR & WATER OUTLET
1107
16400RADIATOR ASSY
MARK OF RADIATOR = 2026
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
1709
9009904119
main90099-04119
9009905164
main90099-05164
9046912002
main90469-12002
91621B0616
main91621-B0616
91651B0616
main91651-B0616
91651B0618
main91651-B0618
25 parts on this diagram · 2 diagrams in section
