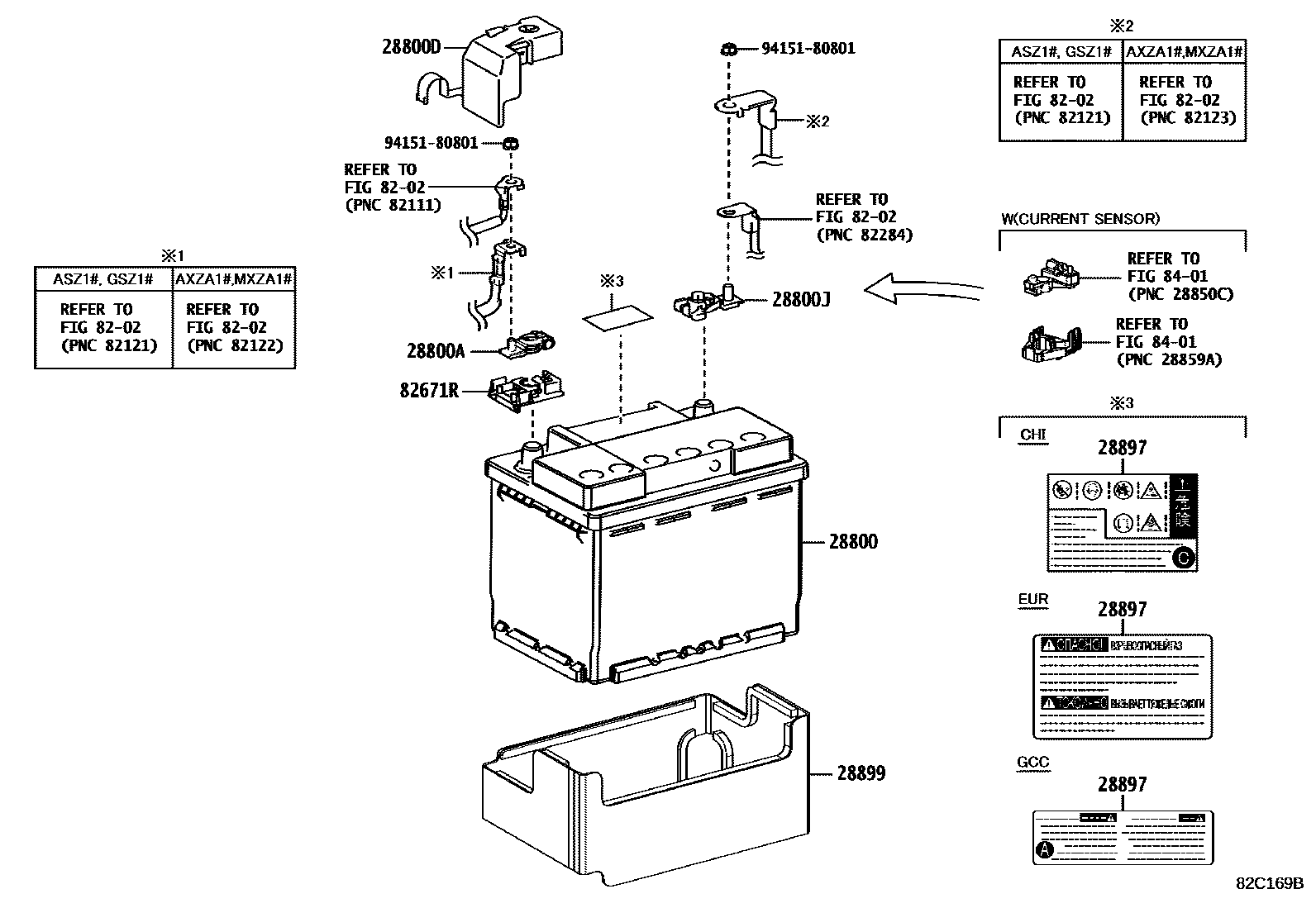

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-25050iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,CHI,EUR,GEN201806-202206

LN3

sub28800-25051

main28800-25051iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,CHI,EUR,GEN202207-202402

LN3

sub28800-25052

main28800-25052iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,CHI,EUR,GEN202403

LN3

main28800-31570iA25AFXS,A25BFXS..AXZH10201807-202206

LN2

sub28800-31571

main28800-31571iA25AFXS,A25BFXS..AXZH10..ARL,CHI,EUR,GCC,GEN202207-202302

LN2

sub28800-31572

main28800-31572iA25AFXS,A25BFXS..AXZH10..ARL,CHI,EUR,GCC,GEN202303-202402

LN2

sub28800-31573

main28800-31573iA25AFXS,A25BFXS..AXZH10..ARL,CHI,EUR,GCC,GEN202403

LN2

main28800-36132iA25BFXS..AXZH10..IND202110-202403

LN2

sub28800-36133

main28800-36133iA25BFXS..AXZH10..IND202404-202502

LN2

main28800-38160i2GRFKS..GSZ10;A25AFKS..AXZA10..GCC201806-202206

LN3

sub28800-38161

main28800-38161i2GRFKS..GSZ10;A25AFKS..AXZA10..GCC202207-202403

LN3

sub28800-38162

main28800-38162i2GRFKS..GSZ10;A25AFKS..AXZA10..GCC202404

LN3

main28800-36120iA25AFXS..AXZH10..LHD..EUR201807-201812

LN2,BRAZIL SPEC

sub28800-36121

main28800-36121iA25AFXS..AXZH10..LHD..EUR201901-201912

LN2,BRAZIL SPEC

sub28800-36122

main28800-36122iA25AFXS..AXZH10..LHD..EUR202108-202305

LN2,BRAZIL SPEC

sub28800-36123

main28800-36123iA25AFXS..AXZH10..LHD..EUR202306

LN2,BRAZIL SPEC

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iA25AFXS,A25BFXS..AXZH10..ARL,EUR,GCC,GEN,IND201807-202208

main90982-05072iA25AFKS,M20AFKS,2GRFKS..AXZA10,GSZ10,MXZA10201806-202108

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-33020iA25AFXS,A25BFXS..AXZH10202001-202208

main82621-33030iA25AFXS,A25BFXS..AXZH10201807-201912

main82821-33430iA25AFKS,M20AFKS,6ARFSE,2GRFKS..ASZ10,AXZA10,GSZ10,MXZA10201806-202208

main82821-33440iA25AFKS,M20AFKS,2GRFKS..AXZA10,GSZ10,MXZA10202208

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061i2GRFKS..GSZ10;A25AFKS..AXZA10..GCC201806-202108

28897PLATE, BATTERY CAUTION

main28897-36030iA25AFKS,A25AFXS,2GRFKS..AXZA10,AXZH10,GSZ10..GCC201806-202108

main28897-38060i6ARFSE..ASZ10..CHI201806-201907

TAIWAN SPEC

main28897-38070iA25AFKS..AXZA10..EUR202108

PERU SPEC

main28898-46020iA25AFXS..AXZH10..EUR202108-202408

main28898-46020iA25AFXS..AXZH10..LHD..EUR201807-202108

BRAZIL SPEC

28899INSULATOR, BATTERY

main28899-31240i6ARFSE..ASZ10..CHI201806-202108

8202

82671RSTOPPER, BATTERY TERMINAL

main82670-33140iAXZH10201807-202208

main82671-33100iASZ10,AXZA10,GSZ10,MXZA10201806-202108

8401

9415180801

main94151-80801

10 parts on this diagram · 5 diagrams in section
