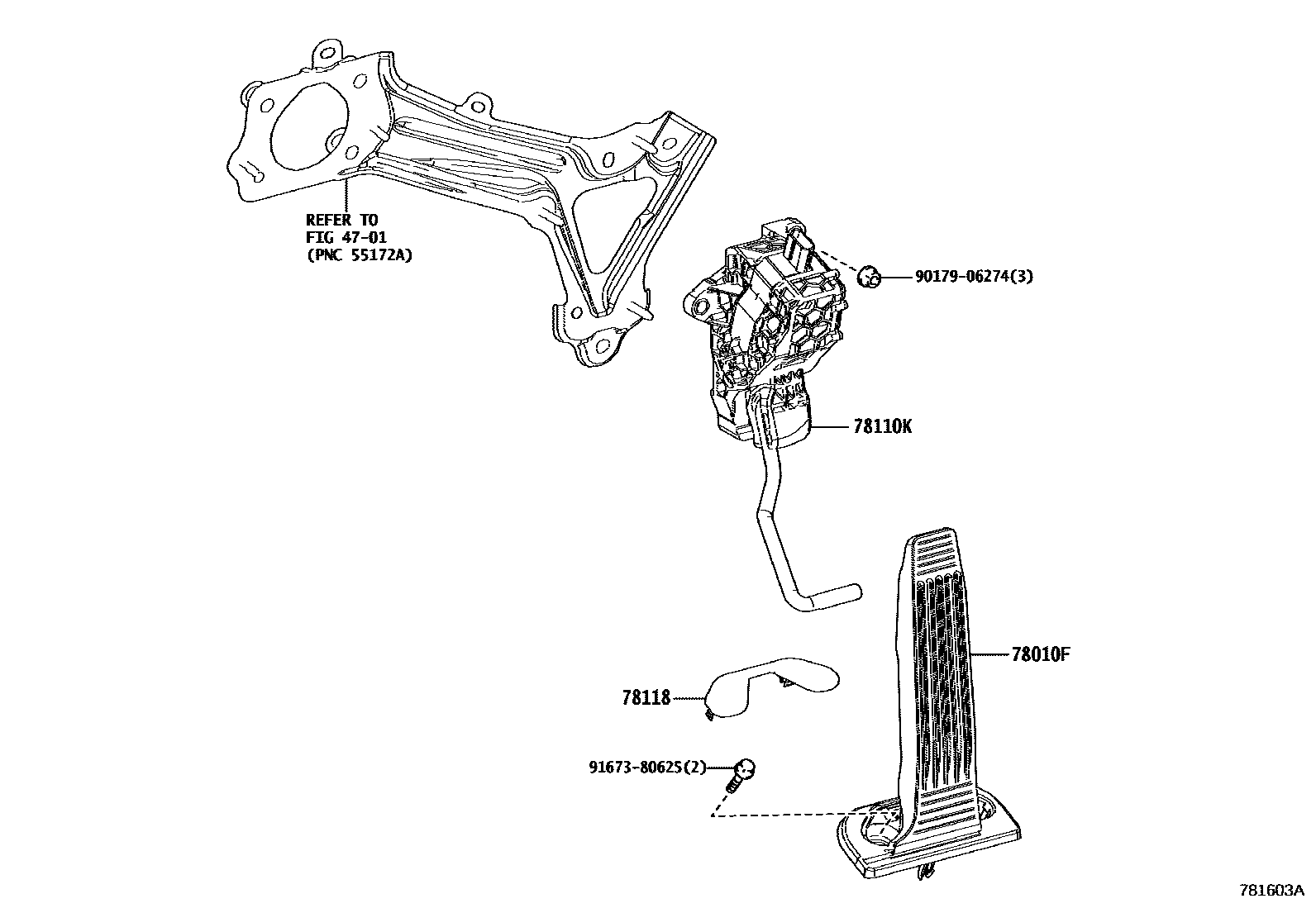

ACCELERATOR LINK

0001 1 0002 1

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-33060iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202202

main78101-33061iAXZA10,AXZH10,GSZ10,MXZA10202203

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33130iASZ10;AXZH10..CHI,GCC201806-202009

main78110-33131iAXZH10..CHI,GCC202010-202108

main78110-33140iAXZA10,GSZ10,MXZA10..LHD201806-202009

main78110-33141iAXZA10,GSZ10,MXZA10..LHD202010-202108

main78110-33150iAXZH10..RHD201807-201901

main78110-33160iAXZA10..RHD201806-202009

main78110-33161iAXZA10..RHD202010-202108

main78110-33170iASZ10..EUR201902-202009

MOLDOVA SPEC

main78110-33170iASZ10..EUR201902-202009

GEORGIA SPEC

main78110-33170iASZ10..EUR201902-202009

KYRGYZ SPEC

main78110-33170iASZ10..EUR201902-202009

AZERBAIJAN SPEC

main78110-33170iASZ10..EUR201902-202009

BELARUS SPEC

main78110-33170iASZ10..EUR201902-202009

UKRAINE SPEC

main78110-33171iASZ10202010-202108

MOLDOVA SPEC

main78110-33171iAXZH10..LHD..EUR202010-202108

GEORGIA SPEC

main78110-33171iAXZH10..LHD..EUR202010-202108

KYRGYZ SPEC

main78110-33171iASZ10202010-202108

UKRAINE SPEC

main78110-33171iASZ10202010-202108

AZERBAIJAN SPEC

main78110-33171iASZ10202010-202108

BELARUS SPEC

main78110-33171iAXZH10..LHD..EUR202108

main78110-33180iAXZH10..RHD201902-202009

main78110-33181iAXZH10..RHD202010-202110

78118PAD, ACCELERATOR PEDAL

main78117-33020iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

9017906274

main90179-06274

9167380625

main91673-80625

6 parts on this diagram · 2 diagrams in section
