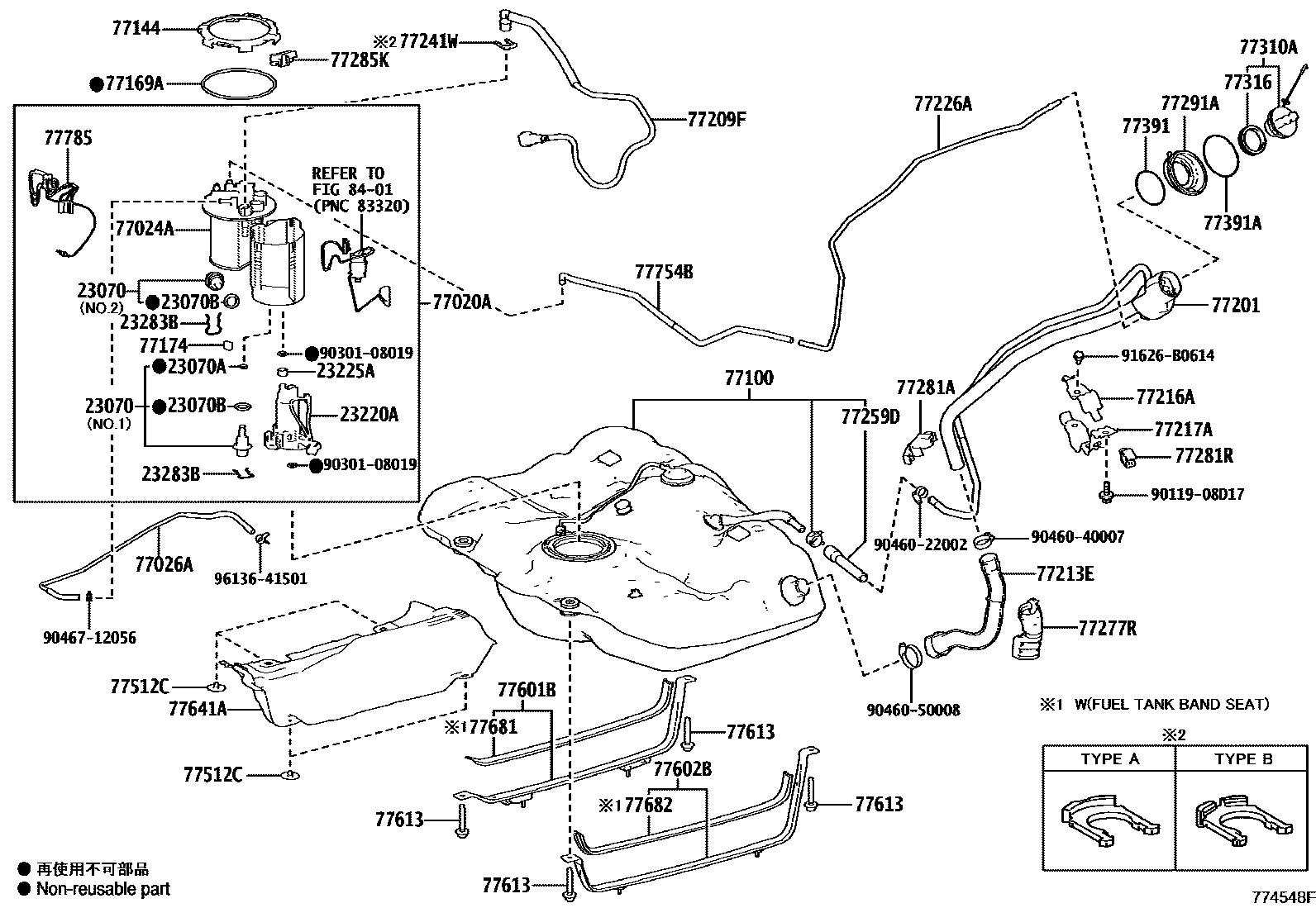

FUEL TANK & TUBE

0001 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK, CHINA6 0005 1FUEL TANK, CHINA6 0006 1FUEL TANK 0007 1FUEL TANK, CHINA5 0008 1FUEL TANK 0009 1FUEL TANK 0010 1FUEL TANK 0011 1FUEL TANK, EURO6D 0012 1FUEL TANK, EURO6D 0013 1FUEL TANK, CHINA6 0014 1FUEL TANK, CHINA6 0015 1FUEL TUBE 0016 1FUEL TUBE, CHINA6 0017 1FUEL TUBE 0018 1FUEL TUBE 0019 1FUEL TUBE, CHINA6 0020 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25AFXS..AXZH10202001-202110

main23070-25040iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN202111-202112

NO.1:REFER ILLUST.

main23070-31030iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN202108-202111

NO.1:REFER ILLUST.

main23070-36010supersedes 23070-36010i2GRFKS..GSZ10..EUR201806-202107

NO.2:REFER ILLUST.

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-04013supersedes 90301-04013iA25AFKS,M20AFKS..AXZA10,MXZA10202108

23070BRING, O, NO.2(FOR FUEL MAIN VALVE)

main90301-15024×2supersedes 90301-15024i6ARFSE..ASZ10..CHI201806-201907

23220APUMP ASSY, FUEL W/FILTER

main23220-25020iA25AFKS,M20AFKS..AXZA10,MXZA10..CHI202108

main23220-25030iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN202111-202112

TAIWAN SPEC

main23220-31330i2GRFKS..GSZ10..EUR201806-202107

main23220-36130supersedes 23220-25020i6ARFSE..ASZ10..EUR201806-202108

23225ASPACER, FUEL PUMP

main23225-21020supersedes 23225-31020i6ARFSE..ASZ10..CHI201907-202108

main23225-31010iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN202111-202112

TAIWAN SPEC

main23225-31020iA25AFKS,M20AFKS..AXZA10,MXZA10..ARL,EUR,GCC,GEN202112

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iA25AFXS,A25BFXS..AXZH10202108

main23283-36010×2supersedes 23283-36010iA25AFKS,M20AFKS,2GRFKS..AXZA10,GSZ10,MXZA10202108

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-33480iGSZ10..GCC201806-202108

main77020-33501supersedes 77020-33532iAXZA10..ARL,EUR,GCC,GEN201806-202108

main77020-33510iAXZH10..ARL,EUR,GCC,GEN201807-201912

main77020-33511supersedes 77020-33571iAXZH10..ARL,EUR,GCC,GEN202001-202110

main77020-33550supersedes 77020-33501iASZ10..CHI201907-202108

main77020-33610iAXZA10,MXZA10..ARL,EUR,GCC,GEN202111-202112

TAIWAN SPEC

main77020-33620iGSZ10202111-202112

main77020-33570supersedes 77020-33590iAXZH10..CHI201807-201912

BEIJING SPEC

sub77020-33571

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33260iGSZ10..GCC201806-202108

MARK=77020-33480

main77024-33321supersedes 77024-33241iAXZA10,MXZA10..ARL,EUR,GCC,GEN202112

main77024-33330supersedes 77024-33321iASZ10..CHI201907-202108

main77024-33340iAXZH10..ARL,EUR,GCC,GEN201807-202001

main77024-33420supersedes 77024-33430iAXZH10..ARL,EUR,GCC,GEN,IND202108

TAIWAN SPEC

main77024-33490iAXZA10,MXZA10..ARL,EUR,GCC,GEN202111-202112

TAIWAN SPEC

main77024-33500supersedes 77024-33500iGSZ10..EUR202111-202112

MOLDOVA SPEC,MARK=77020-33620

main77024-33310supersedes 77024-33430iAXZH10..CHI201807-202001

BEIJING SPEC

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-33030iASZ10;GSZ10..GCC;AXZA10..ARL,EUR,GCC,GEN201806-202108

main77026-33040iAXZH10..ARL,EUR,GCC,GEN,IND202209

PNC 77241W=TYPE B

main77026-33050iAXZH10..ARL,EUR,GCC,GEN,IND202108-202210

PNC 77241W=TYPE A

main77026-33060iMXZA10..CHI202108

TAIWAN SPEC

77100TANK ASSY, FUEL

main77001-33270iAXZA10..CHI202402

main77001-33350supersedes 77001-33360iAXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN202108-202210

PNC 77241W=TYPE A

main77001-33360supersedes 77001-33350iAXZA10,MXZA10..CHI202108-202208

PNC 77241W=TYPE A

main77001-33390supersedes 77001-33400iAXZH10..ARL,GCC,GEN,IND201807-202110

main77001-33410supersedes 77001-33400iAXZH10..EUR201807-202108

sub77001-33310

main77001-33460iAXZA10..CHI202208-202402

MARK=A6

main77001-33470iAXZH10..CHI202210

BRAZIL SPEC

main77001-33550supersedes 77001-33560iAXZA10..CHI202402

PNC 77241W=TYPE B

main77001-33560iAXZA10,MXZA10..CHI202205-202210

PNC 77241W=TYPE B

main77001-33580iAXZH10..IND202209-202503

PNC 77241W=TYPE B

main77001-33600supersedes 77001-33590iAXZH10..EUR202209

PNC 77241W=TYPE B

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iASZ10,AXZA10,AXZH10;GSZ10,MXZA10..CHI,GCC201806-202110

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030supersedes 77169-47040iGSZ10..EUR201806-202107

main77169-47040supersedes 77169-47040iAXZH10..EUR201807-202108

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33060iAXZA10,MXZA10..ARL,EUR,GCC,GEN202108-202111

main77174-33070iGSZ10202108

main77174-72010supersedes 77174-33060iASZ10..CHI201907-202108

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33380iAXZH10..EUR202108

TAIWAN SPEC

main77201-33510supersedes 77201-33530iAXZH10..LHD..EUR202108

BRAZIL SPEC

main77201-33520iASZ10,AXZA10,GSZ10..EUR201806-202108

main77201-33530supersedes 77201-33510iASZ10,GSZ10..CHI,GCC;AXZA10,AXZH10..ARL,GCC,GEN,IND201806-202110

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-33130iGSZ10..EUR201806-202107

main77209-33140supersedes 77209-33171iAXZH10..ARL,GCC,GEN,IND201807-202110

main77209-33160supersedes 77209-33151iAXZA10..ARL,EUR,GCC,GEN201806-202108

main77209-33170iAXZH10..EUR201807-201901

BEIJING SPEC

main77209-33171supersedes 77209-33140iAXZH10..EUR201902-202108

main77209-33190iASZ10201806-202108

main77209-33150iAXZA10..CHI201807-201901

BEIJING SPEC

sub77209-33151

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-33130iAXZA10,AXZH10,MXZA10..CHI201806-202008

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33180supersedes 77216-33200iAXZH10..LHD..EUR202108

BRAZIL SPEC

main77216-33190iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

TAIWAN SPEC

main77216-33200supersedes 77216-33180iASZ10,GSZ10..CHI,GCC;AXZA10,AXZH10..ARL,GCC,GEN,IND201806-202110

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33120supersedes 77217-33140iAXZH10..LHD..EUR202108

BRAZIL SPEC

main77217-33130iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

TAIWAN SPEC

main77217-33140supersedes 77217-33120iASZ10,GSZ10..CHI,GCC;AXZA10,AXZH10..ARL,GCC,GEN,IND201806-202110

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33180iAXZA10,MXZA10..CHI202008-202108

main77226-33200supersedes 77226-33220iAXZA10,AXZH10,GSZ10,MXZA10..EUR202108

TAIWAN SPEC

main77226-33210supersedes 77226-33180iASZ10,GSZ10..CHI,GCC;AXZA10,AXZH10..ARL,GCC,GEN,IND201806-202110

main77226-33220iAXZH10..CHI202008-202108

77241WCLIP, TUBE JOINT

main77241-33011supersedes 77241-33011iAXZA10,GSZ10,MXZA10;AXZH10..ARL,EUR,GCC,GEN,IND202108-202210

BRAZIL SPEC,TYPE A:REFER ILLUST.

main77241-60550supersedes 77241-60550iAXZA10,MXZA10..CHI202205

TYPE B:REFER ILLUST.

77259DHOSE, FUEL, NO.1

main77259-33080supersedes 77259-33080iAXZH10..IND202209-202503

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33110iAXZA10,AXZH10,GSZ10,MXZA10202108

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33080iAXZA10,AXZH10,GSZ10,MXZA10202108

77281ACLAMP, FUEL FILLER PIPE

main77281-33050supersedes 77281-33070iAXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND202108

TAIWAN SPEC

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-30110iAXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND202108

TAIWAN SPEC

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iGSZ10..EUR201806-202107

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

77310ACAP ASSY, FUEL TANK

main77300-11010iAXZH10..CHI202008-202108

main77300-12020iAXZA10,AXZH10,MXZA10..CHI201806-202008

main77300-33080iMXZA10..CHI202108

main77300-48020supersedes 77300-33080iAXZH10..EUR202108

TAIWAN SPEC

main77300-33040iAXZH10..LHD..EUR202108

BRAZIL SPEC

77316GASKET, FUEL TANK CAP

main77316-52040supersedes 77316-75020iASZ10,GSZ10;AXZA10..ARL,EUR,GCC,GEN;AXZH10..ARL,GCC,GEN,IND201806-202110

main77316-75020supersedes 77316-52040iAXZH10..EUR201807-202108

77391RING, FUEL INLET BOX

main77391-12020iAXZA10,AXZH10,GSZ10,MXZA10202108

77391ARING, FUEL INLET BOX

main77391-20040iASZ10,AXZA10,AXZH10,GSZ10,MXZA10201806-201912

main77391-33060iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10202001-202110

77512CBRACKET, FUEL TANK

main77512-35140×3iAXZH10202108

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33150iASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-202108

main77601-33170iAXZA10,GSZ10,MXZA10..EUR202108

main77601-33180iAXZH10201807-202110

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33160iAXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN202108

main77602-33180iASZ10,AXZA10,GSZ10..EUR201806-202108

main77602-33190iAXZH10202108

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iAXZA10,AXZH10,GSZ10,MXZA10202108

77641APROTECTOR, FUEL TANK, NO.1

main77606-33030iAXZH10202108

main77641-33030iASZ10,AXZA10,GSZ10,MXZA10201806-202108

77681SEAT, FUEL TANK BAND, RH

main77682-47020iAXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-202108

77682SEAT, FUEL TANK BAND, LH

main77682-75010iAXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN202108

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-33070iGSZ10..EUR201806-202107

main77754-33080iAXZH10..ARL,EUR,GCC,GEN,IND202108

TAIWAN SPEC

77785HARNESS, FUEL PUMP

main77785-33140iAXZA10,MXZA10..ARL,EUR,GCC,GEN202112

main77785-33150iGSZ10202108

main77785-33180supersedes 77785-42070iAXZH10..ARL,EUR,GCC,GEN,IND202108

TAIWAN SPEC

main77785-72020supersedes 77785-33140iASZ10..CHI201907-202108

main77785-33190supersedes 77785-42070iAXZH10..CHI201807-202001

BEIJING SPEC

8401

9011908D17

main90119-08D17

9030108019

main90301-08019

9046022002

main90460-22002

9046040007

main90460-40007

9046050008

main90460-50008

9046712056

main90467-12056

91626B0614

main91626-B0614

9613641501

main96136-41501

49 parts on this diagram · 19 diagrams in section
